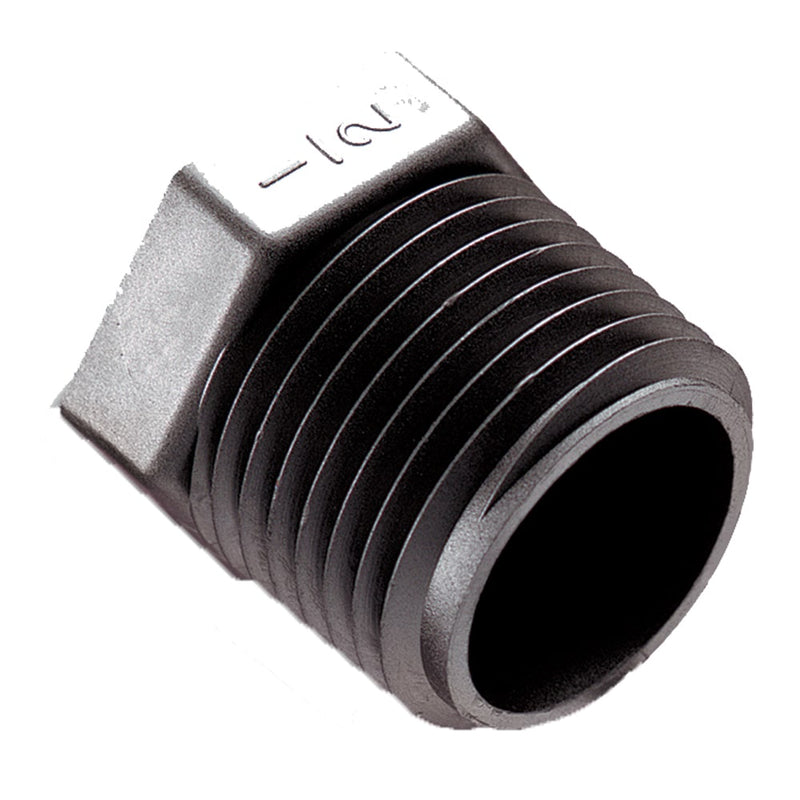

318P-12PP by Parker | Pipe Fitting | 3/4" Male NPT Pipe Thread | 1-1/8" Hex | .86" Length | Plug | Black | Polypropylene

Save $0.06

$0.65

$0.65 - $0.65

$0.65

$0.59

$0.59 - $0.59

$0.59

by Parker Hannifin
Par-Barb® Fittings:Hex Plug 318P

Quantity

Specifications for Variant SKU: 318P-12PP Parker
Brand:	Par-Barb®
Series:	318P Series
Shape (Orientation):	No Orientation
Material(s):	Polypropylene
Special Properties:	Water and Beverage

Product Features:	Available in black polypropylene and white nylon FDA compliant material NSF/ANSI 51 Uniprene washer Up to 1 1/2” sizes
Markets:	Water Beverage Dispensing Bottling Semi-Conductor
Applications:	Water Beverages Cooling Systems Vacuum
Pressure Range:	Up to 125 PSI (8.6 bar)
Temperature Range:	Nylon: -40° to +200° F (-40° to +93.3° C) Polypropylene: 0° to +212° F (-12.2° to +100° C)
Compatible Tubing:	Vinyl Polyurethane Rubber Hose


White Nylon Part Number	Black Polypropylene Part Number	NPT Pipe Thread	Hex (C)	L
318P-2N	318P-2PP	1/8"	7/16"	.62"
318P-4N	318P-4PP	1/4"	9/16"	.75"
318P-6N	318P-6PP	3/8"	11/16"	.74"
318P-8N	318P-8PP	1/2"	7/8"	.87"
318P-12N	318P-12PP	3/4"	1-1/8"	.86"
318P-16N	-	1"	1-3/8"	1.05"
