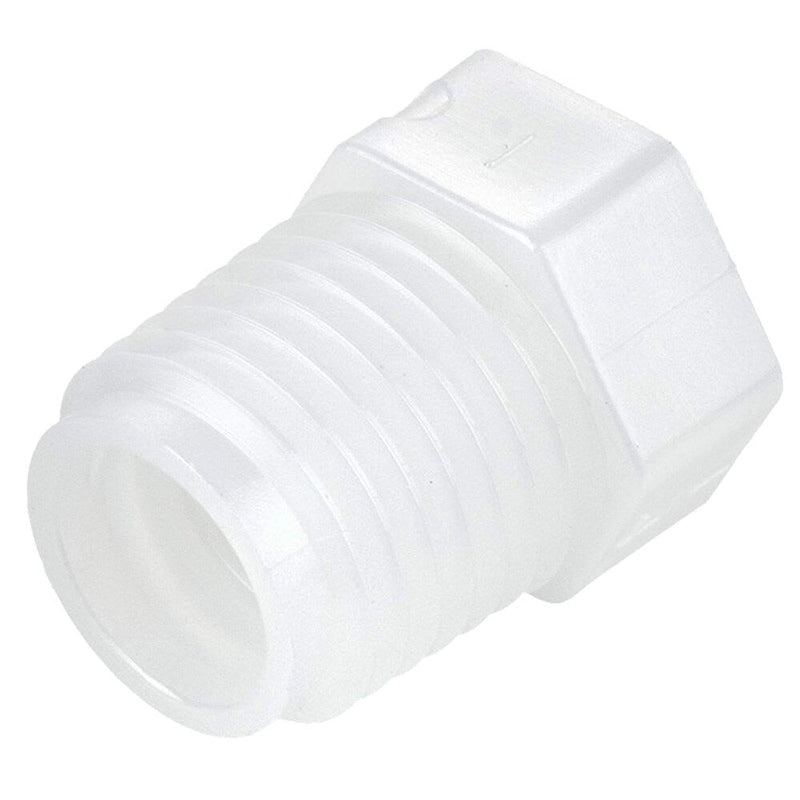

318P-2N by Parker | Pipe Fitting | 1/8" Male NPT Pipe Thread | 7/16" Hex | .62" Length | Plug | White | Nylon

Save $0.05

$0.46

$0.46 - $0.46

$0.46

$0.41

$0.41 - $0.41

$0.41

by Parker Hannifin
Par-Barb® Fittings:Hex Plug 318P

Quantity

Specifications for Variant SKU: 318P-2N Parker
Brand:	Par-Barb®
Series:	318P Series
Shape (Orientation):	No Orientation
Material(s):	Nylon
Special Properties:	Water and Beverage

Product Features:	Available in black polypropylene and white nylon FDA compliant material NSF/ANSI 51 Uniprene washer Up to 1 1/2” sizes
Markets:	Water Beverage Dispensing Bottling Semi-Conductor
Applications:	Water Beverages Cooling Systems Vacuum
Pressure Range:	Up to 125 PSI (8.6 bar)
Temperature Range:	Nylon: -40° to +200° F (-40° to +93.3° C) Polypropylene: 0° to +212° F (-12.2° to +100° C)
Compatible Tubing:	Vinyl Polyurethane Rubber Hose


White Nylon Part Number	Black Polypropylene Part Number	NPT Pipe Thread	Hex (C)	L
318P-2N	318P-2PP	1/8"	7/16"	.62"
318P-4N	318P-4PP	1/4"	9/16"	.75"
318P-6N	318P-6PP	3/8"	11/16"	.74"
318P-8N	318P-8PP	1/2"	7/8"	.87"
318P-12N	318P-12PP	3/4"	1-1/8"	.86"
318P-16N	-	1"	1-3/8"	1.05"

Parker Fluid System Connectors Division

Parker Fluid System Connectors Division delivers quality and service from design to delivery. Their engineers leverage advanced technology to create prototypes, refine designs, and improve manufacturing efficiencies, offering tailored solutions. ISO 9001 certified and focused on sustainability, they utilize recyclable materials and a brass chip recycling program to protect the environment and control costs. Flexible assembly, packaging, and shipping systems support diverse needs, including kitting and custom labeling, ensuring high-quality products and outstanding customer support.

Shop Parts by Parker Fluid System Connectors Division
