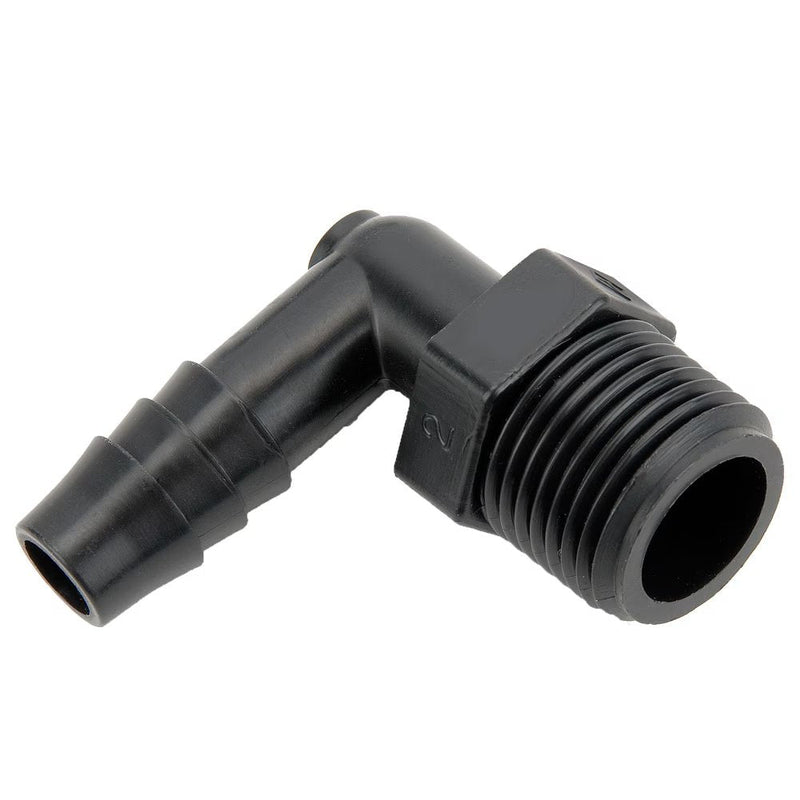

329HB-3-2PP by Parker | Threaded Fitting | 3/16" Barb x 1/8" Male NPT Pipe Thread | 7/16" Hex | 90° Elbow | Black | Polypropylene

329HB-3-2PP by Parker | Threaded Fitting | 3/16" Barb x 1/8" Male NPT Pipe Thread | 7/16" Hex | 90° Elbow | Black | Polypropylene

Save $0.53 Save $0.53
$1.32
$1.32 - $1.32
$1.32
$0.79
$0.79 - $0.79
$0.79

by Parker Hannifin
Par-Barb® Fittings:Male Elbow 329HB
Specifications for Variant SKU: 329HB-3-2PP Parker
Brand: Par-Barb®
Series: 329HB Series
Shape (Orientation): 90° Elbow
Material(s): Polypropylene
Special Properties: Water and Beverage
Product Features:
  • Available in black polypropylene and white nylon
  • FDA compliant material
  • NSF/ANSI 51
  • Uniprene washer
  • Up to 1 1/2” sizes
Markets:
  • Water
  • Beverage Dispensing
  • Bottling
  • Semi-Conductor
Applications:
  • Water
  • Beverages
  • Cooling Systems
  • Vacuum
Pressure Range: Up to 125 PSI (8.6 bar)
Temperature Range: Nylon: -40° to +200° F (-40° to +93.3° C)
Polypropylene: 0° to +212° F (-12.2° to +100° C)
Compatible Tubing:
  • Vinyl
  • Polyurethane
  • Rubber Hose
White Nylon Part Number Black Polypropylene Part Number Tube Or Hose ID NPT Pipe Thread OD Hex (C) M N Flow Diameter (D)
329HB-3-2N 329HB-3-2PP 3/16" 1/8" .25" 7/16" .76" 1.06" .12"
329HB-3-4N - 3/16" 1/4" .25" 9/16" .76" 1.17" .12"
329HB-4-2N 329HB-4-2PP 1/4" 1/8" .31" 7/16" 1.18" 1.04" .16"
329HB-4-4N 329HB-4-4PP 1/4" 1/4" .31" 9/16" 1.18" 1.16" .22"
329HB-4-6N 329HB-4-6PP 1/4" 3/8" .31" 11/16" 1.18" 1.17" .15"
329HB-4-8N 329HB-4-8PP 1/416" 1/2" .32" 7/8" 1.18" 1.30" .15"
329HB-6-2N 329HB-6-2PP 3/8" 1/8" .43" 7/16" 1.18" 1.05" .25"
329HB-6-4N 329HB-6-4PP 3/8" 1/4" .43" 9/16" 1.18" 1.16" .25"
329HB-6-6N 329HB-6-6PP 3/8" 3/8" .43" 11/16" 1.17" 1.17" .25"
329HB-6-8N 329HB-6-8PP 3/8" 1/2" .43" 7/8" 1.18" 1.28" .25"
329HB-8-4N 329HB-8-4PP 1/2" 1/4" .55" 9/16" 1.27" 1.16" .37"
329HB-8-6N 329HB-8-6PP 1/2" 3/8" .56" 11/16" 1.26" 1.16" .37"
329HB-8-8N 329HB-8-8PP 1/2" 1/2" .55" 7/8" 1.25" 1.29" .37"
329HB-8-12N 329HB-8-12PP 1/2" 3/4" .55" 1-1/8" 1.30" 1.89" .37"
329HB-10-6N - 5/8" 3/8" .67" 11/16" 1.277" 1.18" .47"
329HB-10-8N - 5/8" 1/2" .68" 7/8" 1.30" 1.73" .48"
329HB-10-12N 329HB-10-12PP 5/8" 3/4" .69" 1-1/8" 1.32" 1.92" .49"
329HB-12-8N 329HB-12-8PP 3/4" 1/2" .81" 7/8" 1.51" 1.74" .58"
329HB-12-12N 329HB-12-12PP 3/4" 3/4" .81" 1-1/8" 1.50" 1.91" .58"
