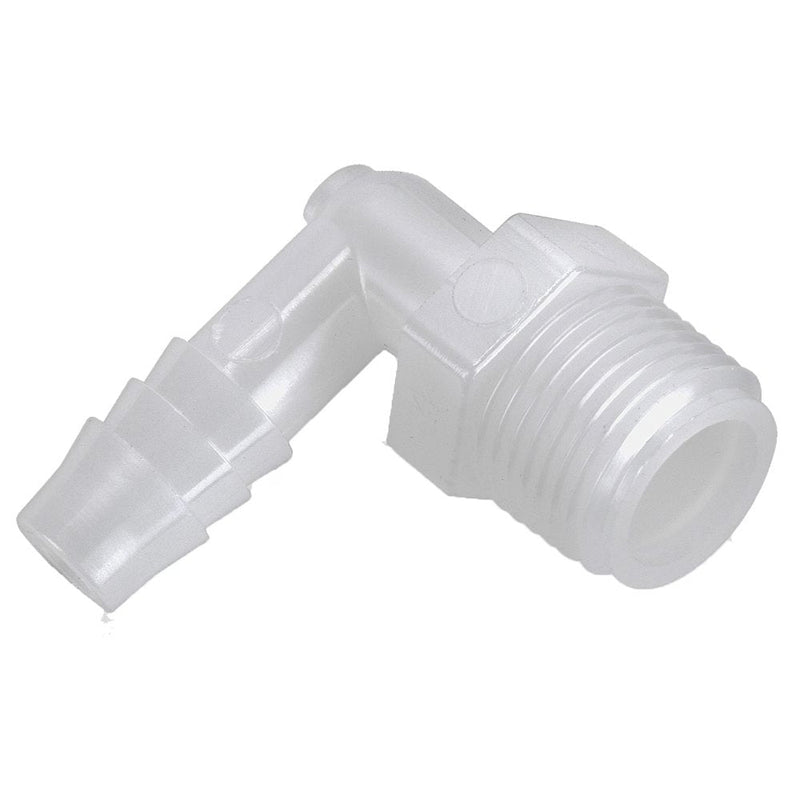

329HB-3-4N by Parker | Threaded Fitting | 3/16" Barb x 1/4" Male NPT Pipe Thread | 9/16" Hex | 90° Elbow | White | Nylon

Save $1.25

$2.13

$2.13 - $2.13

$2.13

$0.88

$0.88 - $0.88

$0.88

by Parker Hannifin
Par-Barb® Fittings:Male Elbow 329HB

Specifications for Variant SKU: 329HB-3-4N Parker
Brand:	Par-Barb®
Series:	329HB Series
Shape (Orientation):	90° Elbow
Material(s):	Nylon
Special Properties:	Water and Beverage

Product Features:	Available in black polypropylene and white nylon FDA compliant material NSF/ANSI 51 Uniprene washer Up to 1 1/2” sizes
Markets:	Water Beverage Dispensing Bottling Semi-Conductor
Applications:	Water Beverages Cooling Systems Vacuum
Pressure Range:	Up to 125 PSI (8.6 bar)
Temperature Range:	Nylon: -40° to +200° F (-40° to +93.3° C) Polypropylene: 0° to +212° F (-12.2° to +100° C)
Compatible Tubing:	Vinyl Polyurethane Rubber Hose


White Nylon Part Number	Black Polypropylene Part Number	Tube Or Hose ID	NPT Pipe Thread	OD	Hex (C)	M	N	Flow Diameter (D)
329HB-3-2N	329HB-3-2PP	3/16"	1/8"	.25"	7/16"	.76"	1.06"	.12"
329HB-3-4N	-	3/16"	1/4"	.25"	9/16"	.76"	1.17"	.12"
329HB-4-2N	329HB-4-2PP	1/4"	1/8"	.31"	7/16"	1.18"	1.04"	.16"
329HB-4-4N	329HB-4-4PP	1/4"	1/4"	.31"	9/16"	1.18"	1.16"	.22"
329HB-4-6N	329HB-4-6PP	1/4"	3/8"	.31"	11/16"	1.18"	1.17"	.15"
329HB-4-8N	329HB-4-8PP	1/416"	1/2"	.32"	7/8"	1.18"	1.30"	.15"
329HB-6-2N	329HB-6-2PP	3/8"	1/8"	.43"	7/16"	1.18"	1.05"	.25"
329HB-6-4N	329HB-6-4PP	3/8"	1/4"	.43"	9/16"	1.18"	1.16"	.25"
329HB-6-6N	329HB-6-6PP	3/8"	3/8"	.43"	11/16"	1.17"	1.17"	.25"
329HB-6-8N	329HB-6-8PP	3/8"	1/2"	.43"	7/8"	1.18"	1.28"	.25"
329HB-8-4N	329HB-8-4PP	1/2"	1/4"	.55"	9/16"	1.27"	1.16"	.37"
329HB-8-6N	329HB-8-6PP	1/2"	3/8"	.56"	11/16"	1.26"	1.16"	.37"
329HB-8-8N	329HB-8-8PP	1/2"	1/2"	.55"	7/8"	1.25"	1.29"	.37"
329HB-8-12N	329HB-8-12PP	1/2"	3/4"	.55"	1-1/8"	1.30"	1.89"	.37"
329HB-10-6N	-	5/8"	3/8"	.67"	11/16"	1.277"	1.18"	.47"
329HB-10-8N	-	5/8"	1/2"	.68"	7/8"	1.30"	1.73"	.48"
329HB-10-12N	329HB-10-12PP	5/8"	3/4"	.69"	1-1/8"	1.32"	1.92"	.49"
329HB-12-8N	329HB-12-8PP	3/4"	1/2"	.81"	7/8"	1.51"	1.74"	.58"
329HB-12-12N	329HB-12-12PP	3/4"	3/4"	.81"	1-1/8"	1.50"	1.91"	.58"
