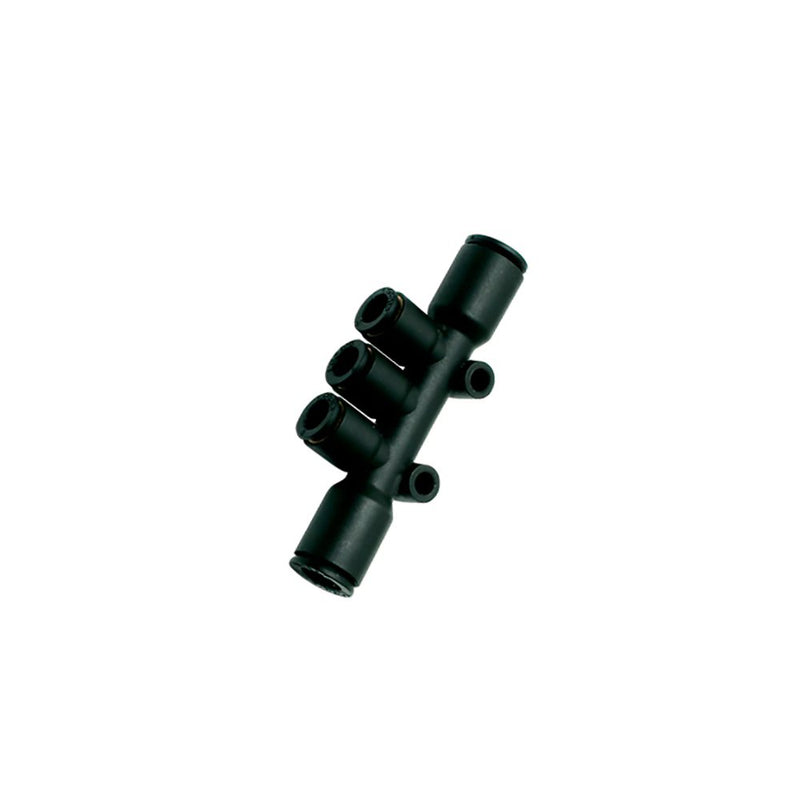

3304 08 06 by Parker | Legris Multiple Fittings | 8 mm Push-to-Connect x 6 mm Push-to-Connect | 74 mm Length | Multiple Tee | Polymer | Pack of 10

Save $21.27

$167.54

$167.54 - $167.54

$167.54

$146.27

$146.27 - $146.27

$146.27

by Parker Hannifin
LF 3000® Push-In Fittings / Multiple Fittings:3304 Multiple Tee

Package Quantity: 10 Units

Specifications for Variant SKU: 3304 08 06 Parker \| 10 \|
Brand:	LF 3000®
Series:	3304 Series
Shape (Orientation):	Manifold
Material(s):	Stainless Steel, Polymer
Seal Material(s):	Buna-N/Nitrile Rubber
Special Properties:	Silicone Free, Lightweight

Technical Characteristics:	Compatible Fluids: Compressed air Working Pressure: Vacuum to 20 bar Working Temperature: -20°C to +80°C
Advantages:	Robust, lightweight, compact to build your pneumatic circuits Full flow connections to optimize flow rates Use in vacuum as well as in compressed air Customized products upon request. Please, contact us
Regulations:	ISO 14743 PED RoHS REACH
Component Materials:	Gripping Ring: Stainless Steel Body: Technical Polymer BSPP Thread Sealing: NBR O-Ring BSPT/NPT: Pre-coating Adaptor: Nickel-Plated Brass Sealing Ring: NBR Release Button Technical Polymer


Part Number	ØD1	ØD2	H	L	L/2	N	ØT	Kg
3304 06 04	6 mm	4 mm	24.5 mm	34 mm	37 mm	11.5 mm	4.2 mm	.015 Kg
3304 08 04	8 mm	4 mm	24.5 mm	34 mm	37 mm	11.5 mm	4.2 mm	.012 Kg
3304 08 06	6 mm	4 mm	24.5 mm	34 mm	37 mm	11.5 mm	4.2 mm	.015 Kg
3304 10 06	10 mm	6 mm	36 mm	44 mm	40.5 mm	14.5 mm	4.2 mm	.019 Kg
3304 10 08	10 mm	8 mm	36 mm	44 mm	40.5 mm	15.5 mm	4.2 mm	.015 Kg
