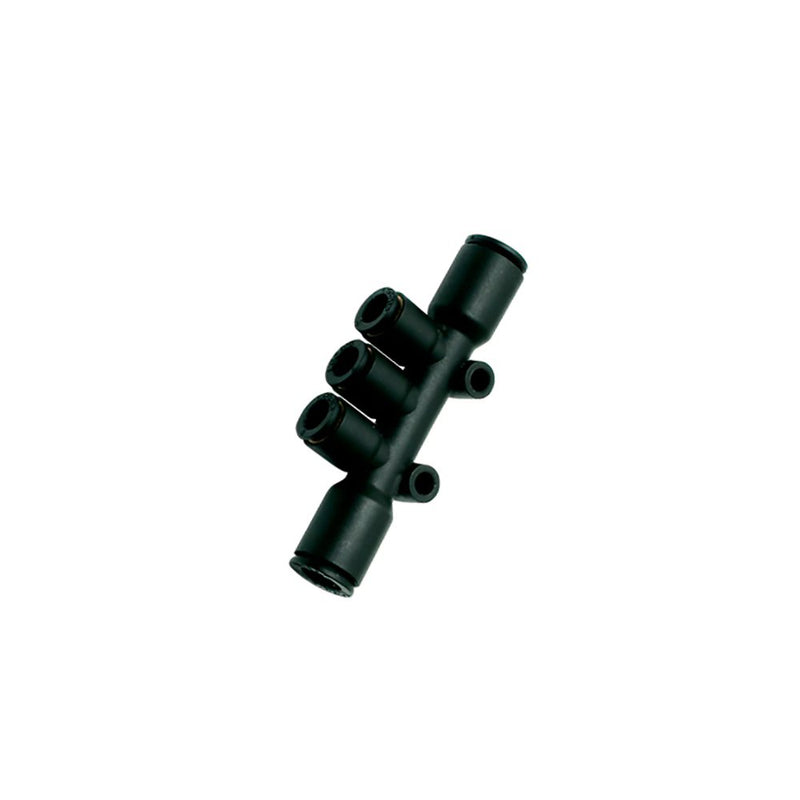

3304 10 06 by Parker | Legris Multiple Fittings | 10 mm Push-to-Connect x 6 mm Push-to-Connect | 81 mm Length | Multiple Tee | Polymer

3304 10 06 by Parker | Legris Multiple Fittings | 10 mm Push-to-Connect x 6 mm Push-to-Connect | 81 mm Length | Multiple Tee | Polymer | Pack of 10

Save $31.26 Save $31.26
$263.79
$263.79 - $263.79
$263.79
$232.53
$232.53 - $232.53
$232.53

by Parker Hannifin
LF 3000® Push-In Fittings / Multiple Fittings:3304 Multiple Tee

Package Quantity: 10 Units

Specifications for Variant SKU: 3304 10 06 Parker | 10 |
Brand: LF 3000®
Series: 3304 Series
Shape (Orientation): Manifold
Material(s): Stainless Steel, Polymer
Seal Material(s): Buna-N/Nitrile Rubber
Special Properties: Silicone Free, Lightweight
Technical Characteristics:
  • Compatible Fluids: Compressed air
  • Working Pressure: Vacuum to 20 bar
  • Working Temperature: -20°C to +80°C
Advantages:
  • Robust, lightweight, compact to build your pneumatic circuits
  • Full flow connections to optimize flow rates
  • Use in vacuum as well as in compressed air
  • Customized products upon request. Please, contact us
Regulations:
  • ISO 14743
  • PED
  • RoHS
  • REACH
Component Materials:
  • Gripping Ring: Stainless Steel
  • Body: Technical Polymer
  • BSPP Thread Sealing: NBR O-Ring
  • BSPT/NPT: Pre-coating
  • Adaptor: Nickel-Plated Brass
  • Sealing Ring: NBR
  • Release Button Technical Polymer
Part Number ØD1 ØD2 H L L/2 N ØT Kg
3304 06 04 6 mm 4 mm 24.5 mm 34 mm 37 mm 11.5 mm 4.2 mm .015 Kg
3304 08 04 8 mm 4 mm 24.5 mm 34 mm 37 mm 11.5 mm 4.2 mm .012 Kg
3304 08 06 6 mm 4 mm 24.5 mm 34 mm 37 mm 11.5 mm 4.2 mm .015 Kg
3304 10 06 10 mm 6 mm 36 mm 44 mm 40.5 mm 14.5 mm 4.2 mm .019 Kg
3304 10 08 10 mm 8 mm 36 mm 44 mm 40.5 mm 15.5 mm 4.2 mm .015 Kg
