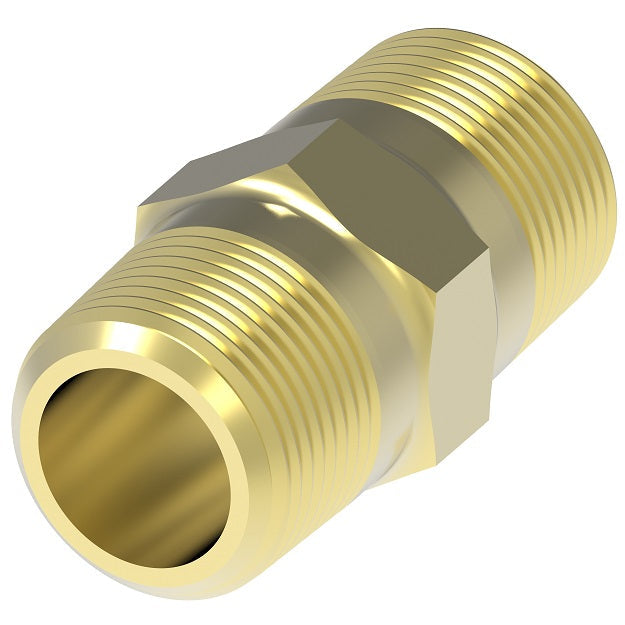

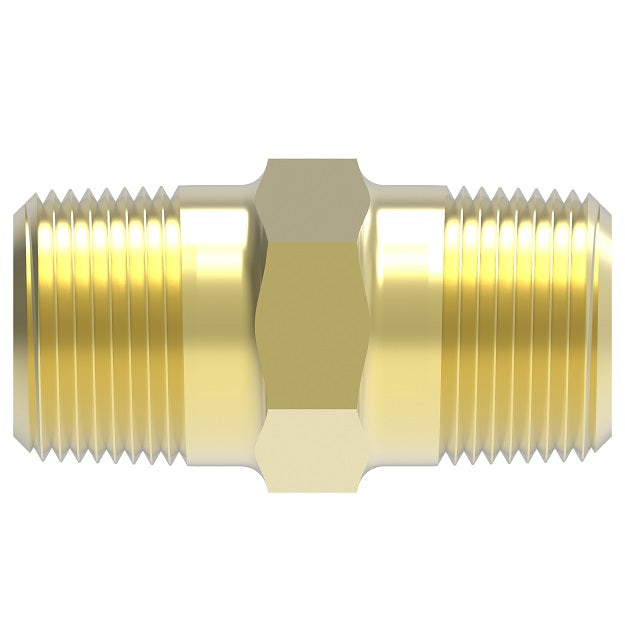

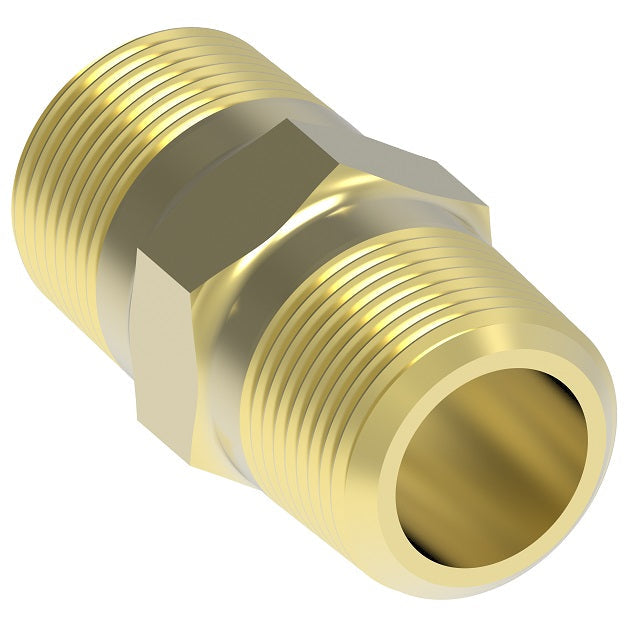

3325X4X2 by Danfoss | Pipe Adapter | Hex Nipple | 1/4" Male NPTF x 1/8" Male NPTF | Brass

Name: 3325X4X2 by Danfoss | Pipe Adapter | Hex Nipple | 1/4" Male NPTF x 1/8" Male NPTF | Brass
Brand: Danfoss/Eaton
SKU: 3325X4X2 Danfoss
Price: 2.97 USD
Availability: InStock

$2.97 - $2.97

$2.97

$2.97 - $2.97

$2.97

Aeroquip® by Danfoss
Pipe Adapter - Hex Nipple

Quantity

Specifications for Variant SKU: 3325X4X2 Danfoss
Shape (Orientation):	Straight
Ends Configuration:	1/4in Male NPTF, 1/8in Male NPTF
Material(s):	Brass

Applications:
Grease, refrigeration, instrumentation and hydraulic systems.
Advantages:
Dryseal pipe threads (NPTF). Fair Vibration Resistance.
Used With:
Brass, bronze and iron pipe.
Material:
CA360 Brass.
Operating Pressure:
Operating pressure up to 1200 psi.
Temperature Range:
-65°F to +250°F (-53°C to +121°C).
Conformance:
Ref. SAE No. 130137 Listed by Underwriters Laboratories (available on special order) for fuel equipment, refrigeration and gas. Meets specifications and standards of ASA, ASME and SAE.

Pipe Size	1/16"	1/8"	1/4"	3/8"	1/2"	3/4"
Thread Size	1/16-27	1/8-27	1/4-18	3/8-18	1/2-14	3/4-14


Brass Part Number	Brass with Sealant Part Number	Male Pipe Thread A	Male Pipe Thread A1	Hex C	D	D1	L
3325X1	-	1/16"	1/16"	3/8"	0.125"	0.125"	0.978"
3325X2X1	-	1/8"	1/16"	7/16"	0.230"	0.156"	0.955"
3325X2	-	1/8"	1/8"	7/16"	0.219"	0.219"	0.97"
3325X4X2	-	1/4"	1/8"	9/16"	0.219"	0.219"*	1.19"
3325X4	3325X4Z	1/4"	1/4"	9/16"	0.312"	0.312"	1.38"
3325X6X2	-	3/8"	1/8"	11/16"	0.219"	0.438"	1.22"
3325X6X4	-	3/8"	1/4"	11/16"	0.312"	0.438"	1.41"
3325X6	-	3/8"	3/8"	11/16"	0.438"	0.438"	1.41"
3325X8	3325X8Z	1/2"	1/2"	7/8"	0.562"	0.562"	1.81"
3325X12	-	3/4"	3/4"	1-1/16"	0.750"	0.750"	1.94"

* Optional .312 Counterbore on 1/4" side
