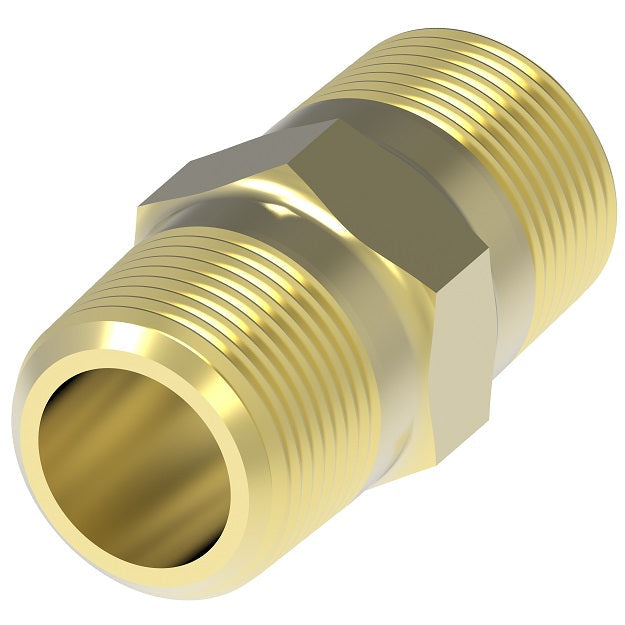

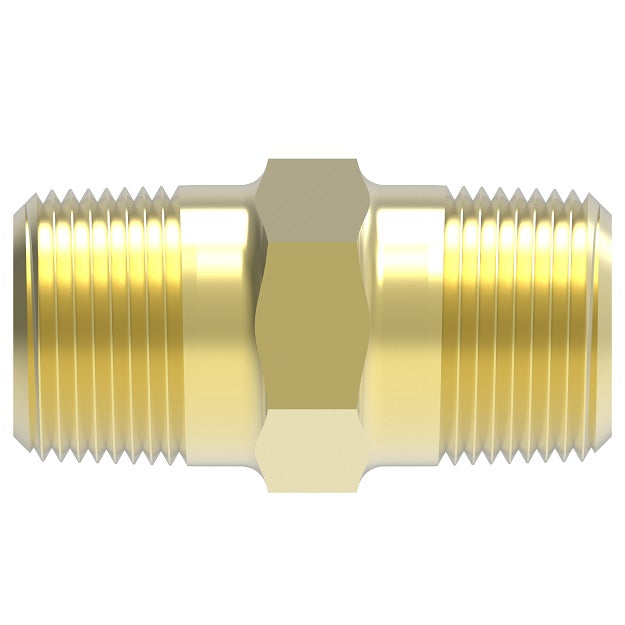

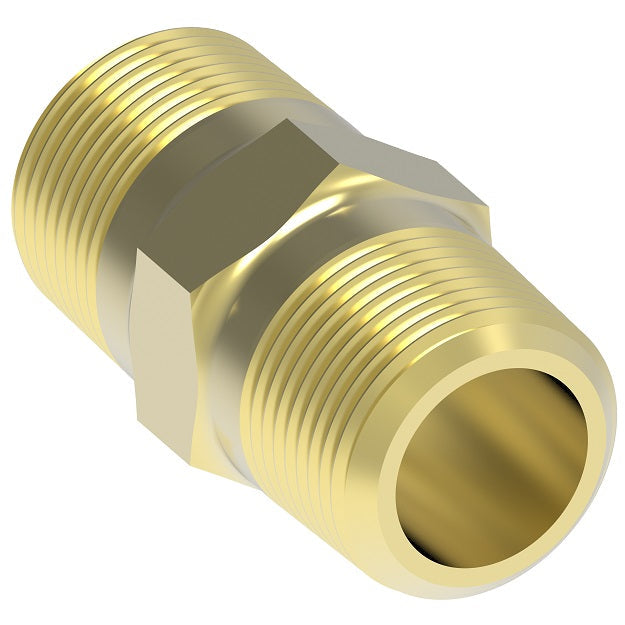

3325X6 by Danfoss | Pipe Adapter | Hex Nipple | 3/8" Male NPTF x 3/8" Male NPTF | Brass
3325X6 by Danfoss | Pipe Adapter | Hex Nipple | 3/8" Male NPTF x 3/8" Male NPTF | Brass
3325X6 by Danfoss | Pipe Adapter | Hex Nipple | 3/8" Male NPTF x 3/8" Male NPTF | Brass
3325X6 by Danfoss | Pipe Adapter | Hex Nipple | 3/8" Male NPTF x 3/8" Male NPTF | Brass

3325X6 by Danfoss | Pipe Adapter | Hex Nipple | 3/8" Male NPTF x 3/8" Male NPTF | Brass

$3.57 - $3.57
$3.57
$3.57 - $3.57
$3.57

Aeroquip® by Danfoss
Pipe Adapter - Hex Nipple
Specifications for Variant SKU: 3325X6 Danfoss
Shape (Orientation): Straight
Ends Configuration: 3/8in Male NPTF, 3/8in Male NPTF, Some Ends Match
Material(s): Brass
Applications:
  • Grease, refrigeration, instrumentation and hydraulic systems.
Advantages:
  • Dryseal pipe threads (NPTF).
  • Fair Vibration Resistance.
Used With:
  • Brass, bronze and iron pipe.
Material:
  • CA360 Brass.
Operating Pressure:
  • Operating pressure up to 1200 psi.
Temperature Range:
  • -65°F to +250°F
    (-53°C to +121°C).
Conformance:
  • Ref. SAE No. 130137
  • Listed by Underwriters Laboratories (available on special order) for fuel equipment, refrigeration and gas. Meets specifications and standards of ASA, ASME and SAE.
Pipe Size 1/16" 1/8" 1/4" 3/8" 1/2" 3/4"
Thread Size 1/16-27 1/8-27 1/4-18 3/8-18 1/2-14 3/4-14
Brass
Part Number 		Brass
with Sealant
Part Number 		Male Pipe
Thread
A		 Male Pipe
Thread
A1		 Hex
C		 D D1 L
3325X1 - 1/16" 1/16" 3/8" 0.125" 0.125" 0.978"
3325X2X1 - 1/8" 1/16" 7/16" 0.230" 0.156" 0.955"
3325X2 - 1/8" 1/8" 7/16" 0.219" 0.219" 0.97"
3325X4X2 - 1/4" 1/8" 9/16" 0.219" 0.219"* 1.19"
3325X4 3325X4Z 1/4" 1/4" 9/16" 0.312" 0.312" 1.38"
3325X6X2 - 3/8" 1/8" 11/16" 0.219" 0.438" 1.22"
3325X6X4 - 3/8" 1/4" 11/16" 0.312" 0.438" 1.41"
3325X6 - 3/8" 3/8" 11/16" 0.438" 0.438" 1.41"
3325X8 3325X8Z 1/2" 1/2" 7/8" 0.562" 0.562" 1.81"
3325X12 - 3/4" 3/4" 1-1/16" 0.750" 0.750" 1.94"

* Optional .312 Counterbore on 1/4" side
