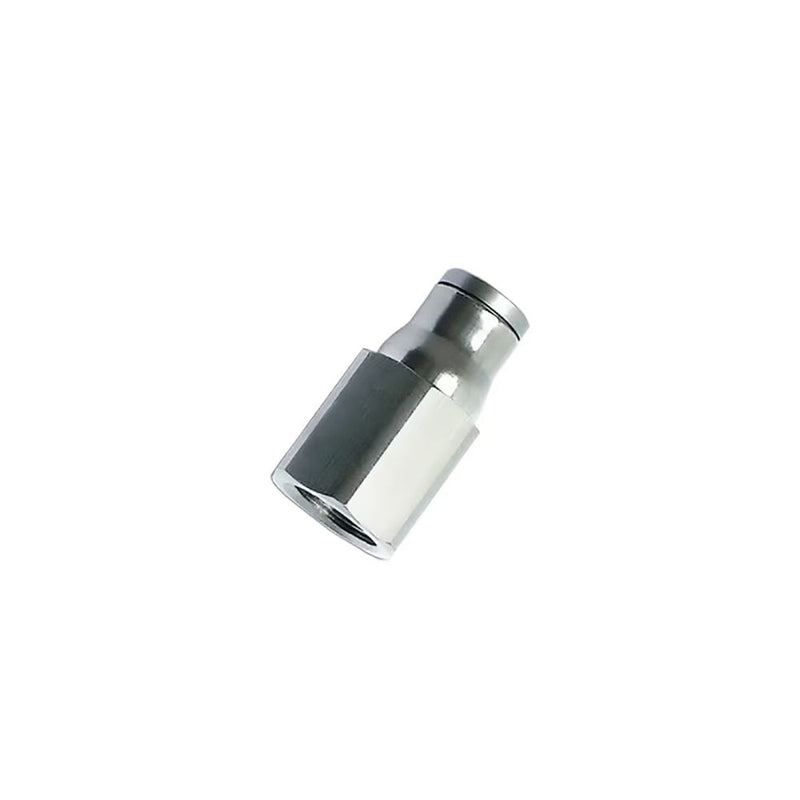

3614 08 10 by Parker | Legris Stud Fitting | 8 mm Tube Size x 1/8" Female BSPP Thread | 28.5 mm Length | Straight | Nickel-Plated Brass

3614 08 10 by Parker | Legris Stud Fitting | 8 mm Tube Size x 1/8" Female BSPP Thread | 28.5 mm Length | Straight | Nickel-Plated Brass | Pack of 10

Save $64.78 Save $64.78
$161.95
$161.95 - $161.95
$161.95
$97.17
$97.17 - $97.17
$97.17

by Parker Hannifin
LF 3000® Push-In Fittings / Stud Fittings:3614 Stud Fitting, Female BSPP and Metric Thread

Package Quantity: 10 Units

Specifications for Variant SKU: 3614 08 10 Parker | 10 |
Series: 3614 Series
Shape (Orientation): Straight
Material(s): Nickel-Plated Brass
Seal Material(s): FKM
Special Properties: Food Grade, Silicone Free
Technical Characteristics:
  • Suitable Fluids: Compressed air, grease, lubricant, water
  • Working Pressure: Vacuum to 30 bar (20 bar: 3699, 3609, 3639)
  • Working Temperature: -25°C to +150°C
Advantages:
  • Wide range of working temperatures: up to +150°C
  • Wide range of working pressures: from vacuum up to 30 bar
  • Materials conform to FDA standards
  • Extended chemical compatibility
Regulations:
  • RoHS
  • REACH
  • PED
Component Materials:
  • Body: FDA chemical nickel-plated brass
  • Adapter: FDA Chemical nickel-plated brass
  • Collet: FDA Chemical nickel-plated brass
  • Washer: Stainless Steel 316L
  • O-Ring: Fluoroelastomer (FKM)
Part Number ØD C E F H Kg
3614 04 19 4 mm M5x0.8 5 mm 10 mm 22 mm .009 Kg
3614 04 10 4 mm 1/8" 7.5 mm 14 mm 25 mm .016 Kg
3614 04 13 4 mm 1/4" 11 mm 17 mm 29 mm .026 Kg
3614 06 10 6 mm 1/8" 7.5 mm 14 mm 27.5 mm .019 Kg
3614 06 13 6 mm 1/4" 11 mm 17 mm 31.5 mm .028 Kg
3614 08 10 8 mm 1/8" 9.5 mm 15 mm 28.5 mm .022 Kg
3614 08 13 8 mm 1/4" 13.5 mm 17 mm 32.5 mm .028 Kg
3614 10 17 10 mm 3/8" 14 mm 22 mm 38 mm .052 Kg
3614 12 17 12 mm 3/8" 14 mm 22 mm 39 mm .055 Kg
3614 12 21 12 mm 1/2" 18.5 mm 24 mm 43.5 mm .062 Kg
