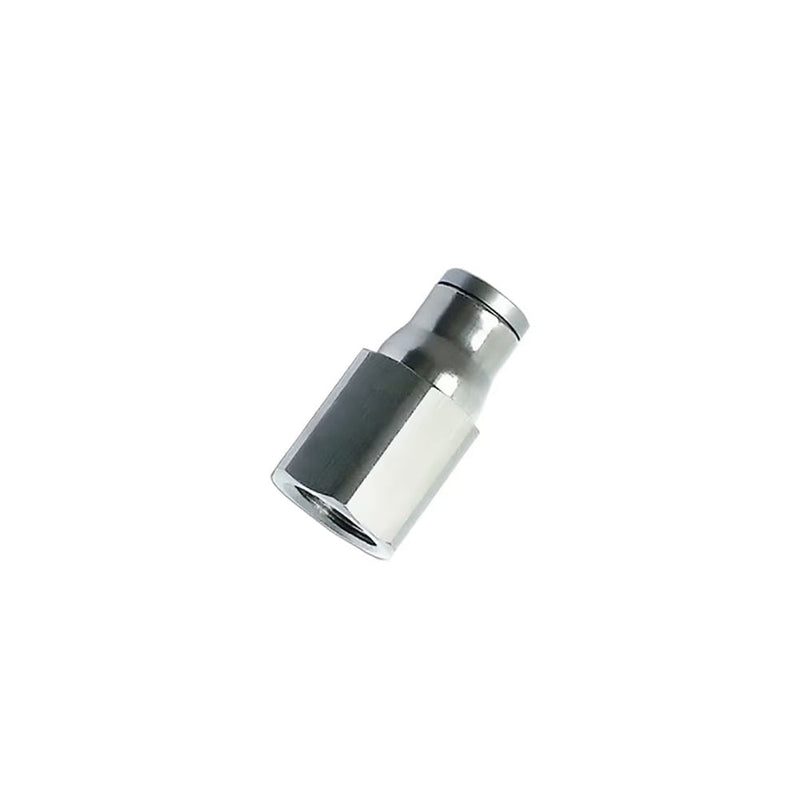

3614 08 13 by Parker | Legris Stud Fitting | 8 mm Tube Size x 1/4" Female BSPP Thread | 32.5 mm Length | Straight | Nickel-Plated Brass | Pack of 10

Save $16.90

$125.17

$125.17 - $125.17

$125.17

$108.27

$108.27 - $108.27

$108.27

by Parker Hannifin
LF 3000® Push-In Fittings / Stud Fittings:3614 Stud Fitting, Female BSPP and Metric Thread

Package Quantity: 10 Units

Specifications for Variant SKU: 3614 08 13 Parker \| 10 \|
Series:	3614 Series
Shape (Orientation):	Straight
Material(s):	Nickel-Plated Brass
Seal Material(s):	FKM
Special Properties:	Food Grade, Silicone Free

Technical Characteristics:	Suitable Fluids: Compressed air, grease, lubricant, water Working Pressure: Vacuum to 30 bar (20 bar: 3699, 3609, 3639) Working Temperature: -25°C to +150°C
Advantages:	Wide range of working temperatures: up to +150°C Wide range of working pressures: from vacuum up to 30 bar Materials conform to FDA standards Extended chemical compatibility
Regulations:	RoHS REACH PED
Component Materials:	Body: FDA chemical nickel-plated brass Adapter: FDA Chemical nickel-plated brass Collet: FDA Chemical nickel-plated brass Washer: Stainless Steel 316L O-Ring: Fluoroelastomer (FKM)


Part Number	ØD	C	E	F	H	Kg
3614 04 19	4 mm	M5x0.8	5 mm	10 mm	22 mm	.009 Kg
3614 04 10	4 mm	1/8"	7.5 mm	14 mm	25 mm	.016 Kg
3614 04 13	4 mm	1/4"	11 mm	17 mm	29 mm	.026 Kg
3614 06 10	6 mm	1/8"	7.5 mm	14 mm	27.5 mm	.019 Kg
3614 06 13	6 mm	1/4"	11 mm	17 mm	31.5 mm	.028 Kg
3614 08 10	8 mm	1/8"	9.5 mm	15 mm	28.5 mm	.022 Kg
3614 08 13	8 mm	1/4"	13.5 mm	17 mm	32.5 mm	.028 Kg
3614 10 17	10 mm	3/8"	14 mm	22 mm	38 mm	.052 Kg
3614 12 17	12 mm	3/8"	14 mm	22 mm	39 mm	.055 Kg
3614 12 21	12 mm	1/2"	18.5 mm	24 mm	43.5 mm	.062 Kg

Parker Fluid System Connectors Division

Parker Fluid System Connectors Division delivers quality and service from design to delivery. Their engineers leverage advanced technology to create prototypes, refine designs, and improve manufacturing efficiencies, offering tailored solutions. ISO 9001 certified and focused on sustainability, they utilize recyclable materials and a brass chip recycling program to protect the environment and control costs. Flexible assembly, packaging, and shipping systems support diverse needs, including kitting and custom labeling, ensuring high-quality products and outstanding customer support.
