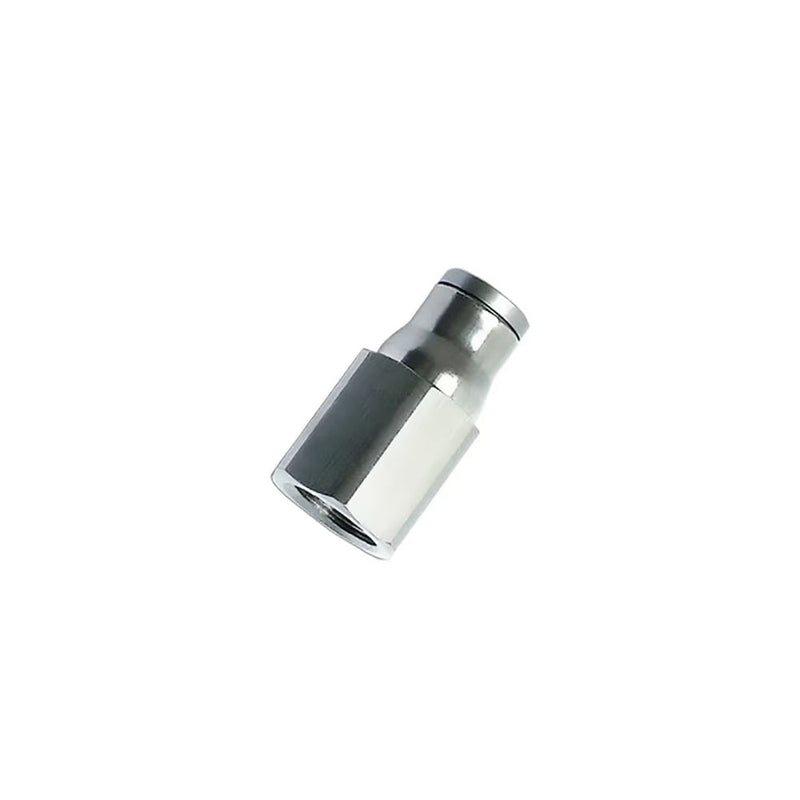

3614 12 21 by Parker | Legris Stud Fitting | 12 mm Tube Size x 1/2" Female BSPP Thread | 43.5 mm Length | Straight | Nickel-Plated Brass | Pack of 5

Save $18.19

$136.32

$136.32 - $136.32

$136.32

$118.13

$118.13 - $118.13

$118.13

by Parker Hannifin
LF 3000® Push-In Fittings / Stud Fittings:3614 Stud Fitting, Female BSPP and Metric Thread

Package Quantity: 5 Units

Specifications for Variant SKU: 3614 12 21 Parker \| 5 \|
Series:	3614 Series
Shape (Orientation):	Straight
Material(s):	Nickel-Plated Brass
Seal Material(s):	FKM
Special Properties:	Food Grade, Silicone Free

Technical Characteristics:	Suitable Fluids: Compressed air, grease, lubricant, water Working Pressure: Vacuum to 30 bar (20 bar: 3699, 3609, 3639) Working Temperature: -25°C to +150°C
Advantages:	Wide range of working temperatures: up to +150°C Wide range of working pressures: from vacuum up to 30 bar Materials conform to FDA standards Extended chemical compatibility
Regulations:	RoHS REACH PED
Component Materials:	Body: FDA chemical nickel-plated brass Adapter: FDA Chemical nickel-plated brass Collet: FDA Chemical nickel-plated brass Washer: Stainless Steel 316L O-Ring: Fluoroelastomer (FKM)


Part Number	ØD	C	E	F	H	Kg
3614 04 19	4 mm	M5x0.8	5 mm	10 mm	22 mm	.009 Kg
3614 04 10	4 mm	1/8"	7.5 mm	14 mm	25 mm	.016 Kg
3614 04 13	4 mm	1/4"	11 mm	17 mm	29 mm	.026 Kg
3614 06 10	6 mm	1/8"	7.5 mm	14 mm	27.5 mm	.019 Kg
3614 06 13	6 mm	1/4"	11 mm	17 mm	31.5 mm	.028 Kg
3614 08 10	8 mm	1/8"	9.5 mm	15 mm	28.5 mm	.022 Kg
3614 08 13	8 mm	1/4"	13.5 mm	17 mm	32.5 mm	.028 Kg
3614 10 17	10 mm	3/8"	14 mm	22 mm	38 mm	.052 Kg
3614 12 17	12 mm	3/8"	14 mm	22 mm	39 mm	.055 Kg
3614 12 21	12 mm	1/2"	18.5 mm	24 mm	43.5 mm	.062 Kg
