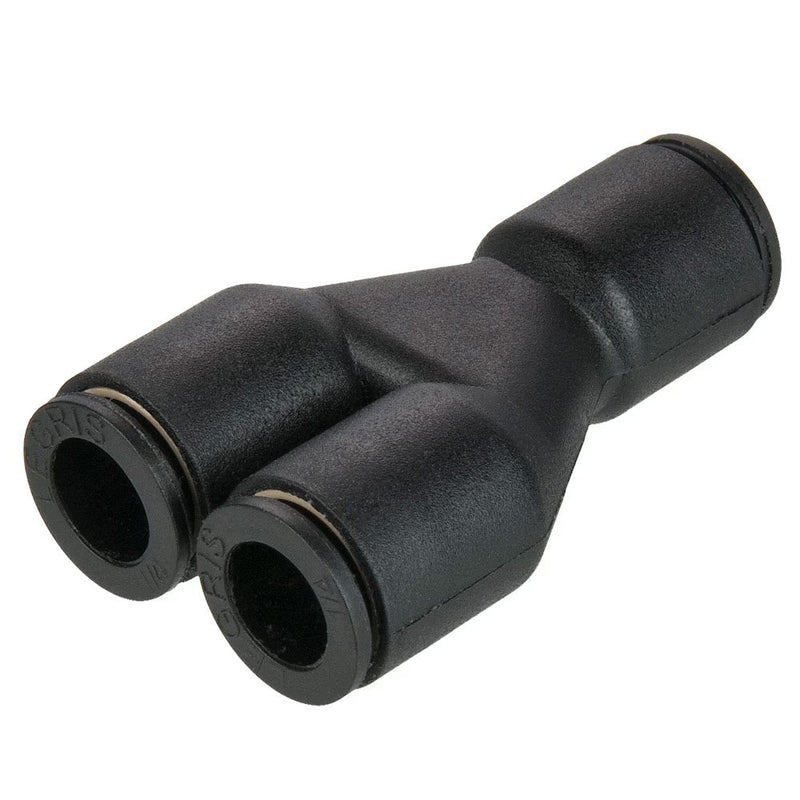

362PLPD-4M by Parker | Prestolok PLP Composite Push-to-Connect Fittings | Tube to Tube Fittings | 4mm Connector Tube Size | 30.5mm Length (L) | 3.7mm Mounting Hole Diameter | Double Y | Glass-Reinforced Nylon | Pack of 10

Save $103.63

$259.07

$259.07 - $259.07

$259.07

$155.44

$155.44 - $155.44

$155.44

by Parker Hannifin
Push-to-Connect Fittings:362PLPD Double Y Connector

Package Quantity: 10 Units

Specifications for Variant SKU: 362PLPD-4M Parker \| 10 \|
Series:	362PLPD Series
Shape (Orientation):	Y
Material(s):	Glass-Reinforced Nylon
Special Properties:	Corrosion Resistance, Chemical Resistance, Silicone Free

Product Features:	Stainless steel grab ring Glass-reinforced nylon 6.6 body Nitrile D-seal Nylon release button Corrosion and chemical resistance NPT, BSPT, BSPP, and metric threads Silicone Free
Markets:	Pneumatic Industrial Robotic Automation Printing Packaging Textile
Compatible Media:	Compressed Air Inert Gases Vacuum
Pressure Range:	Up to 290 PSI (19.9 bar) depending on tubing Up to 260 PSI (17.9 bar) depending on tubing (3/16” size only)
Temperature Range:	-4° to +175° F (-20° to +79.4° C) 5° to +155° F (-15° to +68.3° C) (3/16” size only)
Vacuum Rating:	28" Hg
Compatible Tubing:	Semi-rigid nylon Polyurethane 95 Durometer Shore A* Nylon Fluoropolymer Polyethylene


Part Number	Tube Size 1	Tube Size 2	H	L	N
362PLPD-4M	4 mm	4 mm	25.5 mm	30.5 mm	21.0 mm	10.0 mm	3.7 mm
362PLPD-6M	6 mm	6 mm	31.5 mm	37.5 mm	36.5 mm	12.0 mm	3.7 mm
362PLPD-4M-6M	4 mm	6 mm	25.5 mm	30.5 mm	21.0 mm	10.0 mm	3.7 mm
362PLPD-6M-8M	6 mm	8 mm	31.5 mm	38.0 mm	26.5 mm	12.0 mm	3.7 mm
