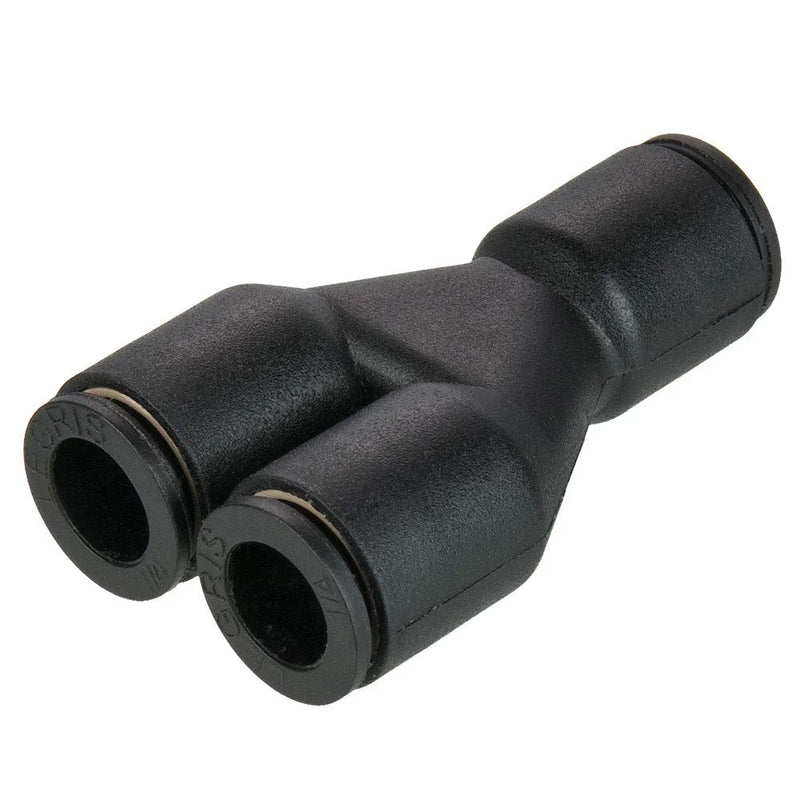

362PLPD-6M by Parker | Prestolok PLP Composite Push-to-Connect Fittings | Tube to Tube Fittings | 6mm Connector Tube Size | 37.5mm Length (L) | 3.7mm Mounting Hole Diameter | Double Y | Glass-Reinforced Nylon | Pack of 10

Save $86.77

$216.92

$216.92 - $216.92

$216.92

$130.15

$130.15 - $130.15

$130.15

by Parker Hannifin
Push-to-Connect Fittings:362PLPD Double Y Connector

Package Quantity: 10 Units

Specifications for Variant SKU: 362PLPD-6M Parker \| 10 \|
Series:	362PLPD Series
Shape (Orientation):	Y
Material(s):	Glass-Reinforced Nylon
Special Properties:	Corrosion Resistance, Chemical Resistance, Silicone Free

Product Features:	Stainless steel grab ring Glass-reinforced nylon 6.6 body Nitrile D-seal Nylon release button Corrosion and chemical resistance NPT, BSPT, BSPP, and metric threads Silicone Free
Markets:	Pneumatic Industrial Robotic Automation Printing Packaging Textile
Compatible Media:	Compressed Air Inert Gases Vacuum
Pressure Range:	Up to 290 PSI (19.9 bar) depending on tubing Up to 260 PSI (17.9 bar) depending on tubing (3/16” size only)
Temperature Range:	-4° to +175° F (-20° to +79.4° C) 5° to +155° F (-15° to +68.3° C) (3/16” size only)
Vacuum Rating:	28" Hg
Compatible Tubing:	Semi-rigid nylon Polyurethane 95 Durometer Shore A* Nylon Fluoropolymer Polyethylene


Part Number	Tube Size 1	Tube Size 2	H	L	N
362PLPD-4M	4 mm	4 mm	25.5 mm	30.5 mm	21.0 mm	10.0 mm	3.7 mm
362PLPD-6M	6 mm	6 mm	31.5 mm	37.5 mm	36.5 mm	12.0 mm	3.7 mm
362PLPD-4M-6M	4 mm	6 mm	25.5 mm	30.5 mm	21.0 mm	10.0 mm	3.7 mm
362PLPD-6M-8M	6 mm	8 mm	31.5 mm	38.0 mm	26.5 mm	12.0 mm	3.7 mm

Parker Fluid System Connectors Division

Parker Fluid System Connectors Division delivers quality and service from design to delivery. Their engineers leverage advanced technology to create prototypes, refine designs, and improve manufacturing efficiencies, offering tailored solutions. ISO 9001 certified and focused on sustainability, they utilize recyclable materials and a brass chip recycling program to protect the environment and control costs. Flexible assembly, packaging, and shipping systems support diverse needs, including kitting and custom labeling, ensuring high-quality products and outstanding customer support.

Shop Parts by Parker Fluid System Connectors Division
