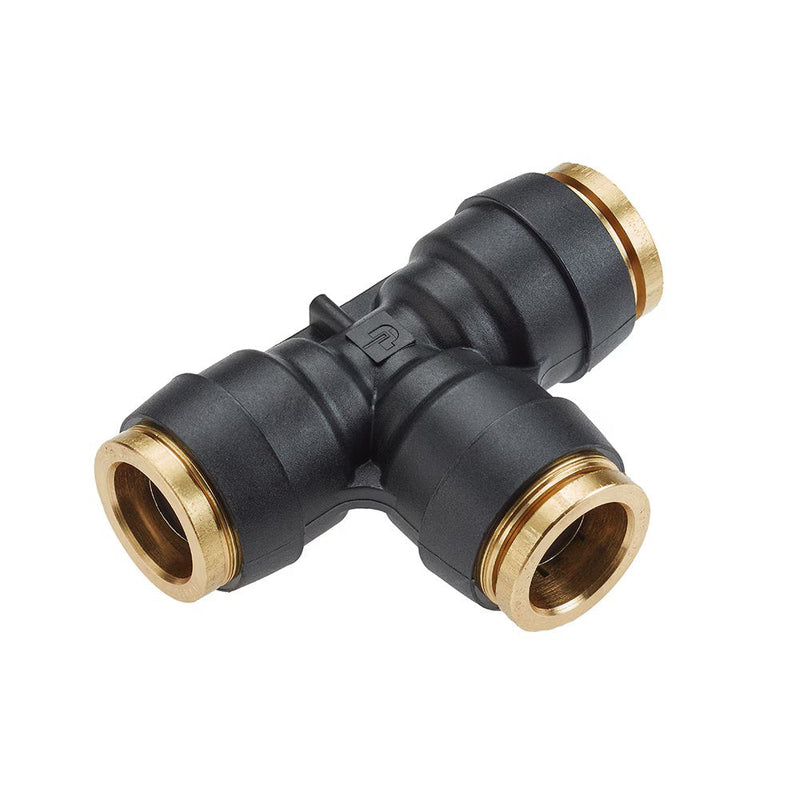

364PTC-6-6-5/32 by Parker | Tube to Tube Fitting | Union | 3/8" Push-to-Connect x 3/8" Push-to-Connect x 5/32" Push-to-Connect | 2.02" Length | Tee | Composite | Pack of 10

364PTC-6-6-5/32 by Parker | Tube to Tube Fitting | Union | 3/8" Push-to-Connect x 3/8" Push-to-Connect x 5/32" Push-to-Connect | 2.02" Length | Tee | Composite | Pack of 10

Save $119.47 Save $119.47
$298.67
$298.67 - $298.67
$298.67
$179.20
$179.20 - $179.20
$179.20

by Parker Hannifin
PTC & PTCR Composite Fittings:Union Tee 364PTC

Package Quantity: 10 Units

Specifications for Variant SKU: 364PTC-6-6-5/32 Parker | 10 |
Series: 364PTC Series
Shape (Orientation): Tee
Material(s): Composite, Brass, Stainless Steel
Seal Material(s): Buna-N/Nitrile Rubber
Product Features:
  • Brass Collet
  • HNBR O-ring
  • Stainless Steel Tube Support or Brass
  • Meets D.O.T. FMVSS571.106
  • Meets SAE J2494-3
  • Composite Body – Strong, Lightweight, Compact and Impact Resistant
  • Plug-in configurations
Markets:
  • Heavy Duty Truck
  • Trailer
  • Mobile
Applications:
  • Air Brakes
  • Air Tanks
  • Air Ride
  • Sliders
  • Tire Inflation
  • Primary & Secondary Air Lines
  • Cab Controls
Specification:
Pressure Range: 15 to 145 psi (1.0 to 9.9 bar)
Temperature Range: +32° to +158° F (0 to +70° C)
Compatible Tubing:
  • SAE J844 Type A & B nylon tubing
Part Number Tube Size 1 Tube Size 2 Tube Size 2 L M
364PTC-4 1/4" 1/4" 1/4" 1.52" .76"
364PTC-6 3/8" 3/8" 3/8" 2.03" 1.01"
364PTC-8 1/2" 1/2" 1/2" 2.29" 1.15"
364PTC-10 5/8" 5/8" 5/8" 2.88" 1.44"
364PTC-6-6-4 3/8" 3/8" 1/4" 2.03" .87"
364PTC-6-6-5/32 3/8" 3/8" 5/32" 2.02" 1.01"
364PTC-4-4-6 1/4" 1/4" 3/8" 1.91" 1.01"
