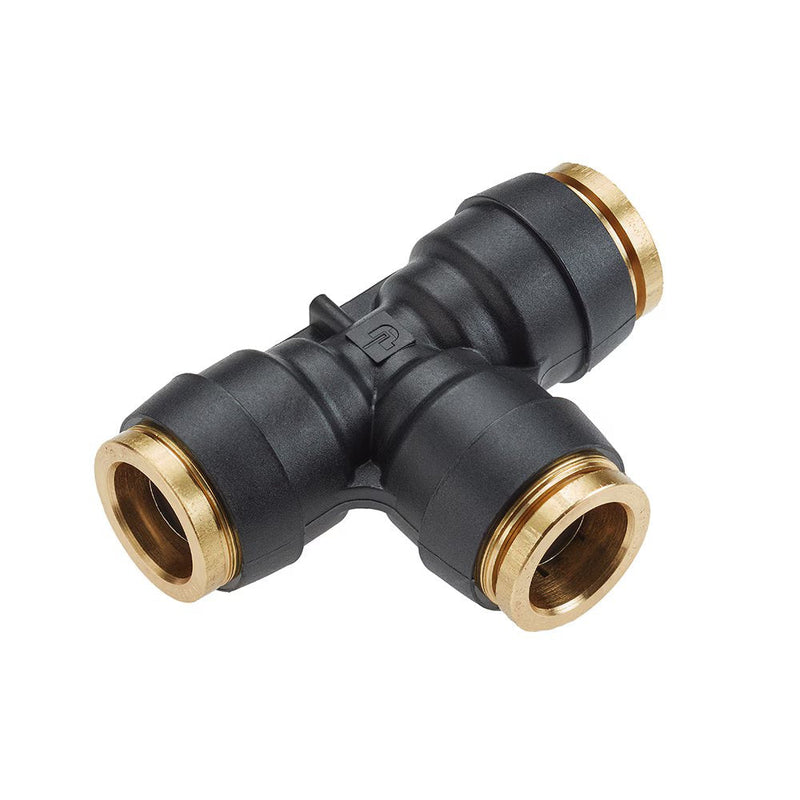

364PTC-6 by Parker | Tube to Tube Fitting | Union | 3/8" Push-to-Connect x 3/8" Push-to-Connect x 3/8" Push-to-Connect | 2.03" Length | Tee | Composite | Pack of 10

Save $27.79

$222.19

$222.19 - $222.19

$222.19

$194.40

$194.40 - $194.40

$194.40

by Parker Hannifin
PTC & PTCR Composite Fittings:Union Tee 364PTC

Package Quantity: 10 Units

Specifications for Variant SKU: 364PTC-6 Parker \| 10 \|
Series:	364PTC Series
Shape (Orientation):	Tee
Material(s):	Composite, Brass, Stainless Steel

Specification:
Product Features:	Brass Collet HNBR O-ring Stainless Steel Tube Support or Brass Meets D.O.T. FMVSS571.106 Meets SAE J2494-3 Composite Body – Strong, Lightweight, Compact and Impact Resistant Plug-in configurations
Markets:	Heavy Duty Truck Trailer Mobile
Applications:	Air Brakes Air Tanks Air Ride Sliders Tire Inflation Primary & Secondary Air Lines Cab Controls
Pressure Range:	15 to 145 psi (1.0 to 9.9 bar)
Temperature Range:	+32° to +158° F (0 to +70° C)
Compatible Tubing:	SAE J844 Type A & B nylon tubing


Part Number	Tube Size 1	Tube Size 2	Tube Size 2	L	M
364PTC-4	1/4"	1/4"	1/4"	1.52"	.76"
364PTC-6	3/8"	3/8"	3/8"	2.03"	1.01"
364PTC-8	1/2"	1/2"	1/2"	2.29"	1.15"
364PTC-10	5/8"	5/8"	5/8"	2.88"	1.44"
364PTC-6-6-4	3/8"	3/8"	1/4"	2.03"	.87"
364PTC-6-6-5/32	3/8"	3/8"	5/32"	2.02"	1.01"
364PTC-4-4-6	1/4"	1/4"	3/8"	1.91"	1.01"
