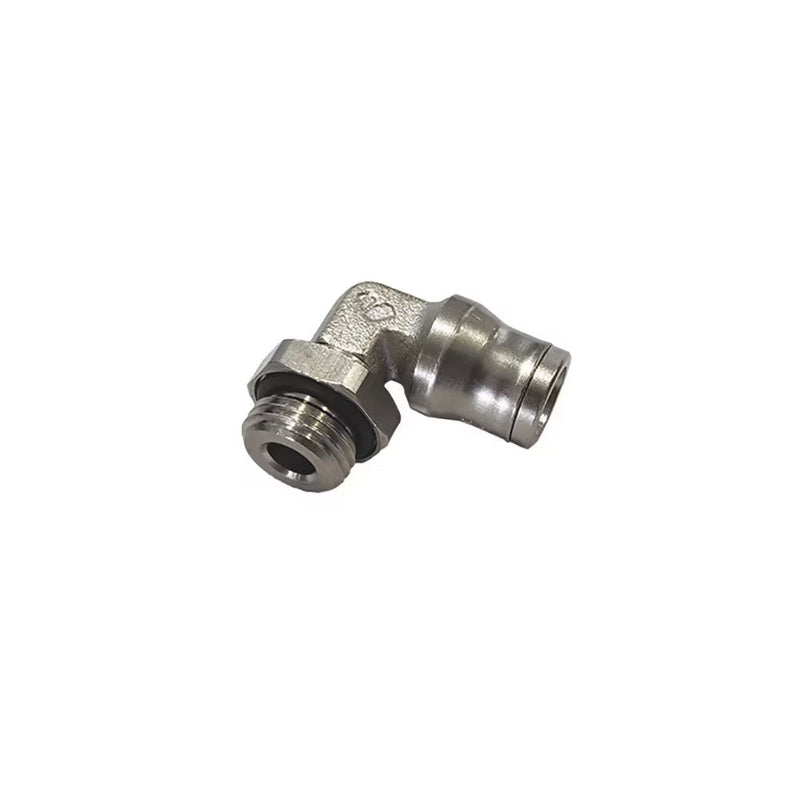

3699 04 56 by Parker | Legris Stud Swivel Fitting | 4 mm Tube Size x M8x1 Male M8 Metric Thread | 11 mm Hex | 90° Elbow | Nickel-Plated Brass | Pack of 10

Save $81.30

$203.25

$203.25 - $203.25

$203.25

$121.95

$121.95 - $121.95

$121.95

by Parker Hannifin
LF 3000® Push-In Fittings / Stud Fittings:3699 Compact Elbow, Male BSPP, Metric Thread and UNF

Package Quantity: 10 Units

Specifications for Variant SKU: 3699 04 56 Parker \| 10 \|
Series:	3699 Series
Shape (Orientation):	90° Elbow
Material(s):	Nickel-Plated Brass
Seal Material(s):	FKM
Special Properties:	Food Grade, Silicone Free, Swivel

Technical Characteristics:	Suitable Fluids: Compressed air, grease, lubricant, water Working Pressure: Vacuum to 30 bar (20 bar: 3699, 3609, 3639) Working Temperature: -25°C to +150°C
Advantages:	Wide range of working temperatures: up to +150°C Wide range of working pressures: from vacuum up to 30 bar Materials conform to FDA standards Extended chemical compatibility
Regulations:	RoHS REACH PED
Component Materials:	Body: FDA chemical nickel-plated brass Adapter: FDA Chemical nickel-plated brass Collet: FDA Chemical nickel-plated brass Washer: Stainless Steel 316L O-Ring: Fluoroelastomer (FKM)


Part Number	ØD	C	E	F	G	H	J	L	Kg
3699 04 20	5/32"	10-32	-	10 mm	.39"	.71"	-	.71	.112 Kg
3699 56 10	1/4"	1/8"	-	13 mm	12 mm	19 mm	-	21.5 mm	.026 Kg
3699 56 13	1/4"	1/4"	-	16 mm	12 mm	19.5 mm	-	21.5 mm	.032 Kg
3699 04 19	4 mm	M5x0.8	3.5 mm	10 mm	10 mm	18 mm	7 mm	18 mm	.011 Kg
3699 04 52	4 mm	M6x1	4.5 mm	10 mm	10 mm	18 mm	7 mm	18 mm	.011 Kg
3699 04 56	4 mm	M8x1	5 mm	11 mm	10 mm	18 mm	7 mm	18 mm	.011 Kg
3699 04 10	4 mm	1/8"	4.5 mm	13 mm	10 mm	17 mm	7 mm	18 mm	.014 Kg
3699 04 13	4 mm	1/4"	5.5 mm	16 mm	10 mm	17.5 mm	7 mm	18 mm	.019 Kg
3699 06 60	6 mm	M10x1	5.5 mm	13 mm	12 mm	19 mm	8 mm	21.5 mm	.017 Kg
3699 06 10	6 mm	1/8"	4.5 mm	13 mm	12 mm	19 mm	8 mm	21.5 mm	.018 Kg
3699 06 13	6 mm	1/4"	5.5 mm	16 mm	12 mm	19.5 mm	8 mm	21.5 mm	.022 Kg
3699 08 10	8 mm	1/8"	4.5 mm	13 mm	15 mm	20.5 mm	10 mm	23.5 mm	.021 Kg
3699 08 13	8 mm	1/4"	5.5 mm	16 mm	15 mm	21.5 mm	10 mm	23.5 mm	.027 Kg
3699 08 17	8 mm	3/8"	5.5 mm	20 mm	15 mm	21.5 mm	10 mm	23.5 mm	.033 Kg
3699 10 13	10 mm	1/4"	5.5 mm	16 mm	17.5 mm	27 mm	12 mm	29 mm	.037 Kg
3699 10 17	10 mm	3/8"	5.5 mm	20 mm	17.5 mm	25.5 mm	12 mm	29 mm	.043 Kg
3699 12 13	12 mm	1/4"	5.5 mm	16 mm	19.5 mm	29.5 mm	15 mm	31 mm	.050 Kg
3699 12 17	12 mm	3/8"	5.5 mm	20 mm	19.5 mm	28.5 mm	15 mm	31 mm	.057 Kg
3699 12 21	12 mm	1/2"	7 mm	24 mm	19.5 mm	28.5 mm	15 mm	31 mm	.065 Kg
3699 14 17	14 mm	3/8"	5.5 mm	20 mm	21.5 mm	29 mm	16 mm	34 mm	.059 Kg
3699 14 21	14 mm	1/2"	7 mm	24 mm	21.5 mm	29.5 mm	16 mm	34 mm	.062 Kg

The body swivels for positioning purposes. Maxi pressure = 20 bar

Parker Fluid System Connectors Division

Parker Fluid System Connectors Division delivers quality and service from design to delivery. Their engineers leverage advanced technology to create prototypes, refine designs, and improve manufacturing efficiencies, offering tailored solutions. ISO 9001 certified and focused on sustainability, they utilize recyclable materials and a brass chip recycling program to protect the environment and control costs. Flexible assembly, packaging, and shipping systems support diverse needs, including kitting and custom labeling, ensuring high-quality products and outstanding customer support.

Shop Parts by Parker Fluid System Connectors Division
