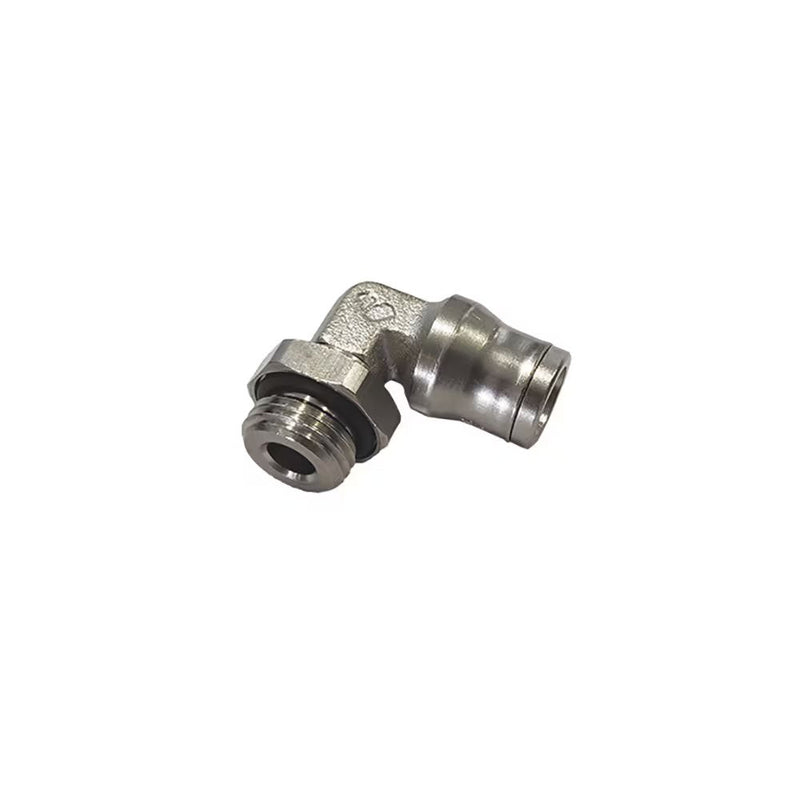

3699 06 60 by Parker | Legris Stud Swivel Fitting | 6 mm Tube Size x M10x1 Male M10 Metric Thread | 13 mm Hex | 90° Elbow | Nickel-Plated Brass | Pack of 10

Save $89.51

$223.78

$223.78 - $223.78

$223.78

$134.27

$134.27 - $134.27

$134.27

by Parker Hannifin
LF 3000® Push-In Fittings / Stud Fittings:3699 Compact Elbow, Male BSPP, Metric Thread and UNF

Package Quantity: 10 Units

Quantity

Specifications for Variant SKU: 3699 06 60 Parker \| 10 \|
Series:	3699 Series
Shape (Orientation):	90° Elbow
Material(s):	Nickel-Plated Brass
Seal Material(s):	FKM
Special Properties:	Food Grade, Silicone Free, Swivel

Technical Characteristics:	Suitable Fluids: Compressed air, grease, lubricant, water Working Pressure: Vacuum to 30 bar (20 bar: 3699, 3609, 3639) Working Temperature: -25°C to +150°C
Advantages:	Wide range of working temperatures: up to +150°C Wide range of working pressures: from vacuum up to 30 bar Materials conform to FDA standards Extended chemical compatibility
Regulations:	RoHS REACH PED
Component Materials:	Body: FDA chemical nickel-plated brass Adapter: FDA Chemical nickel-plated brass Collet: FDA Chemical nickel-plated brass Washer: Stainless Steel 316L O-Ring: Fluoroelastomer (FKM)


Part Number	ØD	C	E	F	G	H	J	L	Kg
3699 04 20	5/32"	10-32	-	10 mm	.39"	.71"	-	.71	.112 Kg
3699 56 10	1/4"	1/8"	-	13 mm	12 mm	19 mm	-	21.5 mm	.026 Kg
3699 56 13	1/4"	1/4"	-	16 mm	12 mm	19.5 mm	-	21.5 mm	.032 Kg
3699 04 19	4 mm	M5x0.8	3.5 mm	10 mm	10 mm	18 mm	7 mm	18 mm	.011 Kg
3699 04 52	4 mm	M6x1	4.5 mm	10 mm	10 mm	18 mm	7 mm	18 mm	.011 Kg
3699 04 56	4 mm	M8x1	5 mm	11 mm	10 mm	18 mm	7 mm	18 mm	.011 Kg
3699 04 10	4 mm	1/8"	4.5 mm	13 mm	10 mm	17 mm	7 mm	18 mm	.014 Kg
3699 04 13	4 mm	1/4"	5.5 mm	16 mm	10 mm	17.5 mm	7 mm	18 mm	.019 Kg
3699 06 60	6 mm	M10x1	5.5 mm	13 mm	12 mm	19 mm	8 mm	21.5 mm	.017 Kg
3699 06 10	6 mm	1/8"	4.5 mm	13 mm	12 mm	19 mm	8 mm	21.5 mm	.018 Kg
3699 06 13	6 mm	1/4"	5.5 mm	16 mm	12 mm	19.5 mm	8 mm	21.5 mm	.022 Kg
3699 08 10	8 mm	1/8"	4.5 mm	13 mm	15 mm	20.5 mm	10 mm	23.5 mm	.021 Kg
3699 08 13	8 mm	1/4"	5.5 mm	16 mm	15 mm	21.5 mm	10 mm	23.5 mm	.027 Kg
3699 08 17	8 mm	3/8"	5.5 mm	20 mm	15 mm	21.5 mm	10 mm	23.5 mm	.033 Kg
3699 10 13	10 mm	1/4"	5.5 mm	16 mm	17.5 mm	27 mm	12 mm	29 mm	.037 Kg
3699 10 17	10 mm	3/8"	5.5 mm	20 mm	17.5 mm	25.5 mm	12 mm	29 mm	.043 Kg
3699 12 13	12 mm	1/4"	5.5 mm	16 mm	19.5 mm	29.5 mm	15 mm	31 mm	.050 Kg
3699 12 17	12 mm	3/8"	5.5 mm	20 mm	19.5 mm	28.5 mm	15 mm	31 mm	.057 Kg
3699 12 21	12 mm	1/2"	7 mm	24 mm	19.5 mm	28.5 mm	15 mm	31 mm	.065 Kg
3699 14 17	14 mm	3/8"	5.5 mm	20 mm	21.5 mm	29 mm	16 mm	34 mm	.059 Kg
3699 14 21	14 mm	1/2"	7 mm	24 mm	21.5 mm	29.5 mm	16 mm	34 mm	.062 Kg

The body swivels for positioning purposes. Maxi pressure = 20 bar
