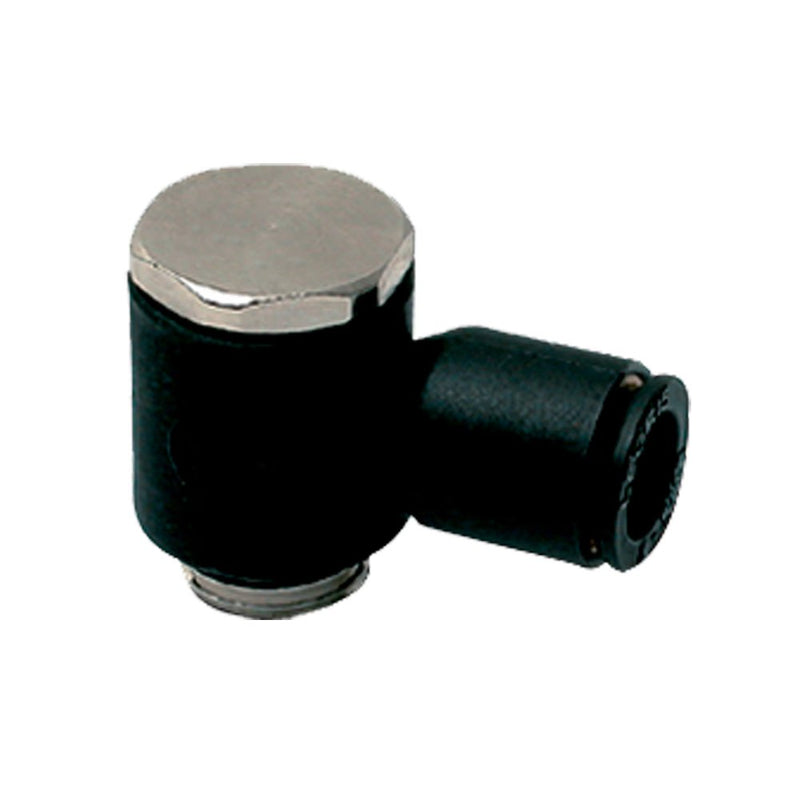

369PLPBJ-12M-6G by Parker | Prestolok PLP Composite Push-to-Connect Fittings | Modular Fitting | 12mm Banjo x 3/8" Male BSPP Thread | 20mm Hex | 34.5mm Length (L2) | Glass-Reinforced Nylon | Pack of 10

369PLPBJ-12M-6G by Parker | Prestolok PLP Composite Push-to-Connect Fittings | Modular Fitting | 12mm Banjo x 3/8" Male BSPP Thread | 20mm Hex | 34.5mm Length (L2) | Glass-Reinforced Nylon | Pack of 10

Save $111.80 Save $111.80
$279.50
$279.50 - $279.50
$279.50
$167.70
$167.70 - $167.70
$167.70

by Parker Hannifin
Push-to-Connect Fittings:369PLPBJ Banjo - BSPP

Package Quantity: 10 Units

Specifications for Variant SKU: 369PLPBJ-12M-6G Parker | 10 |
Series: 369PLPBJ Series
Shape (Orientation): 90 Degree
Material(s): Glass-Reinforced Nylon
Special Properties: Corrosion Resistance, Chemical Resistance, Silicone Free
Product Features:
  • Stainless steel grab ring
  • Glass-reinforced nylon 6.6 body
  • Nitrile D-seal
  • Nylon release button
  • Corrosion and chemical resistance
  • NPT, BSPT, BSPP, and metric threads
  • Silicone Free
Markets:
  • Pneumatic
  • Industrial
  • Robotic
  • Automation
  • Printing
  • Packaging
  • Textile
Compatible Media:
  • Compressed Air
  • Inert Gases
  • Vacuum
Pressure Range: Up to 290 PSI (19.9 bar) depending on tubing
Up to 260 PSI (17.9 bar) depending on tubing (3/16” size only)
Temperature Range: -4° to +175° F (-20° to +79.4° C)
5° to +155° F (-15° to +68.3° C) (3/16” size only)
Vacuum Rating: 28" Hg
Compatible Tubing:
  • Semi-rigid nylon
  • Polyurethane 95 Durometer Shore A*
  • Nylon
  • Fluoropolymer
  • Polyethylene
Part Number Tube Size BSPP / Metric Hex (C) H L2
369PLPBJ-3M-M3* 3 mm M3X0.5 - 13.0 mm 16.0 mm
369PLPBJ-4M-M5* 4 mm M5X0.8 - 13.0 mm 16.0 mm
369PLPBJ-4M-2G 4 mm 1/8" 13 mm 17.0 mm 18.5 mm
369PLPBJ-6M-M5* 6 mm M5X0.8 - 13.0 mm 18.5 mm
369PLPBJ-6M-2G 6 mm 1/8" 13 mm 17.0 mm 20.0 mm
369PLPBJ-6M-4G 6 mm 1/4" 17 mm 21.0 mm 22.0 mm
369PLPBJ-8M-2G 8 mm 1/8" 13 mm 16.5 mm 25.0 mm
369PLPBJ-8M-4G 8 mm 1/4" 17 mm 21.0 mm 27.0 mm
369PLPBJ-8M-6G 8 mm 3/8" 20 mm 24.5 mm 29.0 mm
369PLPBJ-10M-4G 10 mm 1/4" 17 mm 21.0 mm 29.0 mm
369PLPBJ-10M-6G 10 mm 3/8" 20 mm 24.5 mm 31.0 mm
369PLPBJ-10M-8G 10 mm 1/2" 25 mm 27.5 mm 36.5 mm
369PLPBJ-12M-6G 12 mm 3/8" 20 mm 24.5 mm 34.5 mm
369PLPBJ-12M-8G 12 mm 1/2" 25 mm 27.5 mm 36.5 mm

*With screwdriver slot
