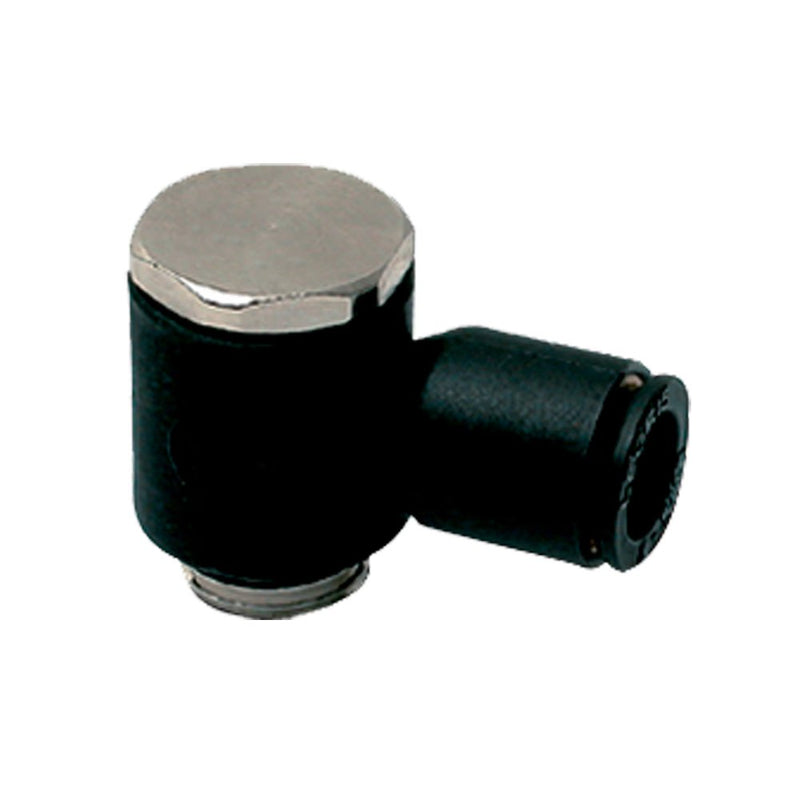

369PLPBJ-8M-6G by Parker | Prestolok PLP Composite Push-to-Connect Fittings | Modular Fitting | 8mm Banjo x 3/8" Male BSPP Thread | 17mm Hex | 29.0mm Length (L2) | Glass-Reinforced Nylon | Pack of 10

Save $20.28

$144.55

$144.55 - $144.55

$144.55

$124.27

$124.27 - $124.27

$124.27

by Parker Hannifin
Push-to-Connect Fittings:369PLPBJ Banjo - BSPP

Package Quantity: 10 Units

Specifications for Variant SKU: 369PLPBJ-8M-6G Parker \| 10 \|
Series:	369PLPBJ Series
Shape (Orientation):	90 Degree
Material(s):	Glass-Reinforced Nylon
Special Properties:	Corrosion Resistance, Chemical Resistance, Silicone Free

Product Features:	Stainless steel grab ring Glass-reinforced nylon 6.6 body Nitrile D-seal Nylon release button Corrosion and chemical resistance NPT, BSPT, BSPP, and metric threads Silicone Free
Markets:	Pneumatic Industrial Robotic Automation Printing Packaging Textile
Compatible Media:	Compressed Air Inert Gases Vacuum
Pressure Range:	Up to 290 PSI (19.9 bar) depending on tubing Up to 260 PSI (17.9 bar) depending on tubing (3/16” size only)
Temperature Range:	-4° to +175° F (-20° to +79.4° C) 5° to +155° F (-15° to +68.3° C) (3/16” size only)
Vacuum Rating:	28" Hg
Compatible Tubing:	Semi-rigid nylon Polyurethane 95 Durometer Shore A* Nylon Fluoropolymer Polyethylene


Part Number	Tube Size	BSPP / Metric	Hex (C)	H	L2
369PLPBJ-3M-M3*	3 mm	M3X0.5	-	13.0 mm	16.0 mm
369PLPBJ-4M-M5*	4 mm	M5X0.8	-	13.0 mm	16.0 mm
369PLPBJ-4M-2G	4 mm	1/8"	13 mm	17.0 mm	18.5 mm
369PLPBJ-6M-M5*	6 mm	M5X0.8	-	13.0 mm	18.5 mm
369PLPBJ-6M-2G	6 mm	1/8"	13 mm	17.0 mm	20.0 mm
369PLPBJ-6M-4G	6 mm	1/4"	17 mm	21.0 mm	22.0 mm
369PLPBJ-8M-2G	8 mm	1/8"	13 mm	16.5 mm	25.0 mm
369PLPBJ-8M-4G	8 mm	1/4"	17 mm	21.0 mm	27.0 mm
369PLPBJ-8M-6G	8 mm	3/8"	20 mm	24.5 mm	29.0 mm
369PLPBJ-10M-4G	10 mm	1/4"	17 mm	21.0 mm	29.0 mm
369PLPBJ-10M-6G	10 mm	3/8"	20 mm	24.5 mm	31.0 mm
369PLPBJ-10M-8G	10 mm	1/2"	25 mm	27.5 mm	36.5 mm
369PLPBJ-12M-6G	12 mm	3/8"	20 mm	24.5 mm	34.5 mm
369PLPBJ-12M-8G	12 mm	1/2"	25 mm	27.5 mm	36.5 mm

*With screwdriver slot
