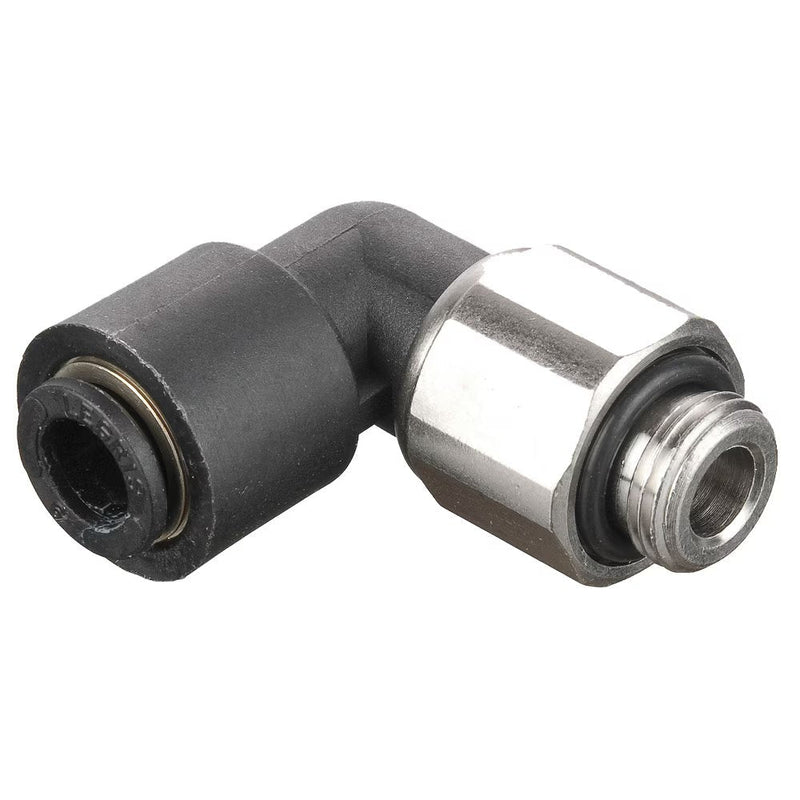

369PLPO-12M-6G by Parker | Oscillating Elbows | 12mm Tube Size x 3/8" Male BSPP Thread | 51.0mm Length | 90° Elbow | Glass Reinforced Nylon | Pack of 5

Save $155.67

$389.18

$389.18 - $389.18

$389.18

$233.51

$233.51 - $233.51

$233.51

by Parker Hannifin
Oscillating Elbows:369PLPO Oscillating Compact Elbow - BSPP, M5

Package Quantity: 5 Units

Specifications for Variant SKU: 369PLPO-12M-6G Parker \| 5 \|
Series:	369PLPO Series
Shape (Orientation):	90° Elbow
Material(s):	Glass-Reinforced Nylon, Stainless Steel
Seal Material(s):	Buna-N/Nitrile Rubber
Special Properties:	Oscillating Elbow, Swivel

Product Features:	Glass reinforced nylon 6.6 body Nylon collar Stainless Steel gripping ring Nitrile D seal Nitrile O-ring Nickel-plated brass threads
Markets:	Pneumatics Robotic Automation Semi-conductors Packaging Textile
Applications:	Air Inert Gases Cutting Fluids
Pressure Range:	Up to 290 PSI (19.9 bar) depending on tubing
Temperature Range:	-4° to +175° F (-20° to +79.4° C)
Compatible Tubing:	Semi-rigid nylon Polyurethane 95 Durometer Shore A* Nylon Fluoropolymer


Part Number	Tube Size	M5 / BSPP	E	F	G	H	L
369PLPO-4M-M5	4 mm	M5X0.8	3.0 mm	12 mm	11.0 mm	24.5 mm	17.5 mm
369PLPO-4M-2G	4 mm	1/8"	5.0 mm	13 mm	11.0 mm	23.0 mm	17.5 mm
369PLPO-6M-M5	6 mm	M5X0.8	3.0 mm	12 mm	14.0 mm	27.5 mm	20.5 mm
369PLPO-6M-2G	6 mm	1/8"	5.0 mm	14 mm	14.0 mm	27.0 mm	20.5 mm
369PLPO-6M-4G	6 mm	1/4"	5.5 mm	16 mm	14.0 mm	25.5 mm	20.5 mm
369PLPO-8M-2G	8 mm	1/8"	5.0 mm	17 mm	16.0 mm	33.5 mm	23.5 mm
369PLPO-8M-4G	8 mm	1/4"	5.5 mm	17 mm	16.0 mm	31.0 mm	23.5 mm
369PLPO-8M-6G	8 mm	3/8"	5.5 mm	20 mm	16.0 mm	29.5 mm	23.5 mm
369PLPO-10M-4G	10 mm	1/4"	5.5 mm	19 mm	19.0 mm	50.0 mm	29.0 mm
369PLPO-10M-6G	10 mm	3/8"	5.5 mm	20 mm	19.5 mm	37.0 mm	29.0 mm
369PLPO-12M-4G	12 mm	1/4"	5.5 mm	21 mm	22.0 mm	46.5 mm	33.5 mm
369PLPO-12M-6G	12 mm	3/8"	5.5 mm	21 mm	22.0 mm	45.5 mm	33.5 mm
