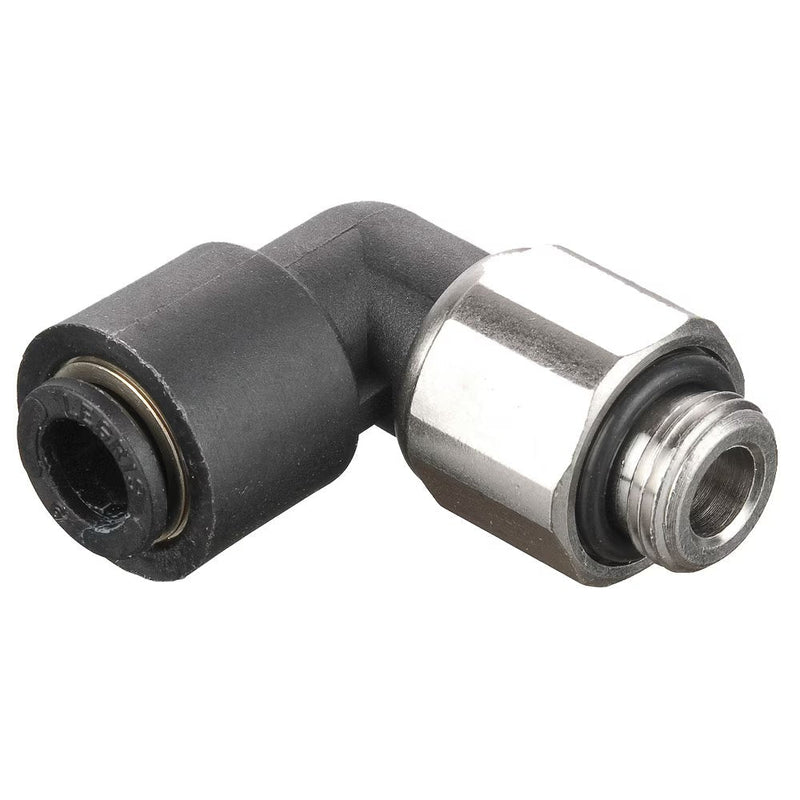

369PLPO-6M-4G by Parker | Oscillating Elbows | 6mm Tube Size x 1/4" Male BSPP Thread | 31.0mm Length | 90° Elbow | Glass Reinforced Nylon | Pack of 10

Save $154.23

$385.58

$385.58 - $385.58

$385.58

$231.35

$231.35 - $231.35

$231.35

by Parker Hannifin
Oscillating Elbows:369PLPO Oscillating Compact Elbow - BSPP, M5

Package Quantity: 10 Units

Specifications for Variant SKU: 369PLPO-6M-4G Parker \| 10 \|
Series:	369PLPO Series
Shape (Orientation):	90° Elbow
Material(s):	Glass-Reinforced Nylon, Stainless Steel
Seal Material(s):	Buna-N/Nitrile Rubber
Special Properties:	Oscillating Elbow, Swivel

Product Features:	Glass reinforced nylon 6.6 body Nylon collar Stainless Steel gripping ring Nitrile D seal Nitrile O-ring Nickel-plated brass threads
Markets:	Pneumatics Robotic Automation Semi-conductors Packaging Textile
Applications:	Air Inert Gases Cutting Fluids
Pressure Range:	Up to 290 PSI (19.9 bar) depending on tubing
Temperature Range:	-4° to +175° F (-20° to +79.4° C)
Compatible Tubing:	Semi-rigid nylon Polyurethane 95 Durometer Shore A* Nylon Fluoropolymer


Part Number	Tube Size	M5 / BSPP	E	F	G	H	L
369PLPO-4M-M5	4 mm	M5X0.8	3.0 mm	12 mm	11.0 mm	24.5 mm	17.5 mm
369PLPO-4M-2G	4 mm	1/8"	5.0 mm	13 mm	11.0 mm	23.0 mm	17.5 mm
369PLPO-6M-M5	6 mm	M5X0.8	3.0 mm	12 mm	14.0 mm	27.5 mm	20.5 mm
369PLPO-6M-2G	6 mm	1/8"	5.0 mm	14 mm	14.0 mm	27.0 mm	20.5 mm
369PLPO-6M-4G	6 mm	1/4"	5.5 mm	16 mm	14.0 mm	25.5 mm	20.5 mm
369PLPO-8M-2G	8 mm	1/8"	5.0 mm	17 mm	16.0 mm	33.5 mm	23.5 mm
369PLPO-8M-4G	8 mm	1/4"	5.5 mm	17 mm	16.0 mm	31.0 mm	23.5 mm
369PLPO-8M-6G	8 mm	3/8"	5.5 mm	20 mm	16.0 mm	29.5 mm	23.5 mm
369PLPO-10M-4G	10 mm	1/4"	5.5 mm	19 mm	19.0 mm	50.0 mm	29.0 mm
369PLPO-10M-6G	10 mm	3/8"	5.5 mm	20 mm	19.5 mm	37.0 mm	29.0 mm
369PLPO-12M-4G	12 mm	1/4"	5.5 mm	21 mm	22.0 mm	46.5 mm	33.5 mm
369PLPO-12M-6G	12 mm	3/8"	5.5 mm	21 mm	22.0 mm	45.5 mm	33.5 mm

Parker Fluid System Connectors Division

Parker Fluid System Connectors Division delivers quality and service from design to delivery. Their engineers leverage advanced technology to create prototypes, refine designs, and improve manufacturing efficiencies, offering tailored solutions. ISO 9001 certified and focused on sustainability, they utilize recyclable materials and a brass chip recycling program to protect the environment and control costs. Flexible assembly, packaging, and shipping systems support diverse needs, including kitting and custom labeling, ensuring high-quality products and outstanding customer support.
