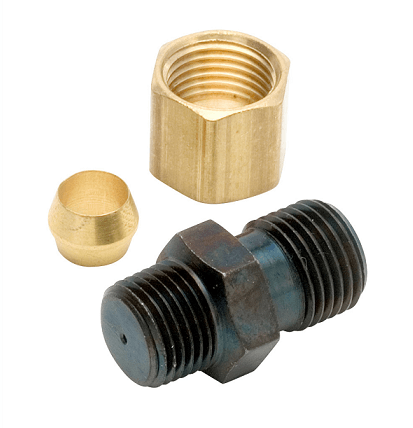

381290-4 by Alemite | Mist Fitting | Inlet: 1/4" OD Tube ftg. | Outlet: 1/8" Male PTF | SAE Special Short | Brass

Save $0.26

$24.76

$24.76 - $24.76

$24.76

$24.50

$24.50 - $24.50

$24.50

PRODUCT DESCRIPTION

Alemite Centralized Lubrication - Oil Mist - Mist Fittings

Quantity

Specifications for Variant SKU: 381290-4 Alemite

Applications:
Alemite Oil Mist Systems are used to service all types of machine elements that require continuous lubrication, such as rolling element bearings and chain drives. Delivering a continuous, measured stream of clean atomized oil, Alemite Oil Mist Systems have no moving parts for long, reliable life. Alemite Oil Mist Systems use less lubricant, making them a very cost effective option for continuous, automatic lubrication.
Features:
NA

Part Number	Inlet	Outlet	CFM @ 20" H2O
380791-2	1/8"NPTF(f)	1/8" PTF(m) SAE Special Short	0.08
380791-4	1/8"NPTF(f)	1/8" PTF(m) SAE Special Short	0.16
380791-6	1/8"NPTF(f)	1/8" PTF(m) SAE Special Short	0.24
380791-10	1/8"NPTF(f)	1/8" PTF(m) SAE Special Short	0.49
380791-16	1/8"NPTF(f)	1/8" PTF(m) SAE Special Short	0.68
381303-4	1/8"NPTF(f)	1/4"NPTF(m)	0.16
381303-6	1/8"NPTF(f)	1/4"NPTF(m)	0.24
381303-10	1/8"NPTF(f)	1/4"NPTF(m)	0.49
381303-16	1/8"NPTF(f)	1/4"NPTF(m)	0.68
381290-2	1/4" OD Tube ftg.	1/8" PTF(m) SAE Special Short	0.08
381290-4	1/4" OD Tube ftg.	1/8" PTF(m) SAE Special Short	0.16
381290-6	1/4" OD Tube ftg.	1/8" PTF(m) SAE Special Short	0.24
381290-10	1/4" OD Tube ftg.	1/8" PTF(m) SAE Special Short	0.49
381290-16	1/4" OD Tube ftg.	1/8" PTF(m) SAE Special Short	0.68
