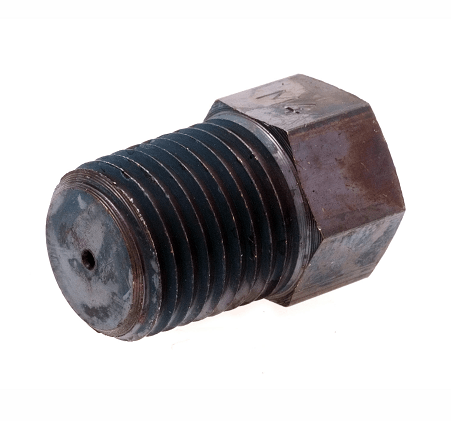

381303-4 by Alemite | Mist Fitting | Inlet: 1/8" Female NPTF | Outlet: 1/4" Male NPTF | Brass

381303-4 by Alemite | Mist Fitting | Inlet: 1/8" Female NPTF | Outlet: 1/4" Male NPTF | Brass

Save $41.68 Save $41.68
$145.88
$145.88 - $145.88
$145.88
$104.20
$104.20 - $104.20
$104.20

PRODUCT DESCRIPTION

Alemite Centralized Lubrication - Oil Mist - Mist Fittings
Specifications for Variant SKU: 381303-4 Alemite
Applications:
  • Alemite Oil Mist Systems are used to service all types of machine elements that require continuous lubrication, such as rolling element bearings and chain drives. Delivering a continuous, measured stream of clean atomized oil, Alemite Oil Mist Systems have no moving parts for long, reliable life. Alemite Oil Mist Systems use less lubricant, making them a very cost effective option for continuous, automatic lubrication.
Features:
  • NA

Part Number Inlet Outlet CFM @ 20" H2O
380791-2 1/8"NPTF(f) 1/8" PTF(m) SAE Special Short 0.08
380791-4 1/8"NPTF(f) 1/8" PTF(m) SAE Special Short 0.16
380791-6 1/8"NPTF(f) 1/8" PTF(m) SAE Special Short 0.24
380791-10 1/8"NPTF(f) 1/8" PTF(m) SAE Special Short 0.49
380791-16 1/8"NPTF(f) 1/8" PTF(m) SAE Special Short 0.68
381303-4 1/8"NPTF(f) 1/4"NPTF(m) 0.16
381303-6 1/8"NPTF(f) 1/4"NPTF(m) 0.24
381303-10 1/8"NPTF(f) 1/4"NPTF(m) 0.49
381303-16 1/8"NPTF(f) 1/4"NPTF(m) 0.68
381290-2 1/4" OD Tube ftg. 1/8" PTF(m) SAE Special Short 0.08
381290-4 1/4" OD Tube ftg. 1/8" PTF(m) SAE Special Short 0.16
381290-6 1/4" OD Tube ftg. 1/8" PTF(m) SAE Special Short 0.24
381290-10 1/4" OD Tube ftg. 1/8" PTF(m) SAE Special Short 0.49
381290-16 1/4" OD Tube ftg. 1/8" PTF(m) SAE Special Short 0.68

Alemite | SKF

Alemite | SKF

Alemite products have quietly been a major part of many of the world’s
essential industries. Manufacturing, construction, agriculture, automotive,
pulp and paper, aircraft maintenance, marine and mining industries have
benefitted from the innovations introduced since its founding in 1918.
