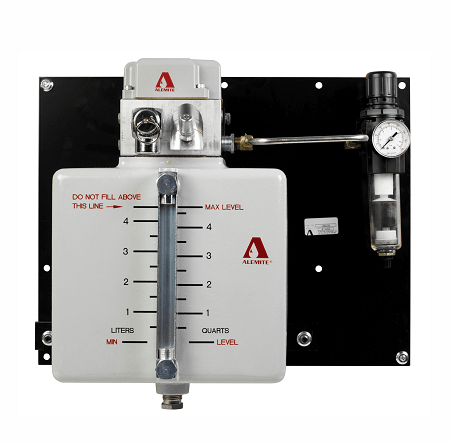

3942-CB by Alemite | Oil Mist Generator | CFM Nominal: 1 | Flow Range: 0.3-1.4 CFM | Reservoir Capacity: 1 gal/3.8 Liter | Mounting Plate

3942-CB by Alemite | Oil Mist Generator | CFM Nominal: 1 | Flow Range: 0.3-1.4 CFM | Reservoir Capacity: 1 gal/3.8 Liter | Mounting Plate

Save $39.11 Save $39.11
$3,666.45
$3,666.45 - $3,666.45
$3,666.45
$3,627.34
$3,627.34 - $3,627.34
$3,627.34

PRODUCT DESCRIPTION

Alemite Centralized Lubrication - Oil Mist - Oil Mist Generators
Specifications for Variant SKU: 3942-CB Alemite
Applications:
  • Alemite Oil Mist Systems are used to service all types of machine elements that require continuous lubrication, such as rolling element bearings and chain drives. Delivering a continuous, measured stream of clean atomized oil, Alemite Oil Mist Systems have no moving parts for long, reliable life. Alemite Oil Mist Systems use less lubricant, making them a very cost effective option for continuous, automatic lubrication.
Features:
  • TYPICAL APPLICATIONS:
  • Rolling element bearings
  • Plain bearings
  • Gears
  • Chains
  • Spindles
  • Conveyors
  • High speed machinery
  • Slides and ways

Part Number CFM
Nominal		 Flow
Range		 Reservoir
Capacity		 Mounting
Plate		 Oil Heater Oil level
switch		 Filter/
Regulator		 Air Solenoid
Valve		 Air Heater
3922-A 1 0.3-1.4 CFM 1 pint/0.47 l - NA - - - NA
3922-AC 1 0.3-1.4 CFM 1 pint/0.47 l Yes NA - Yes 115 VAC NA
3922-B 1 0.3-1.4 CFM 1 pint/0.47 l - NA Yes - - NA
3922-BC 1 0.3-1.4 CFM 1 pint/0.47 l Yes NA Yes Yes 115 VAC NA
3922-AD 1 0.3-1.4 CFM 1 pint/0.47 l Yes NA Yes Yes 230 VAC NA
3922-BD 1 0.3-1.4 CFM 1 pint/0.47 l Yes NA Yes Yes 230 VAC NA
3942-BC 1 0.3-1.4 CFM 1 gal/3.8l Yes Accessory (387323 +387333) Yes Yes 115 VAC NA
3942-BD 1 0.3-1.4 CFM 1 gal/3.8l Yes Accessory (387323-A +387333) Yes Yes 230 VAC NA
3942-CB 1 0.3-1.4 CFM 1 gal/3.8l Yes 115 VAC Yes Yes - NA
3942-CC 1 0.3-1.4 CFM 1 gal/3.8l Yes 115 VAC Yes Yes 115 VAC NA
3942-DD 1 0.3-1.4 CFM 1 gal/3.8l Yes 230 VAC Yes Yes 230 VAC NA
3943-B 2.3 0.8-3.1 CFM 1 gal/3.8l - Accessory (387323 +387333) Yes - - NA
3943-BC 2.3 0.3-1.4 CFM 1 gal/3.8l Yes Accessory (387323 +387333) Yes Yes 115 VAC NA
3943-C 2.3 0.8-3.1 CFM 1 gal/3.8l No 115 VAC Yes No No NA
3943-BD 2.3 0.8-3.1 CFM 1 gal/3.8l Yes Accessory (387323-A +387333) Yes Yes 230 VAC NA
3943-CB 2.3 0.8-3.1 CFM 1 gal/3.8l Yes 115 VAC Yes Yes - NA
3943-CC 2.3 0.8-3.1 CFM 1 gal/3.8l Yes 115 VAC Yes Yes 115 VAC NA
3943-DD 2.3 0.8-3.1 CFM 1 gal/3.8l Yes 230 VAC Yes Yes 230 VAC NA
