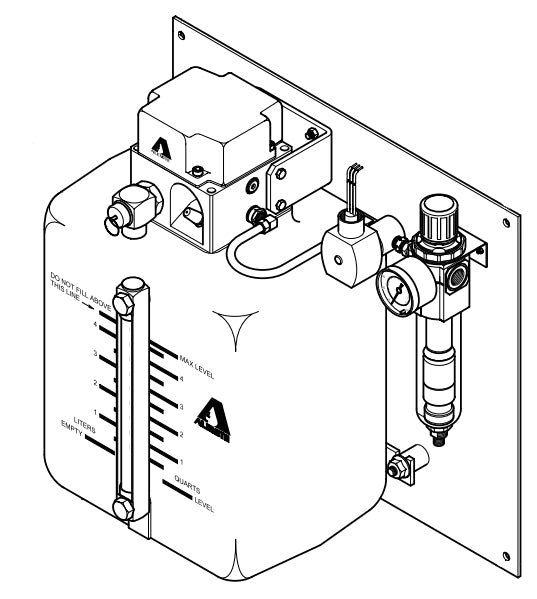

3942-CC by Alemite | Oil Mist Generator | CFM Nominal: 1 | Flow Range: 0.3-1.4 CFM | Reservoir Capacity: 1 gal/3.8 Liter | Mounting Plate

Save $1,660.46

$5,811.62

$5,811.62 - $5,811.62

$5,811.62

$4,151.16

$4,151.16 - $4,151.16

$4,151.16

PRODUCT DESCRIPTION

Alemite Centralized Lubrication - Oil Mist - Oil Mist Generators

Specifications for Variant SKU: 3942-CC Alemite

Applications:
Alemite Oil Mist Systems are used to service all types of machine elements that require continuous lubrication, such as rolling element bearings and chain drives. Delivering a continuous, measured stream of clean atomized oil, Alemite Oil Mist Systems have no moving parts for long, reliable life. Alemite Oil Mist Systems use less lubricant, making them a very cost effective option for continuous, automatic lubrication.
Features:
TYPICAL APPLICATIONS: Rolling element bearings Plain bearings Gears Chains Spindles Conveyors High speed machinery Slides and ways

Part Number	CFM Nominal	Flow Range	Reservoir Capacity	Mounting Plate	Oil Heater	Oil level switch	Filter/ Regulator	Air Solenoid Valve	Air Heater
3922-A	1	0.3-1.4 CFM	1 pint/0.47 l	-	NA	-	-	-	NA
3922-AC	1	0.3-1.4 CFM	1 pint/0.47 l	Yes	NA	-	Yes	115 VAC	NA
3922-B	1	0.3-1.4 CFM	1 pint/0.47 l	-	NA	Yes	-	-	NA
3922-BC	1	0.3-1.4 CFM	1 pint/0.47 l	Yes	NA	Yes	Yes	115 VAC	NA
3922-AD	1	0.3-1.4 CFM	1 pint/0.47 l	Yes	NA	Yes	Yes	230 VAC	NA
3922-BD	1	0.3-1.4 CFM	1 pint/0.47 l	Yes	NA	Yes	Yes	230 VAC	NA
3942-BC	1	0.3-1.4 CFM	1 gal/3.8l	Yes	Accessory (387323 +387333)	Yes	Yes	115 VAC	NA
3942-BD	1	0.3-1.4 CFM	1 gal/3.8l	Yes	Accessory (387323-A +387333)	Yes	Yes	230 VAC	NA
3942-CB	1	0.3-1.4 CFM	1 gal/3.8l	Yes	115 VAC	Yes	Yes	-	NA
3942-CC	1	0.3-1.4 CFM	1 gal/3.8l	Yes	115 VAC	Yes	Yes	115 VAC	NA
3942-DD	1	0.3-1.4 CFM	1 gal/3.8l	Yes	230 VAC	Yes	Yes	230 VAC	NA
3943-B	2.3	0.8-3.1 CFM	1 gal/3.8l	-	Accessory (387323 +387333)	Yes	-	-	NA
3943-BC	2.3	0.3-1.4 CFM	1 gal/3.8l	Yes	Accessory (387323 +387333)	Yes	Yes	115 VAC	NA
3943-C	2.3	0.8-3.1 CFM	1 gal/3.8l	No	115 VAC	Yes	No	No	NA
3943-BD	2.3	0.8-3.1 CFM	1 gal/3.8l	Yes	Accessory (387323-A +387333)	Yes	Yes	230 VAC	NA
3943-CB	2.3	0.8-3.1 CFM	1 gal/3.8l	Yes	115 VAC	Yes	Yes	-	NA
3943-CC	2.3	0.8-3.1 CFM	1 gal/3.8l	Yes	115 VAC	Yes	Yes	115 VAC	NA
3943-DD	2.3	0.8-3.1 CFM	1 gal/3.8l	Yes	230 VAC	Yes	Yes	230 VAC	NA
