Dixon Valve & Coupling

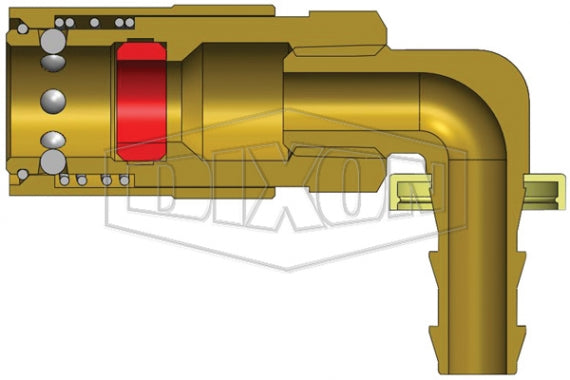

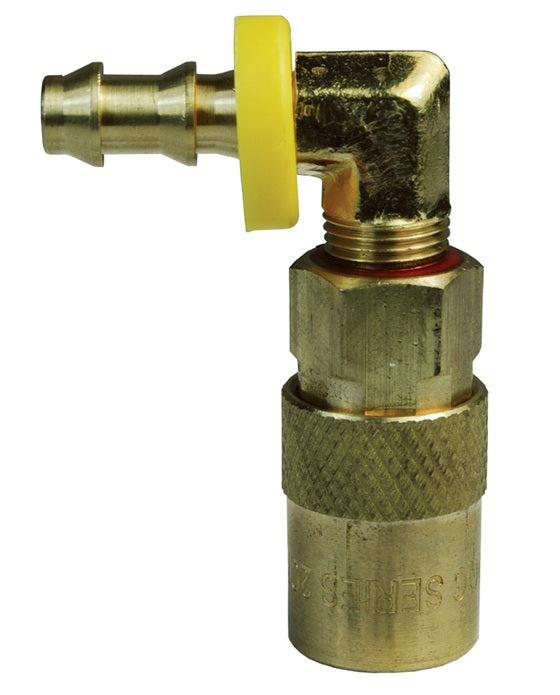

Hydraulic Coupling: CM-Series Industrial Mold Interchange Unvalved Coupler (90º Elbow Push-Loc Barb)
Specifications for Variant SKU: 3CM9B3-B-E Dixon
Series: CM-Series
Shape (Orientation): 90 Degree
Ends Configuration: 3/8in Female CM-Series QD Interchange, 3/8in Push-On Hose Barb
Material(s): Brass
Seal Material(s): Silicone
Compatibility & Interchange:
  • Mold Coolant Interchange
  • Foster Series- FJT, Hansen Flo-Temp, Tomco MC-Series, Parker Moldmate, DME Jiffy-Tite
Construction:
  • Machined components are manufactured using solid steel or brass bar stock.
  • Stainless steel balls, retaining rings, and springs maximize corrosion resistance and extend service life.
Seal Components:
  • Silicon gaskets and valve O-rings are standard, providing a temperature range of -90°F to 400°F (-68°C to 205°C).
Safety Notes:
  • Maximum working and burst pressure is based on a coupled set, contact Dixon for pressure ratings.
Additional Information:
CM-Series | Industrial Mold Interchange (Connected) Rated Pressure Chart
Body
Size		 Unvalved Coupler/Brass Plug Unvalved Coupler/Steel Plug Valved Coupler/Brass Plug Valved Coupler/Steel Plug Locking Ball
Quantity		 Flow
ΔP = 7 PSI
Max.
Working		 Burst Max.
Working		 Burst Max.
Working		 Burst Max.
Working		 Burst
1/4" 300 PSI
(20 Bar)		 10,000 PSI
(700 Bar)		 500 PSI
(35 Bar)		 10,700 PSI
(750 Bar)		 300 PSI
(20 Bar)		 6,000 PSI
(400 Bar)		 300 PSI
(20 Bar)		 6,100 PSI
(400 Bar)		 6 3 GPM
3/8" 300 PSI
(20 Bar)		 14,500 PSI
(1,000 Bar)		 500 PSI
(35 Bar)		 14,200 PSI
(1,000 Bar)		 300 PSI
(20 Bar)		 6,700 PSI
(450 Bar)		 300 PSI
(20 Bar)		 6,100 PSI
(400 Bar)		 8 9 GPM
1/2" 300 PSI
(20 Bar)		 4,900 PSI
(340 Bar)		 - - - - - - 8 15 GPM
CM-Series | Industrial Mold Interchange Unvalved Coupler (90º Push-Loc Barb)
Part
Number		 Coupling
Type		 Body
Size		 Thread Size Material Length Max.
OD		 Hex
2CM9B2-B-E Socket/Female 1/4" 1/4" Brass 2.07"
(52.6mm)		 0.69"
(17.5mm)		 -
2CM9B3-B-E Socket/Female 1/4" 3/8" Brass 2.17"
(55.1mm)		 0.69"
(17.5mm)		 -
3CM9B3-B-E Socket/Female 3/8" 3/8" Brass 2.93"
(74.4mm)		 0.95"
(24.1mm)		 -
3CM9B4-B-E Socket/Female 3/8" 1/2" Brass 2.98"
(75.7mm)		 0.95"
(24.1mm)		 -
4CM9B4-B-E Socket/Female 1/2" 1/2" Brass 3.50"
(88.9mm)		 1.18"
(30.0mm)		 -
4CM9B6-B-E Socket/Female 1/2" 3/4" Brass 3.50"
(88.9mm)		 1.18"
(30.0mm)		 -
CM-Series | Industrial Mold Interchange Plug (Female Threads)
Part
Number		 Coupling
Type		 Body
Size		 Thread Size Material Length Max.
OD		 Hex
CM2F1 Plug/Male 1/4" 1/8" - 27 Female NPTF Steel 0.90"
(22.9mm)		 0.58"
(14.7mm)		 1/2"
CM2F1-B Plug/Male 1/4" 1/8" - 27 Female NPTF Brass 0.90"
(22.9mm)		 0.58"
(14.7mm)		 1/2"
CM2F2 Plug/Male 1/2" 1/4" - 18 Female NPTF Steel 1.12"
(28.4mm)		 0.72"
(18.3mm)		 5/8"
CM2F2-B Plug/Male 1/4" 1/4" - 18 Female NPTF Brass 1.12"
(28.4mm)		 0.72"
(18.3mm)		 5/8"
CM2F3 Plug/Male 1/4" 3/8" - 18 Female NPTF Steel 1.12"
(28.4mm)		 0.87"
(22.1mm)		 3/4"
CM2F3-B Plug/Male 1/4" 3/8" - 18 Female NPTF Brass 1.12"
(28.4mm)		 0.87"
(22.1mm)		 3/4"
CM3F2 Plug/Male 3/8" 1/4" - 18 Female NPTF Steel 1.34"
(34.0mm)		 0.72"
(18.3mm)		 5/8"
CM3F2-B Plug/Male 3/8" 1/4" - 18 Female NPTF Brass 1.34"
(34.0mm)		 0.72"
(18.3mm)		 5/8"
CM3F3 Plug/Male 3/8" 3/8" - 18 Female NPTF Steel 1.34"
(34.0mm)		 0.87"
(22.1mm)		 3/4"
CM3F3-B Plug/Male 3/8" 3/8" - 18 Female NPTF Brass 1.34"
(34.0mm)		 0.87"
(22.1mm)		 3/4"
CM4F4-B Plug/Male 1/2" 1/2" - 14 Female NPTF Brass 1.69"
(42.9mm)		 1.16"
(29.5mm)		 1"
CM4F6-B Plug/Male 1/2" 3/4" - 14 Female NPTF Brass 1.69"
(42.9mm)		 1.37"
(34.8mm)		 1-3/16"
CM-Series | Industrial Mold Interchange Plug (Male Threads)
Part
Number		 Coupling
Type		 Body
Size		 Thread Size Material Length Max.
OD		 Hex
CM2M1-B Plug/Male 1/4" 1/8" - 27 Male NPTF Brass 1.00"
(25.4mm)		 0.65"
(16.5mm)		 9/16"
CM2M2-B Plug/Male 1/4" 1/4" - 18 Male NPTF Brass 1.26"
(32.0mm)		 0.65"
(16.5mm)		 9/16"
CM2M3-B Plug/Male 1/4" 3/8" - 18 Male NPTF Brass 1.20"
(30.5mm)		 0.79"
(20.1mm)		 11/16"
CM3M2-B Plug/Male 3/8" 1/4" - 18 Male NPTF Brass 1.37"
(34.8mm)		 0.65"
(16.5mm)		 9/16"
CM3M3-B Plug/Male 3/8" 3/8" - 18 Male NPTF Brass 1.43"
(36.3mm)		 0.79"
(20.1mm)		 11/16"
CM3M4-B Plug/Male 3/8" 1/2" - 14 Male NPTF Brass 1.58"
(40.1mm)		 1.01"
(25.7mm)		 7/8"
CM4M4-B Plug/Male 1/2" 1/2" - 14 Male NPTF Brass 1.69"
(42.9mm)		 1.01"
(25.7mm)		 7/8"
CM4M6-B Plug/Male 1/2" 3/4" - 14 Male NPTF Brass 1.79"
(45.5mm)		 1.23"
(31.2mm)		 1-1/16"
