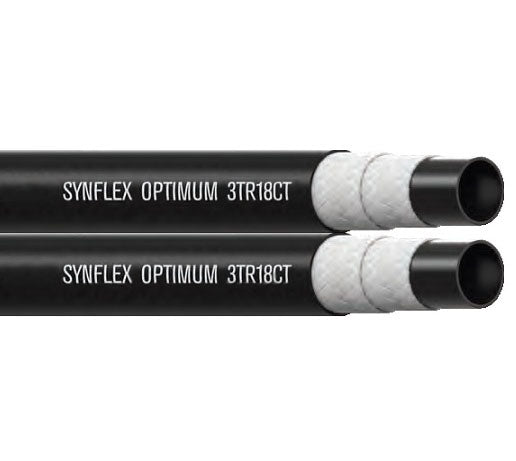

3TR18CT-04-2-250BX Synflex Optimum by Danfoss | 3TR18CT Twin Line Thermoplastic Constant Pressure Hydraulic Hose (SAE 100R18) | -04 Hose | 250ft / Box (Two Pieces)

3TR18CT-04-2-250BX Synflex Optimum by Danfoss | 3TR18CT Twin Line Thermoplastic Constant Pressure Hydraulic Hose | SAE 100R18 | -04 Hose | Old Part # 30CT-04 | 250ft / Box (Two Pieces)

$2,009.25 - $2,009.25
$2,009.25
$2,009.25 - $2,009.25
$2,009.25

Synflex Optimum by Danfoss
3TR18CT Thermoplastic Constant Pressure Hydraulic Hose - SAE 100R18

3TR18CT supersedes 30CT

Package Quantity: 250 FT

Specifications for Variant SKU: 3TR18CT-04-2-250BX Danfoss | 250 |
Brand: Aeroquip, Synflex Optimum
Series: 3TR18CT Series
Hose Color(s): Black
Dash Size: -4
Internal Diameter: 0.25in
Outer Diameter: 0.48in
Tubing Construction: Polyester
Cover Construction: Polyurethane
Applicable Specs & Approvals: SAE 100R18
Special Properties: Twin Line

SPECIFICATIONS

Applications: Agriculture, Horticulture, Chemical & gas transfer, Forestry delimber, Forklifts, Freezer applications, General construction, General hydraulics, Lubrication systems, Machine tools & robotics, Portable hydraulic tools
SAE Rating: SAE 100R18 Other Ratings: N/A
Tube: Polyester Reinforcement: 2-synthetic fiber braid
Cover: Nonstick polyurethane Temperature Range: For oil-based fluids: -54°C to +100°C (-65°F to +212°F)
For water-based fluids: -54°C to +66°C (-65°F to +150°F)
Approved Fittings: 4TA series Part Number Key BC: Continuous length in box
BX: 2 lengths per box, no length less than 20 ft.
RL: Random length reel, 2 lengths per reel, no length less than 20 ft.
R: Continuous length on reel
Other Features:
  • UV / Ozone Protection: The thermoplastic polyurethane and polyester outer-cover resists ozone, ultraviolent light and aging.
  • Easier Routing and Installation: Eaton Synflex Optimum 100R7 and 100R8 hose covers were formulated to require 50% less routing force reducing the chance of kinking.
  • Custom Thermoforming: Ability to mold into configurations that match system design.
  • Higher Abrasion Resistance: The new TPU and polyester cover increases abrasion resistant by 10%.
  • Powerful Performance: Lift and handle heavy loads with hose power ranges extending from 1,015 psi to 5,000 psi.
  • Chemical Resistance: Thermoplastic composition paired with nylon lining prevents absorption of most oils and hydraulic fluids.
  • Flexible Design: Lightweight hose design drives performance efficiencies, reducing vehicle power requirements.
  • Lighter Weight: Synthetic reinforced thermoplastic hoses are about 2x lighter then equivalent wire braided rubber hose.
  • Bonding Capabilities: Synflex thermoplastic hoses can be permanently joined without the use of any mechanical devices.
  • System Cleanliness: Thermoplastic hose will not degrade or create contaminants in filters and valves to help you maintain a clean system.
  • Noise Reduction: Special reinforcements on the thermoplastic hoses help reduce machine noise.
50ft Box (Two Pieces)
Part Number Hose Size Hose ID Hose OD Working Pressure Min. Burst
Pressure		 Min. Bend
Radius		 Standard
Length		 Weight
in. in. bar PSI bar PSI in. kg/m lbs/ft
3TR18CT-04-050BX -04 0.25" 0.48" 210 bar 3050 PSI 840 bar 12200 PSI 1.25" 50ft 0,09 kg/m 0.06 lbs/ft
3TR18CT-05-050BX -05 0.31" 0.58" 210 bar 3050 PSI 840 bar 12200 PSI 1.50" 50ft 0,15 kg/m 0.10 lbs/ft
3TR18CT-06-050BX -06 0.38" 0.66" 210 bar 3050 PSI 840 bar 12200 PSI 2.00" 50ft 0,16 kg/m 0.11 lbs/ft
3TR18CT-08-050BX -08 0.50" 0.85" 210 bar 3050 PSI 840 bar 12200 PSI 2.75" 50ft 0,25 kg/m 0.17 lbs/ft
3TR18CT-10-050BX -10 0.63" 1.06" 210 bar 3050 PSI 840 bar 12200 PSI 4.00" 50ft 0,41 kg/m 0.28 lbs/ft
250ft / Box (Two Pieces)
Part Number Hose Size Hose ID Hose OD Working Pressure Min. Burst
Pressure		 Min. Bend
Radius		 Standard
Length		 Weight
in. in. bar PSI bar PSI in. kg/m lbs/ft
3TR18CT-04-250BX -04 0.25" 0.48" 210 bar 3050 PSI 840 bar 12200 PSI 1.25" 250ft 0,09 kg/m 0.06 lbs/ft
3TR18CT-05-250BX -05 0.31" 0.58" 210 bar 3050 PSI 840 bar 12200 PSI 1.50" 250ft 0,15 kg/m 0.10 lbs/ft
3TR18CT-06-250BX -06 0.38" 0.66" 210 bar 3050 PSI 840 bar 12200 PSI 2.00" 250ft 0,16 kg/m 0.11 lbs/ft
3TR18CT-08-250BX -08 0.50" 0.85" 210 bar 3050 PSI 840 bar 12200 PSI 2.75" 250ft 0,25 kg/m 0.17 lbs/ft
3TR18CT-10-250BX -10 0.63" 1.06" 210 bar 3050 PSI 840 bar 12200 PSI 4.00" 250ft 0,41 kg/m 0.28 lbs/ft
250ft / Box (One Continuous Piece)
Part Number Hose Size Hose ID Hose OD Working Pressure Min. Burst
Pressure		 Min. Bend
Radius		 Standard
Length		 Weight
in. in. bar PSI bar PSI in. kg/m lbs/ft
3TR18CT-04-250BC -04 0.25" 0.48" 210 bar 3050 PSI 840 bar 12200 PSI 1.25" 250ft 0,09 kg/m 0.06 lbs/ft
3TR18CT-05-250BC -05 0.31" 0.58" 210 bar 3050 PSI 840 bar 12200 PSI 1.50" 250ft 0,15 kg/m 0.10 lbs/ft
3TR18CT-06-250BC -06 0.38" 0.66" 210 bar 3050 PSI 840 bar 12200 PSI 2.00" 250ft 0,16 kg/m 0.11 lbs/ft
3TR18CT-08-250BC -08 0.50" 0.85" 210 bar 3050 PSI 840 bar 12200 PSI 2.75" 250ft 0,25 kg/m 0.17 lbs/ft
3TR18CT-10-250BC -10 0.63" 1.06" 210 bar 3050 PSI 840 bar 12200 PSI 4.00" 250ft 0,41 kg/m 0.28 lbs/ft
500ft Reel (Two Pieces)
Part Number Hose Size Hose ID Hose OD Working Pressure Min. Burst
Pressure		 Min. Bend
Radius		 Standard
Length		 Weight
in. in. bar PSI bar PSI in. kg/m lbs/ft
3TR18CT-04-500RL -04 0.25" 0.48" 210 bar 3050 PSI 840 bar 12200 PSI 1.25" 500ft 0,09 kg/m 0.06 lbs/ft
3TR18CT-05-500RL -05 0.31" 0.58" 210 bar 3050 PSI 840 bar 12200 PSI 1.50" 500ft 0,15 kg/m 0.10 lbs/ft
3TR18CT-06-500RL -06 0.38" 0.66" 210 bar 3050 PSI 840 bar 12200 PSI 2.00" 500ft 0,16 kg/m 0.11 lbs/ft
3TR18CT-08-500RL -08 0.50" 0.85" 210 bar 3050 PSI 840 bar 12200 PSI 2.75" 500ft 0,25 kg/m 0.17 lbs/ft
3TR18CT-10-500RL -10 0.63" 1.06" 210 bar 3050 PSI 840 bar 12200 PSI 4.00" 500ft 0,41 kg/m 0.28 lbs/ft
Twin Line: 250ft / Box (Two Pieces)
Part Number Hose Size Hose ID Hose OD Working Pressure Min. Burst
Pressure		 Min. Bend
Radius		 Standard
Length		 Weight
in. in. bar PSI bar PSI in. kg/m lbs/ft
3TR18CT-04-2-250BX -04 0.25" 0.48" 210 bar 3050 PSI 840 bar 12200 PSI 1.25" 250ft 0,09 kg/m 0.06 lbs/ft
3TR18CT-05-2-250BX -05 0.31" 0.58" 210 bar 3050 PSI 840 bar 12200 PSI 1.50" 250ft 0,15 kg/m 0.10 lbs/ft
3TR18CT-06-2-250BX -06 0.38" 0.66" 210 bar 3050 PSI 840 bar 12200 PSI 2.00" 250ft 0,16 kg/m 0.11 lbs/ft
3TR18CT-08-2-250BX -08 0.50" 0.85" 210 bar 3050 PSI 840 bar 12200 PSI 2.75" 250ft 0,25 kg/m 0.17 lbs/ft
Triple Line: 250ft / Box (Two Pieces)
Part Number Hose Size Hose ID Hose OD Working Pressure Min. Burst
Pressure		 Min. Bend
Radius		 Standard
Length		 Weight
in. in. bar PSI bar PSI in. kg/m lbs/ft
3TR18CT-06-3-250BX -06 0.38" 0.66" 210 bar 3050 PSI 840 bar 12200 PSI 2.00" 250ft 0,16 kg/m 0.11 lbs/ft
3TR18CT-08-3-250BX -08 0.50" 0.85" 210 bar 3050 PSI 840 bar 12200 PSI 2.75" 250ft 0,25 kg/m 0.17 lbs/ft
Triple Line: 500ft Reel (One Continuous Piece)
Part Number Hose Size Hose ID Hose OD Working Pressure Min. Burst
Pressure		 Min. Bend
Radius		 Standard
Length		 Weight
in. in. bar PSI bar PSI in. kg/m lbs/ft
3TR18CT-08-3-500R -08 0.50" 0.85" 210 bar 3050 PSI 840 bar 12200 PSI 2.75" 500ft 0,25 kg/m 0.17 lbs/ft
