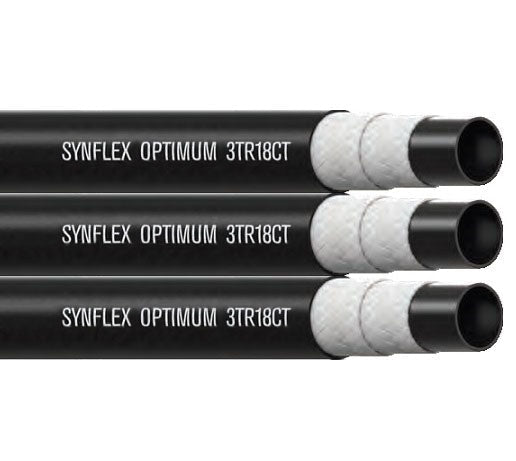

3TR18CT-06-3-250BX Synflex Optimum by Danfoss | 3TR18CT Triple Line Thermoplastic Constant Pressure Hydraulic Hose (SAE 100R18) | -06 Hose | 250ft / Box (Two Pieces)

3TR18CT-06-3-250BX Synflex Optimum by Danfoss | 3TR18CT Triple Line Thermoplastic Constant Pressure Hydraulic Hose | SAE 100R18 | -06 Hose | Old Part # 30CT-06 | 250ft / Box (Two Pieces)

$3,887.40 - $3,887.40

$3,887.40

$3,887.40 - $3,887.40

$3,887.40

Synflex Optimum by Danfoss
3TR18CT Thermoplastic Constant Pressure Hydraulic Hose - SAE 100R18

3TR18CT supersedes 30CT

Package Quantity: 250 FT

Quantity

Specifications for Variant SKU: 3TR18CT-06-3-250BX Danfoss \| 250 \|
Brand:	Aeroquip, Synflex Optimum
Series:	3TR18CT Series
Hose Color(s):	Black
Dash Size:	-6
Internal Diameter:	0.38in
Outer Diameter:	0.66in
Tubing Construction:	Polyester
Cover Construction:	Polyurethane
Applicable Specs & Approvals:	SAE 100R18
Special Properties:	Triple Line

SPECIFICATIONS

Other Features:
Applications:	Agriculture, Horticulture, Chemical & gas transfer, Forestry delimber, Forklifts, Freezer applications, General construction, General hydraulics, Lubrication systems, Machine tools & robotics, Portable hydraulic tools
SAE Rating:	SAE 100R18	Other Ratings:	N/A
Tube:	Polyester	Reinforcement:	2-synthetic fiber braid
Cover:	Nonstick polyurethane	Temperature Range:	For oil-based fluids: -54°C to +100°C (-65°F to +212°F) For water-based fluids: -54°C to +66°C (-65°F to +150°F)
Approved Fittings:	4TA series	Part Number Key	BC: Continuous length in box BX: 2 lengths per box, no length less than 20 ft. RL: Random length reel, 2 lengths per reel, no length less than 20 ft. R: Continuous length on reel
UV / Ozone Protection: The thermoplastic polyurethane and polyester outer-cover resists ozone, ultraviolent light and aging. Easier Routing and Installation: Eaton Synflex Optimum 100R7 and 100R8 hose covers were formulated to require 50% less routing force reducing the chance of kinking. Custom Thermoforming: Ability to mold into configurations that match system design. Higher Abrasion Resistance: The new TPU and polyester cover increases abrasion resistant by 10%. Powerful Performance: Lift and handle heavy loads with hose power ranges extending from 1,015 psi to 5,000 psi. Chemical Resistance: Thermoplastic composition paired with nylon lining prevents absorption of most oils and hydraulic fluids. Flexible Design: Lightweight hose design drives performance efficiencies, reducing vehicle power requirements. Lighter Weight: Synthetic reinforced thermoplastic hoses are about 2x lighter then equivalent wire braided rubber hose. Bonding Capabilities: Synflex thermoplastic hoses can be permanently joined without the use of any mechanical devices. System Cleanliness: Thermoplastic hose will not degrade or create contaminants in filters and valves to help you maintain a clean system. Noise Reduction: Special reinforcements on the thermoplastic hoses help reduce machine noise.

50ft Box (Two Pieces)
Part Number	Hose Size	Hose ID	Hose OD	Working Pressure		Min. Burst Pressure		Min. Bend Radius	Standard Length	Weight
Part Number	Hose Size	in.	in.	bar	PSI	bar	PSI	in.	Standard Length	kg/m	lbs/ft
3TR18CT-04-050BX	-04	0.25"	0.48"	210 bar	3050 PSI	840 bar	12200 PSI	1.25"	50ft	0,09 kg/m	0.06 lbs/ft
3TR18CT-05-050BX	-05	0.31"	0.58"	210 bar	3050 PSI	840 bar	12200 PSI	1.50"	50ft	0,15 kg/m	0.10 lbs/ft
3TR18CT-06-050BX	-06	0.38"	0.66"	210 bar	3050 PSI	840 bar	12200 PSI	2.00"	50ft	0,16 kg/m	0.11 lbs/ft
3TR18CT-08-050BX	-08	0.50"	0.85"	210 bar	3050 PSI	840 bar	12200 PSI	2.75"	50ft	0,25 kg/m	0.17 lbs/ft
3TR18CT-10-050BX	-10	0.63"	1.06"	210 bar	3050 PSI	840 bar	12200 PSI	4.00"	50ft	0,41 kg/m	0.28 lbs/ft

250ft / Box (Two Pieces)
Part Number	Hose Size	Hose ID	Hose OD	Working Pressure		Min. Burst Pressure		Min. Bend Radius	Standard Length	Weight
Part Number	Hose Size	in.	in.	bar	PSI	bar	PSI	in.	Standard Length	kg/m	lbs/ft
3TR18CT-04-250BX	-04	0.25"	0.48"	210 bar	3050 PSI	840 bar	12200 PSI	1.25"	250ft	0,09 kg/m	0.06 lbs/ft
3TR18CT-05-250BX	-05	0.31"	0.58"	210 bar	3050 PSI	840 bar	12200 PSI	1.50"	250ft	0,15 kg/m	0.10 lbs/ft
3TR18CT-06-250BX	-06	0.38"	0.66"	210 bar	3050 PSI	840 bar	12200 PSI	2.00"	250ft	0,16 kg/m	0.11 lbs/ft
3TR18CT-08-250BX	-08	0.50"	0.85"	210 bar	3050 PSI	840 bar	12200 PSI	2.75"	250ft	0,25 kg/m	0.17 lbs/ft
3TR18CT-10-250BX	-10	0.63"	1.06"	210 bar	3050 PSI	840 bar	12200 PSI	4.00"	250ft	0,41 kg/m	0.28 lbs/ft

250ft / Box (One Continuous Piece)
Part Number	Hose Size	Hose ID	Hose OD	Working Pressure		Min. Burst Pressure		Min. Bend Radius	Standard Length	Weight
Part Number	Hose Size	in.	in.	bar	PSI	bar	PSI	in.	Standard Length	kg/m	lbs/ft
3TR18CT-04-250BC	-04	0.25"	0.48"	210 bar	3050 PSI	840 bar	12200 PSI	1.25"	250ft	0,09 kg/m	0.06 lbs/ft
3TR18CT-05-250BC	-05	0.31"	0.58"	210 bar	3050 PSI	840 bar	12200 PSI	1.50"	250ft	0,15 kg/m	0.10 lbs/ft
3TR18CT-06-250BC	-06	0.38"	0.66"	210 bar	3050 PSI	840 bar	12200 PSI	2.00"	250ft	0,16 kg/m	0.11 lbs/ft
3TR18CT-08-250BC	-08	0.50"	0.85"	210 bar	3050 PSI	840 bar	12200 PSI	2.75"	250ft	0,25 kg/m	0.17 lbs/ft
3TR18CT-10-250BC	-10	0.63"	1.06"	210 bar	3050 PSI	840 bar	12200 PSI	4.00"	250ft	0,41 kg/m	0.28 lbs/ft

500ft Reel (Two Pieces)
Part Number	Hose Size	Hose ID	Hose OD	Working Pressure		Min. Burst Pressure		Min. Bend Radius	Standard Length	Weight
Part Number	Hose Size	in.	in.	bar	PSI	bar	PSI	in.	Standard Length	kg/m	lbs/ft
3TR18CT-04-500RL	-04	0.25"	0.48"	210 bar	3050 PSI	840 bar	12200 PSI	1.25"	500ft	0,09 kg/m	0.06 lbs/ft
3TR18CT-05-500RL	-05	0.31"	0.58"	210 bar	3050 PSI	840 bar	12200 PSI	1.50"	500ft	0,15 kg/m	0.10 lbs/ft
3TR18CT-06-500RL	-06	0.38"	0.66"	210 bar	3050 PSI	840 bar	12200 PSI	2.00"	500ft	0,16 kg/m	0.11 lbs/ft
3TR18CT-08-500RL	-08	0.50"	0.85"	210 bar	3050 PSI	840 bar	12200 PSI	2.75"	500ft	0,25 kg/m	0.17 lbs/ft
3TR18CT-10-500RL	-10	0.63"	1.06"	210 bar	3050 PSI	840 bar	12200 PSI	4.00"	500ft	0,41 kg/m	0.28 lbs/ft

Twin Line: 250ft / Box (Two Pieces)
Part Number	Hose Size	Hose ID	Hose OD	Working Pressure		Min. Burst Pressure		Min. Bend Radius	Standard Length	Weight
Part Number	Hose Size	in.	in.	bar	PSI	bar	PSI	in.	Standard Length	kg/m	lbs/ft
3TR18CT-04-2-250BX	-04	0.25"	0.48"	210 bar	3050 PSI	840 bar	12200 PSI	1.25"	250ft	0,09 kg/m	0.06 lbs/ft
3TR18CT-05-2-250BX	-05	0.31"	0.58"	210 bar	3050 PSI	840 bar	12200 PSI	1.50"	250ft	0,15 kg/m	0.10 lbs/ft
3TR18CT-06-2-250BX	-06	0.38"	0.66"	210 bar	3050 PSI	840 bar	12200 PSI	2.00"	250ft	0,16 kg/m	0.11 lbs/ft
3TR18CT-08-2-250BX	-08	0.50"	0.85"	210 bar	3050 PSI	840 bar	12200 PSI	2.75"	250ft	0,25 kg/m	0.17 lbs/ft

Triple Line: 250ft / Box (Two Pieces)
Part Number	Hose Size	Hose ID	Hose OD	Working Pressure		Min. Burst Pressure		Min. Bend Radius	Standard Length	Weight
Part Number	Hose Size	in.	in.	bar	PSI	bar	PSI	in.	Standard Length	kg/m	lbs/ft
3TR18CT-06-3-250BX	-06	0.38"	0.66"	210 bar	3050 PSI	840 bar	12200 PSI	2.00"	250ft	0,16 kg/m	0.11 lbs/ft
3TR18CT-08-3-250BX	-08	0.50"	0.85"	210 bar	3050 PSI	840 bar	12200 PSI	2.75"	250ft	0,25 kg/m	0.17 lbs/ft

Triple Line: 500ft Reel (One Continuous Piece)
Part Number	Hose Size	Hose ID	Hose OD	Working Pressure		Min. Burst Pressure		Min. Bend Radius	Standard Length	Weight
Part Number	Hose Size	in.	in.	bar	PSI	bar	PSI	in.	Standard Length	kg/m	lbs/ft
3TR18CT-08-3-500R	-08	0.50"	0.85"	210 bar	3050 PSI	840 bar	12200 PSI	2.75"	500ft	0,25 kg/m	0.17 lbs/ft

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
