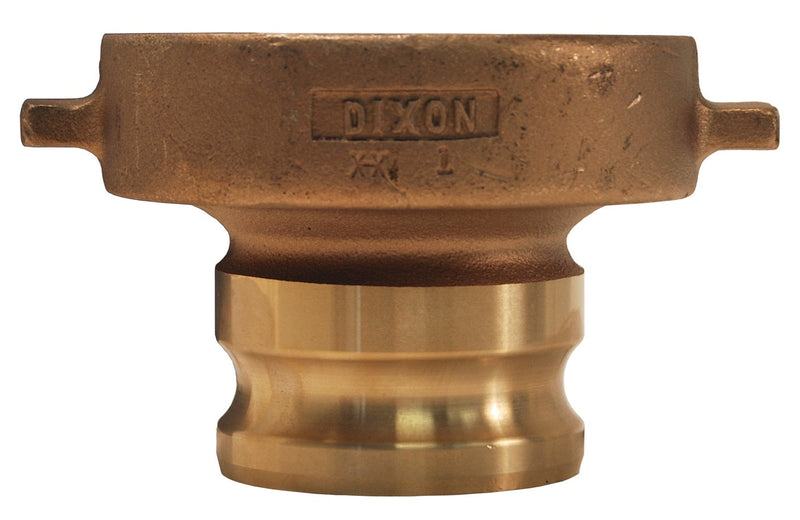

400-TCA-BR by Dixon Valve | Tank Car Adapter | 4" Adapter x 5" Railroad Tank Car Thread | Brass

400-TCA-BR by Dixon Valve | Tank Car Adapter | 4" Adapter x 5" Railroad Tank Car Thread | Brass

Save $192.51 Save $192.51
$481.27
$481.27 - $481.27
$481.27
$288.76
$288.76 - $288.76
$288.76

Dixon Valve
Tank Car Adapter
Specifications for Variant SKU: 400-TCA-BR Dixon
Shape (Orientation): Straight
Cam Type: Type A
Ends Configuration: Railroad Thread, 4in Male Cam & Groove
Material(s): Brass
Seal Material(s): Buna-N/Nitrile Rubber
Features:
  • Standard 5" Railroad Tank Car thread.
Construction:
  • Nitrile Rubber gasket in the threaded end.
How It Works:
  • To make a connection, simply slide the adapter into the coupler and with normal hand pressure, press the cam levers down.
  • Uncoupling is as quick and simple as coupling. Just lift the cam arms and remove the adapter.
Safety Notes:
  • Under no circumstances should cam and groove couplings be used for compressed air or steam service!
  • Stainless steel adapters are not compatible with the aluminum and brass adapters.
356T6 Aluminum
Part Number		 Brass
Part Number		 Iron
Part Number		 316 Stainless Steel
Part Number		 Size
200-TCA-AL - - 200-TCA-SS 2"
300-TCA-AL 300-TCA-BR 300-TCA-MI 300-TCA-SS 3"
400-TCA-AL 400-TCA-BR - 400-TCA-SS 4"

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
