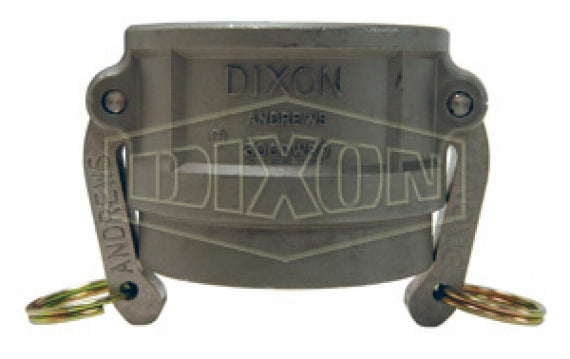

400DWSPSS by Dixon Valve | Cam & Groove Coupler for Welding | 4" Coupler Socket Weld x Schedule 40 Pipe | 316 Stainless Steel

Name: 400DWSPSS by Dixon Valve | Cam & Groove Coupler for Welding | 4" Coupler Socket Weld x Schedule 40 Pipe | 316 Stainless Steel
Brand: Dixon
SKU: 400DWSPSS Dixon
Price: 243.93 USD
Availability: InStock

Save $18.68

$262.61

$262.61 - $262.61

$262.61

$243.93

$243.93 - $243.93

$243.93

Dixon Valve
Cam & Groove Coupler for Welding | Coupler Socket Weld x Schedule 40 Pipe

Designed for use with liquids.

Quantity

Specifications for Variant SKU: 400DWSPSS Dixon
Shape (Orientation):	Straight
Ends Configuration:	4in Weld End, 4in Female Cam & Groove
Material(s):	316 Stainless Steel

Safety Notes:
Final weld preparation, as with all weld fittings, is the responsibility of the welder. Dixon and Boss-Lock cam & groove couplings do not interchange in the 8" size. The 8" Dixon design has 4 cam arms. Under no circumstances should cam and groove couplings be used for compressed air or steam service! Pressure rating recommendations are based on the use of mating Dixon fittings at ambient temperature 70°F / 21°C with a standard seal installed. For use at elevated temperature or other unusual operating conditions, consult Dixon.
Specifications:
Produced to interchange with all product produced to Commercial Item Description A-A-59326D.

356T6 Aluminum Part Number	316 Stainless Steel Part Number	Size	Bore	Max. Operating Pressure
-	75DWSPSS	3/4"	1.065"	250 PSI
100DWSPAL	100DWSPSS	1"	1.330"	250 PSI
150DWSPAL	150DWSPSS	1-1/2"	1.915"	250 PSI
200DWSPAL	200DWSPSS	2"	2.390"	250 PSI
300DWSPAL	300DWSPSS	3"	3.530"	125 PSI
400DWSPAL	400DWSPSS	4"	4.530"	100 PSI
500DWSPAL	500DWSPSS	5"	5.562"	75 PSI
600DWSPAL	600DWSPSS	6"	6.655"	75 PSI
800DWSPAL	-	8"	8.711"	50 PSI

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
