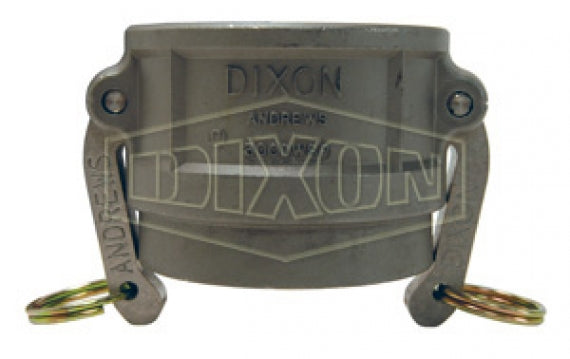

600DWSPSS by Dixon Valve | Cam & Groove Coupler for Welding | 6" Coupler Socket Weld x Schedule 40 Pipe | 316 Stainless Steel

600DWSPSS by Dixon Valve | Cam & Groove Coupler for Welding | 6" Coupler Socket Weld x Schedule 40 Pipe | 316 Stainless Steel

Save $357.79 Save $357.79
$894.48
$894.48 - $894.48
$894.48
$536.69
$536.69 - $536.69
$536.69

Dixon Valve
Cam & Groove Coupler for Welding | Coupler Socket Weld x Schedule 40 Pipe

Designed for use with liquids.
Specifications for Variant SKU: 600DWSPSS Dixon
Shape (Orientation): Straight
Ends Configuration: 6in Weld End, 6in Female Cam & Groove
Material(s): 316 Stainless Steel
Safety Notes:
  • Final weld preparation, as with all weld fittings, is the responsibility of the welder.
  • Dixon and Boss-Lock cam & groove couplings do not interchange in the 8" size.
  • The 8" Dixon design has 4 cam arms.
  • Under no circumstances should cam and groove couplings be used for compressed air or steam service!
  • Pressure rating recommendations are based on the use of mating Dixon fittings at ambient temperature 70°F / 21°C with a standard seal installed. For use at elevated temperature or other unusual operating conditions, consult Dixon.
Specifications:
  • Produced to interchange with all product produced to Commercial Item Description A-A-59326D.
356T6 Aluminum
Part Number		 316 Stainless Steel
Part Number		 Size Bore Max. Operating Pressure
- 75DWSPSS 3/4" 1.065" 250 PSI
100DWSPAL 100DWSPSS 1" 1.330" 250 PSI
150DWSPAL 150DWSPSS 1-1/2" 1.915" 250 PSI
200DWSPAL 200DWSPSS 2" 2.390" 250 PSI
300DWSPAL 300DWSPSS 3" 3.530" 125 PSI
400DWSPAL 400DWSPSS 4" 4.530" 100 PSI
500DWSPAL 500DWSPSS 5" 5.562" 75 PSI
600DWSPAL 600DWSPSS 6" 6.655" 75 PSI
800DWSPAL - 8" 8.711" 50 PSI
Dixon Valve & Coupling

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
