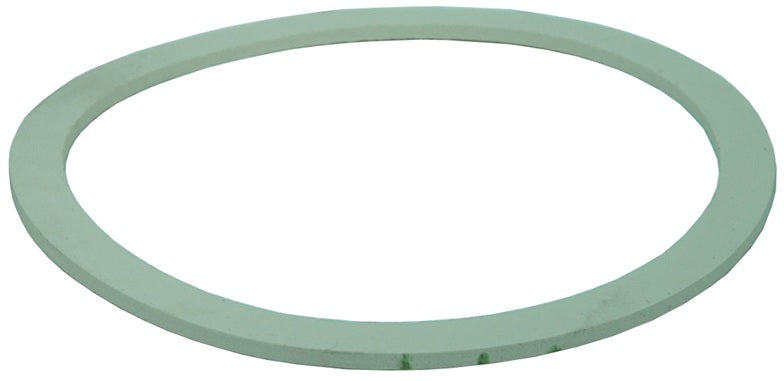

40IE250 Dixon Valve 2-1/2" Sanitary EPDM I-Line Gasket - White
40IE250 Dixon 2-1/2" Sanitary EPDM I-Line Gasket - White
40IE250 Dixon 2-1/2" Sanitary EPDM I-Line Gasket - White

40IE250 Dixon Valve 2-1/2" Sanitary EPDM I-Line Gasket - White

Save $1.98 Save $1.98
$5.50
$5.50 - $5.50
$5.50
$3.52
$3.52 - $3.52
$3.52

Dixon Sanitary Fittings Sanitary I-Line Gasket - EPDM I-Line Gasket - White
Specifications for Variant SKU: 40IE250 Dixon
Seal Material(s): EPDM
Features:
  • Color code: Three green dots
  • Meets 21CFR 177.2600.
  • Passed USP class VI cytotoxicity testing.
  • Peroxide cured.
Part Number Tube OD Thickness Color Code Weight (Lbs.)
40IE100 1" 3/32" Three green dots 0.0020
40IE150 1-1/2" 3/32" Three green dots 0.0050
40IE200 2" 3/32" Three green dots 0.0025
40IE250 2-1/2" 3/32" Three green dots 0.0050
40IE300 3" 3/32" Three green dots 0.0100
40IE400 4" 3/32" Three green dots 0.0100
40IE600 6" 3/32" Three green dots 0.0350
40IE800 8" 3/32" Three green dots 0.0350

40IE20016 2" 1/16" Three green dots 0.0050
40IE25016 2-1/2" 1/16" Three green dots 0.1000
40IE30016 3" 1/16" Three green dots 0.0050
40IE40016 4" 1/16" Three green dots 0.2000
40IE60016 6" 1/16" Three green dots 0.2000
40IE80016 8" 1/16" Three green dots 0.0350
