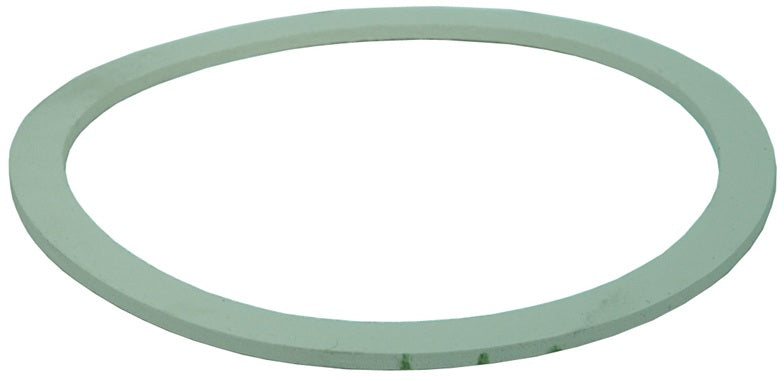

40IE40016 Dixon Valve 4" Sanitary EPDM I-Line Gasket (1/16" Thickness) - White
40IE40016 Dixon Valve 4" Sanitary EPDM I-Line Gasket (1/16" Thickness) - White

40IE40016 Dixon Valve 4" Sanitary EPDM I-Line Gasket (1/16" Thickness) - White

Save $3.42 Save $3.42
$8.55
$8.55 - $8.55
$8.55
$5.13
$5.13 - $5.13
$5.13

Dixon Sanitary Fittings Sanitary I-Line Gasket - EPDM I-Line Gasket - White
Specifications for Variant SKU: 40IE40016 Dixon
Seal Material(s): EPDM
Features:
  • Color code: Three green dots
  • Meets 21CFR 177.2600.
  • Passed USP class VI cytotoxicity testing.
  • Peroxide cured.
Part Number Tube OD Thickness Color Code Weight (Lbs.)
40IE100 1" 3/32" Three green dots 0.0020
40IE150 1-1/2" 3/32" Three green dots 0.0050
40IE200 2" 3/32" Three green dots 0.0025
40IE250 2-1/2" 3/32" Three green dots 0.0050
40IE300 3" 3/32" Three green dots 0.0100
40IE400 4" 3/32" Three green dots 0.0100
40IE600 6" 3/32" Three green dots 0.0350
40IE800 8" 3/32" Three green dots 0.0350

40IE20016 2" 1/16" Three green dots 0.0050
40IE25016 2-1/2" 1/16" Three green dots 0.1000
40IE30016 3" 1/16" Three green dots 0.0050
40IE40016 4" 1/16" Three green dots 0.2000
40IE60016 6" 1/16" Three green dots 0.2000
40IE80016 8" 1/16" Three green dots 0.0350
Dixon Valve & Coupling

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
