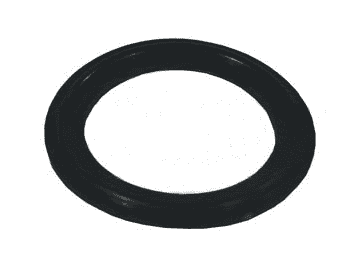

40MP-U500 Dixon 5" Buna-N Sanitary Clamp Gasket - Black

40MP-U500 Dixon Valve 5" Buna-N Sanitary Clamp Gasket - Black

Name: 40MP-U500 Dixon Valve 5" Buna-N Sanitary Clamp Gasket - Black
Brand: Dixon
SKU: 40MP-U500 Dixon
Price: 3.57 USD
Availability: InStock

Save $2.04

$5.61

$5.61 - $5.61

$5.61

$3.57

$3.57 - $3.57

$3.57

Dixon Sanitary Clamp Gaskets - Buna-N Clamp Gaskets - Black

Quantity

Specifications for Variant SKU: 40MP-U500 Dixon
Seal Material(s):	Buna-N/Nitrile Rubber

Features:
Color Code: No dot for 1/2" and 3/4". Red dot for 1" - 8" Meets 21CFR 177.2600 Passed U.S.P. Class VI Cytotoxicity testing. Peroxide cured. Gasket material approved by (3A), USDA. PSI Service Ratings for the sanitary clamps DO NOT APPLY to connections (1" and above) using any PTFE gaskets, due to the potential for cold flow under normal operating conditions. PTFE gaskets, when used with any clamp, are likely to leak at pressures far below the published service ratings. This restriction does not apply to the fractionally sized 1/2" and 3/4" connections, due to their recessed, fully contained design.

Sanitary Size	Gasket ID	Gasket OD	OD of Clamp End	ID of Fitting	Sanitary Size	Gasket ID	Gasket OD	OD of Clamp End	ID of Fitting
1/2"	0.46	0.86	0.992	0.370	3"	2.870	3.579	3.579	2.870
3/4"	0.64	0.86	0.992	0.620	4"	3.834	4.682	4.682	3.834
1"	0.870	1.984	1.984	0.870	6"	5.782	6.562	6.562	5.782
1-1/2"	1.370	1.984	1.984	1.370	8"	N/A	N/A	8.602	7.782
2"	1.870	2.516	2.516	1.870	10"	N/A	N/A	10.570	9.782
2-1/2"	2.370	3.047	3.047	2.370	12"	N/A	N/A	12.570	11.760

Part Number	Size	Color Code	Weight (Lbs.)
42MP-U50	1/2"	No dot	0.0025
42MP-U75	3/4"	No dot	0.0100
40MP-U100	1"	Red dot	0.0100
40MP-U150	1-1/2"	Red dot	0.0050
40MP-U200	2"	Red dot	0.0110
40MP-U250	2-1/2"	Red dot	0.0100
40MP-U300	3"	Red dot	0.0175
40MP-U400	4"	Red dot	0.0300
40MP-U500	5"	Red dot	0.4000
40MP-U600	6"	Red dot	0.0300
40MP-U800	8"	Red dot	0.0500

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
