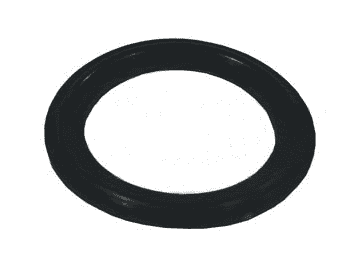

40MP-U600 Dixon 6" Buna-N Sanitary Clamp Gasket - Black

40MP-U600 Dixon Valve 6" Buna-N Sanitary Clamp Gasket - Black - Pack of 50

Save $33.94 Save $33.94
$305.44
$305.44 - $305.44
$305.44
$271.50
$271.50 - $271.50
$271.50

Dixon Sanitary Clamp Gaskets - Buna-N Clamp Gaskets - Black

Package Quantity: 50 Gaskets

Specifications for Variant SKU: 40MP-U600 Dixon | 50 |
Seal Material(s): Buna-N/Nitrile Rubber
Features:
  • Color Code: No dot for 1/2" and 3/4". Red dot for 1" - 8"
  • Meets 21CFR 177.2600
  • Passed U.S.P. Class VI Cytotoxicity testing.
  • Peroxide cured.
  • Gasket material approved by (3A), USDA.
  • PSI Service Ratings for the sanitary clamps DO NOT APPLY to connections (1" and above) using any PTFE gaskets, due to the potential for cold flow under normal operating conditions.
  • PTFE gaskets, when used with any clamp, are likely to leak at pressures far below the published service ratings. This restriction does not apply to the fractionally sized 1/2" and 3/4" connections, due to their recessed, fully contained design.
Sanitary Size Gasket ID Gasket OD OD of Clamp End ID of Fitting Sanitary Size Gasket ID Gasket OD OD of Clamp End ID of Fitting
1/2" 0.46 0.86 0.992 0.370 3" 2.870 3.579 3.579 2.870
3/4" 0.64 0.86 0.992 0.620 4" 3.834 4.682 4.682 3.834
1" 0.870 1.984 1.984 0.870 6" 5.782 6.562 6.562 5.782
1-1/2" 1.370 1.984 1.984 1.370 8" N/A N/A 8.602 7.782
2" 1.870 2.516 2.516 1.870 10" N/A N/A 10.570 9.782
2-1/2" 2.370 3.047 3.047 2.370 12" N/A N/A 12.570 11.760
Part Number Size Color Code Weight (Lbs.)
42MP-U50 1/2" No dot 0.0025
42MP-U75 3/4" No dot 0.0100
40MP-U100 1" Red dot 0.0100
40MP-U150 1-1/2" Red dot 0.0050
40MP-U200 2" Red dot 0.0110
40MP-U250 2-1/2" Red dot 0.0100
40MP-U300 3" Red dot 0.0175
40MP-U400 4" Red dot 0.0300
40MP-U500 5" Red dot 0.4000
40MP-U600 6" Red dot 0.0300
40MP-U800 8" Red dot 0.0500
Dixon Valve & Coupling

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
