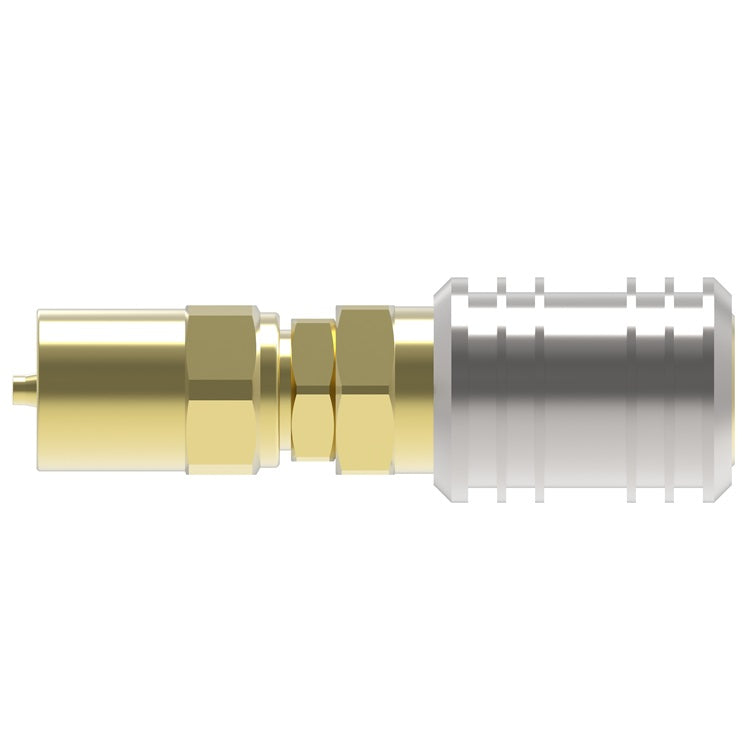

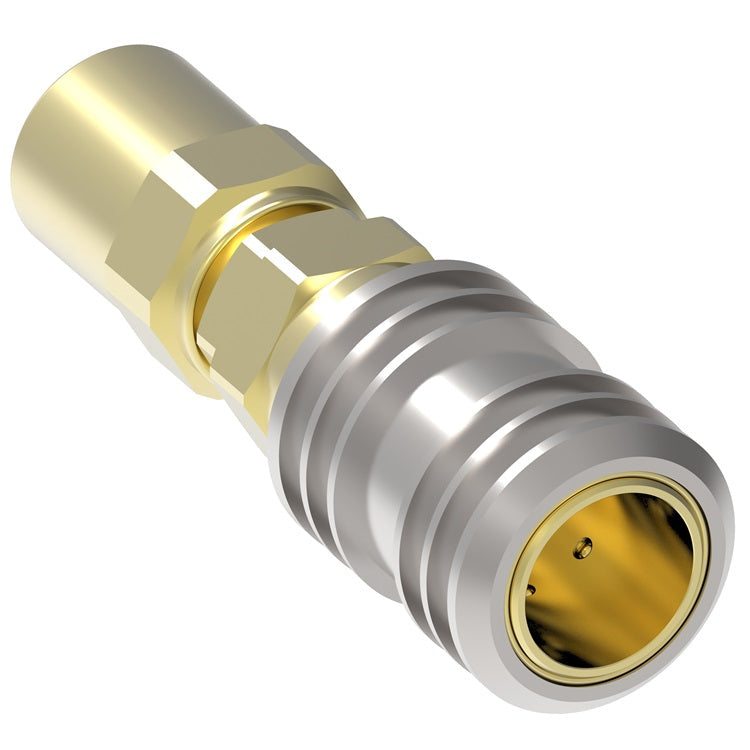

40SP13 Hansen® by Danfoss | Pneumatic Quick Disconnect Coupling | 400 Series | Hose Crimp End | 13/16" Hose OD | 1/2" Hose ID x 3/8" Body Size | Socket | NBR Seal | Brass

40SP13 Hansen® by Danfoss | Pneumatic Quick Disconnect Coupling | 400 Series | Hose Crimp End | 13/16" Hose OD | 1/2" Hose ID x 3/8" Body Size | Socket | NBR Seal | Brass

$47.14 - $47.14

$47.14

$47.14 - $47.14

$47.14

Hansen® by Danfoss
Pneumatic Quick Disconnect Coupling | 400 Series

Quick Disconnect for Pneumatic Applications.

Danfoss Hansen 1000/400/500 Series is an Industrial Interchange pneumatic coupling that is rugged and reliable designed for use with compressed air, gases, and liquids.

400 series accepts Tru-Flate Interchange.

Specifications for Variant SKU: 40SP13 Danfoss
Brand:	Hansen
Series:	400 Series
Shape (Orientation):	Straight
Material(s):	Brass, Nickel-Plated Steel
Seal Material(s):	Buna-N/Nitrile Rubber

Features:	Ball latching mechanism. All sizes accept US Industrial Interchange.
Applications & Markets:	General Pneumatics Construction Industrial Plants
Materials:	Standard body material: Brass, Steel, Stainless Steel, Nickel Plated Steel Sleeve Standard seal material: Nitrile (NBR)
Specifications:	1/4" & 1/2" accept ISO 6150 B and A-A-59439 plugs/males.

Series	Body Size	Max. Operating Pressure		Min. Burst Pressure		Rated Flow
400	3/8"	69 bar	1,000 psi	276 bar	4,000 psi	1,274 lpm	336 gpm

Interchangeability
All Sizes	1/4" & 1/2"	400 Series
US Industrial Interchange	ISO 6150 Series B A-A-59439 (former MIL-C-4109)	Tru-Flate


Socket/Female (Figure 1)					Plug/Male (Figure 2)
400 Series \| Sockets
Part Number	Coupling Type	Body Size	Hose ID	Hose OD	End Type	Material	Figure	Dimensions
Part Number	Coupling Type	Body Size	Hose ID	Hose OD	End Type	Material	Figure	A	B	Hex
40SD7	Socket/Female	3/8"	3/8"	5/8"	Hose Crimp End	Brass	1	3.04" (77.22mm)	1.13" (28.70mm)	0.75" (19.05mm)
40SD9	Socket/Female	3/8"	3/8"	11/16"	Hose Crimp End	Brass	1	3.04" (77.22mm)	1.13" (28.70mm)	0.81" (20.57mm)
40SD11	Socket/Female	3/8"	3/8"	3/4"	Hose Crimp End	Brass	1	3.04" (77.22mm)	1.13" (28.70mm)	0.88" (22.35mm)
40SP13	Socket/Female	3/8"	1/2"	13/16"	Hose Crimp End	Brass	1	3.67" (93.22mm)	1.13" (28.70mm)	0.94" (23.88mm)
40SP15	Socket/Female	3/8"	1/2"	7/8"	Hose Crimp End	Brass	1	3.67" (93.22mm)	1.13" (28.70mm)	1.00" (25.40mm)
400 Series \| Plugs
Part Number	Coupling Type	Body Size	Hose ID	Hose OD	End Type	Material	Figure	Dimensions
Part Number	Coupling Type	Body Size	Hose ID	Hose OD	End Type	Material	Figure	C	D	Hex
4PB3	Plug/Male	3/8"	1/4"	1/2"	Hose Crimp End	Steel	2	2.44" (61.98mm)	0.70" (17.78mm)	0.63" (16.00mm)
4PB7	Plug/Male	3/8"	1/4"	5/8"	Hose Crimp End	Steel	2	2.44" (61.98mm)	0.84" (21.34mm)	0.75" (19.05mm)
4PD7	Plug/Male	3/8 "	3/8"	5/8"	Hose Crimp End	Steel	2	2.56" (65.02mm)	0.84" (21.34mm)	0.75" (19.05mm)
4PD9	Plug/Male	3/8 "	3/8"	11/16"	Hose Crimp End	Steel	2	2.56" (65.02mm)	0.91" (23.11mm)	0.81" (20.57mm)
4PD11	Plug/Male	3/8"	3/8"	3/4"	Hose Crimp End	Steel	2	2.56" (65.02mm)	0.98" (24.89mm)	0.88" (22.35mm)
4PP13	Plug/Male	3/8"	1/2"	13/16"	Hose Crimp End	Steel	2	3.25" (82.55mm)	1.05" (26.67mm)	0.94" (23.88mm)
4PP15	Plug/Male	3/8"	1/2"	7/8"	Hose Crimp End	Steel	2	3.25" (82.55mm)	1.12" (28.45mm)	1.00" (25.40mm)
