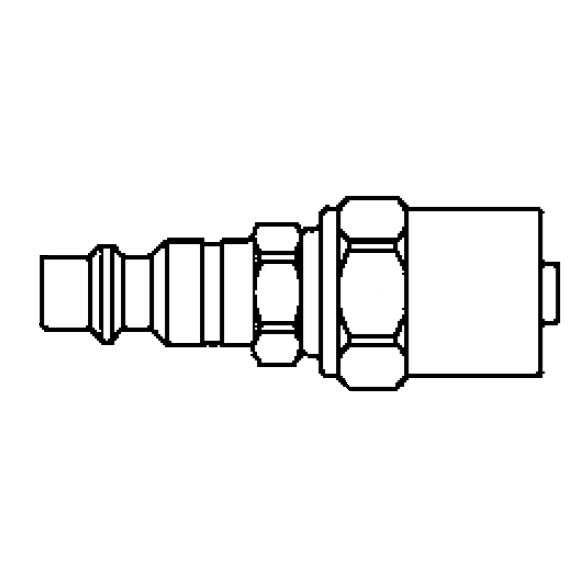

4PD9 Hansen® by Danfoss | Pneumatic Quick Disconnect Coupling | 400 Series / 4000 Series | Hose Crimp End | 11/16" Hose OD | 3/8" Hose ID x 3/8" Body Size | Plug | Steel

4PD9 Hansen® by Danfoss | Pneumatic Quick Disconnect Coupling | 400 Series / 4000 Series | Hose Crimp End | 11/16" Hose OD | 3/8" Hose ID x 3/8" Body Size | Plug | Steel

$20.88 - $20.88
$20.88
$20.88 - $20.88
$20.88

Hansen® by Danfoss
Pneumatic Quick Disconnect Coupling | 400 Series

Quick Disconnect for Pneumatic Applications.

Danfoss Hansen 1000/400/500 Series is an Industrial Interchange pneumatic coupling that is rugged and reliable designed for use with compressed air, gases, and liquids.

400 series accepts Tru-Flate Interchange.
Specifications for Variant SKU: 4PD9 Danfoss
Brand: Hansen
Series: 400 Series / 4000 Series
Shape (Orientation): Straight
Material(s): Zink-Plated Carbon Steel
Seal Material(s): Buna-N/Nitrile Rubber
Features:
  • Ball latching mechanism.
  • All sizes accept US Industrial Interchange.
Applications & Markets:
  • General Pneumatics
  • Construction
  • Industrial Plants
Materials:
  • Standard body material: Brass, Steel, Stainless Steel, Nickel Plated Steel Sleeve
  • Standard seal material: Nitrile (NBR)
Specifications:
  • 1/4" & 1/2" accept ISO 6150 B and A-A-59439 plugs/males.
Series Body Size Max. Operating Pressure Min. Burst Pressure Rated Flow
400 3/8" 69 bar 1,000 psi 276 bar 4,000 psi 1,274 lpm 336 gpm
Interchangeability
All Sizes 1/4" & 1/2" 400 Series
US Industrial Interchange ISO 6150 Series B
A-A-59439
(former MIL-C-4109)		 Tru-Flate
Socket/Female
(Figure 1)
Plug/Male
(Figure 2)
400 Series | Sockets
Part Number Coupling Type Body Size Hose ID Hose OD End Type Material Figure Dimensions
A B Hex
40SD7 Socket/Female 3/8" 3/8" 5/8" Hose Crimp End Brass 1 3.04"
(77.22mm)		 1.13"
(28.70mm)		 0.75"
(19.05mm)
40SD9 Socket/Female 3/8" 3/8" 11/16" Hose Crimp End Brass 1 3.04"
(77.22mm)		 1.13"
(28.70mm)		 0.81"
(20.57mm)
40SD11 Socket/Female 3/8" 3/8" 3/4" Hose Crimp End Brass 1 3.04"
(77.22mm)		 1.13"
(28.70mm)		 0.88"
(22.35mm)
40SP13 Socket/Female 3/8" 1/2" 13/16" Hose Crimp End Brass 1 3.67"
(93.22mm)		 1.13"
(28.70mm)		 0.94"
(23.88mm)
40SP15 Socket/Female 3/8" 1/2" 7/8" Hose Crimp End Brass 1 3.67"
(93.22mm)		 1.13"
(28.70mm)		 1.00"
(25.40mm)
400 Series | Plugs
Part Number Coupling Type Body Size Hose ID Hose OD End Type Material Figure Dimensions
C D Hex
4PB3 Plug/Male 3/8" 1/4" 1/2" Hose Crimp End Steel 2 2.44"
(61.98mm)		 0.70"
(17.78mm)		 0.63"
(16.00mm)
4PB7 Plug/Male 3/8" 1/4" 5/8" Hose Crimp End Steel 2 2.44"
(61.98mm)		 0.84"
(21.34mm)		 0.75"
(19.05mm)
4PD7 Plug/Male 3/8 " 3/8" 5/8" Hose Crimp End Steel 2 2.56"
(65.02mm)		 0.84"
(21.34mm)		 0.75"
(19.05mm)
4PD9 Plug/Male 3/8 " 3/8" 11/16" Hose Crimp End Steel 2 2.56"
(65.02mm)		 0.91"
(23.11mm)		 0.81"
(20.57mm)
4PD11 Plug/Male 3/8" 3/8" 3/4" Hose Crimp End Steel 2 2.56"
(65.02mm)		 0.98"
(24.89mm)		 0.88"
(22.35mm)
4PP13 Plug/Male 3/8" 1/2" 13/16" Hose Crimp End Steel 2 3.25"
(82.55mm)		 1.05"
(26.67mm)		 0.94"
(23.88mm)
4PP15 Plug/Male 3/8" 1/2" 7/8" Hose Crimp End Steel 2 3.25"
(82.55mm)		 1.12"
(28.45mm)		 1.00"
(25.40mm)
