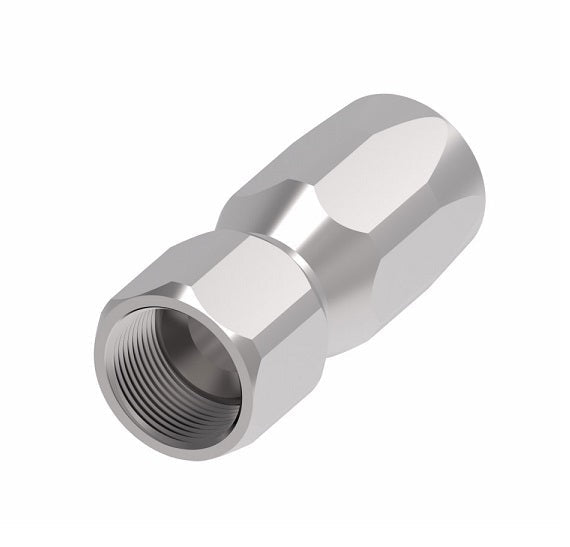

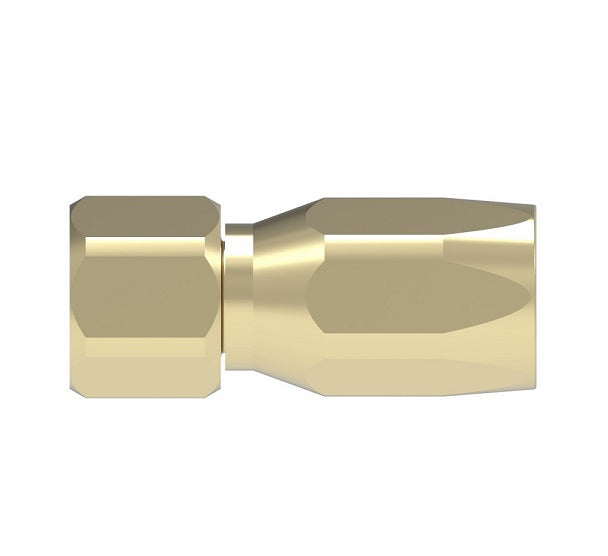

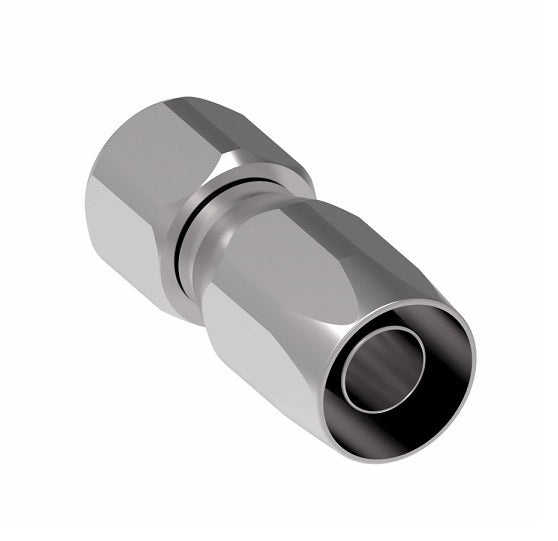

411-10S Aeroquip by Danfoss | Female 37° JIC Swivel 100R5 Reusable Hose Fitting (3 Piece) | -10 Female 37° JIC Swivel x -10 Reusable Hose End | Steel

411-10S Aeroquip by Danfoss | Female 37° JIC Swivel 100R5 Reusable Hose Fitting (3 Piece) | -10 Female 37° JIC Swivel x -10 Reusable Hose End | Steel

Name: 411-10S Aeroquip by Danfoss | Female 37° JIC Swivel 100R5 Reusable Hose Fitting (3 Piece) | -10 Female 37° JIC Swivel x -10 Reusable Hose End | Steel
Brand: Danfoss/Eaton
SKU: 411-10S Danfoss
Price: 22.65 USD
Availability: InStock

$22.65 - $22.65

$22.65

$22.65 - $22.65

$22.65

Aeroquip® by Danfoss
SAE 100R5 Style Reusable Hose Fitting - Female 37° JIC Swivel - Straight

Three Piece Fitting.

(Formerly Eaton Aeroquip)

Quantity

Specifications for Variant SKU: 411-10S Danfoss
Shape (Orientation):	Straight
Ends Configuration:	5/8in Female JIC, 5/8in Reusable Hose End
Material(s):	Steel
Special Properties:	Swivel
Compatible with the following Series:	1503 Series \| 2580 Series \| 2651 \| FC234 Series \| FC300 Series \| FC321 Series \| FC350 Series \| FC355 Series \| FC802 Series

Technical Info:
Reusable Fitting Socket Data.PDF
Note:
Requires tools for assembly.


Steel Part Number	Brass Part Number	Stainless Steel Part Number	Brass & Bronze Part Number	Hose Size	Thread	A	D	EØ
411-4S	411-4B	-	-	-04	7/16-20	1.75"	1.00"	0.17"
411-5S	411-5B	-	-	-05	1/2-20	1.90"	1.12"	0.23"
411-6S	411-6B	-	-	-06	9/16-18	2.05"	1.15"	0.30"
411-6-4S	-	-	-	-04	9/16-18	1.85"	1.10"	0.17"
411-8S	411-8B	-	-	-08	3/4-16	2.52"	1.38"	0.39"
411-10S	411-10B	-	-	-10	7/8-14	2.80"	1.51"	0.48"
411-12S	411-12B	-	-	-12	1-1/16-12	3.15"	1.58"	0.61"
411-16S	411-16B	259-411-16	-	-16	1-5/16-12	2.82"	1.55"	0.82"
411-16-12S	-	-	-	-12	1-5/16-12	3.25"	1.61"	0.61"
411-20S	411-20B	259-411-20	-	-20	1-5/8-12	3.00"	1.64"	1.05"
411-24S	411-24B	259-411-24	-	-24	1-7/8-12	3.28"	1.83"	1.28"
411-32S	411-32B	259-411-32	-	-32	2-1/2-12	3.88"	2.03"	1.75"

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
