Aeroquip® by Danfoss

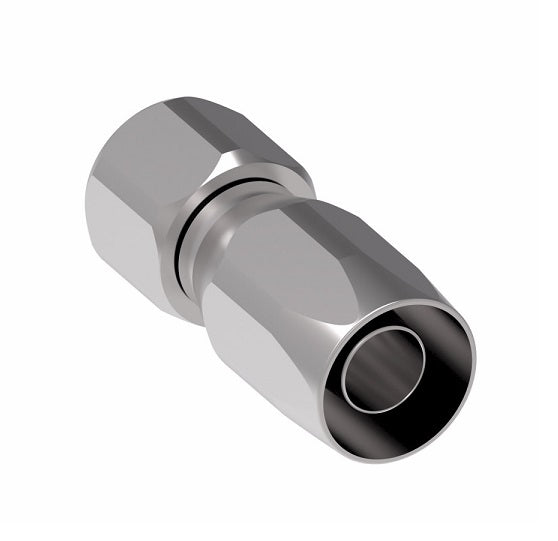

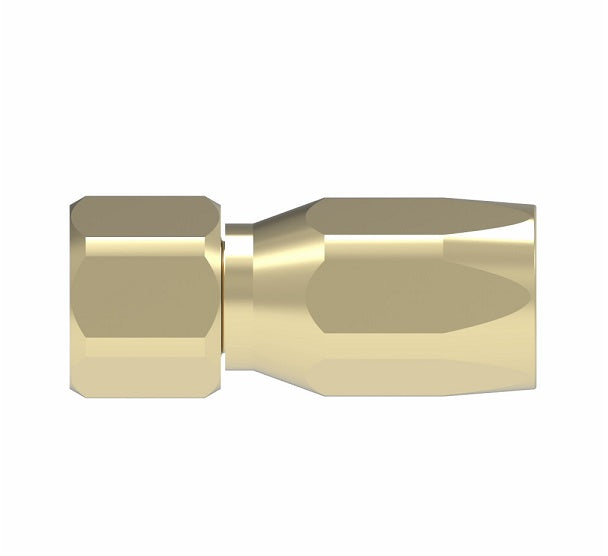

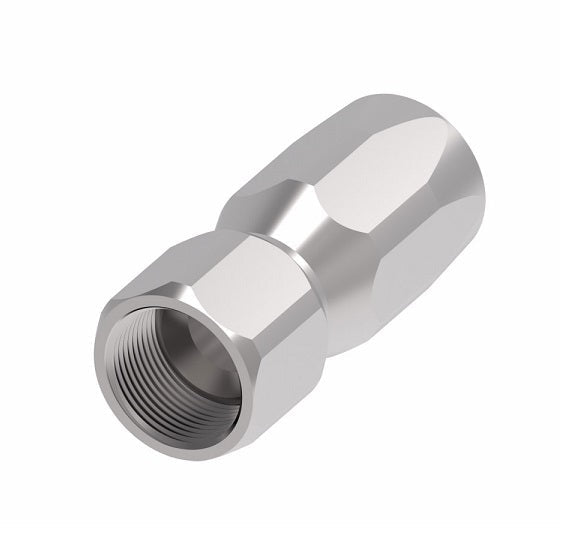

SAE 100R5 Style Reusable Hose Fitting - Female 37° JIC Swivel - Straight

Three Piece Fitting.

(Formerly Eaton Aeroquip)

Specifications for Variant SKU: 411-16S Danfoss
Shape (Orientation):	Straight
Ends Configuration:	1in Female JIC, 1in Reusable Hose End
Material(s):	Steel
Special Properties:	Swivel
Compatible with the following Series:	1503 Series \| 2580 Series \| 2651 \| FC234 Series \| FC300 Series \| FC321 Series \| FC350 Series \| FC355 Series \| FC802 Series

Technical Info:
Reusable Fitting Socket Data.PDF
Note:
Requires tools for assembly.


Steel Part Number	Brass Part Number	Stainless Steel Part Number	Brass & Bronze Part Number	Hose Size	Thread	A	D	EØ
411-4S	411-4B	-	-	-04	7/16-20	1.75"	1.00"	0.17"
411-5S	411-5B	-	-	-05	1/2-20	1.90"	1.12"	0.23"
411-6S	411-6B	-	-	-06	9/16-18	2.05"	1.15"	0.30"
411-6-4S	-	-	-	-04	9/16-18	1.85"	1.10"	0.17"
411-8S	411-8B	-	-	-08	3/4-16	2.52"	1.38"	0.39"
411-10S	411-10B	-	-	-10	7/8-14	2.80"	1.51"	0.48"
411-12S	411-12B	-	-	-12	1-1/16-12	3.15"	1.58"	0.61"
411-16S	411-16B	259-411-16	-	-16	1-5/16-12	2.82"	1.55"	0.82"
411-16-12S	-	-	-	-12	1-5/16-12	3.25"	1.61"	0.61"
411-20S	411-20B	259-411-20	-	-20	1-5/8-12	3.00"	1.64"	1.05"
411-24S	411-24B	259-411-24	-	-24	1-7/8-12	3.28"	1.83"	1.28"
411-32S	411-32B	259-411-32	-	-32	2-1/2-12	3.88"	2.03"	1.75"
