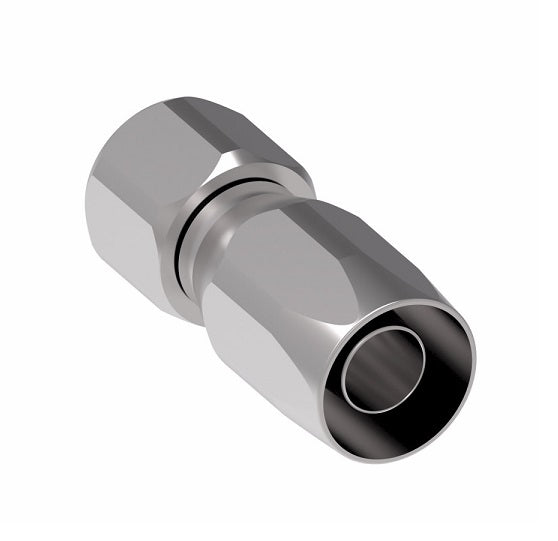

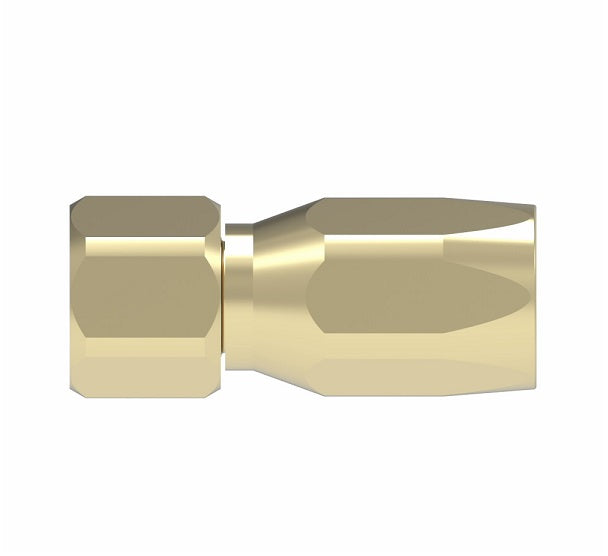

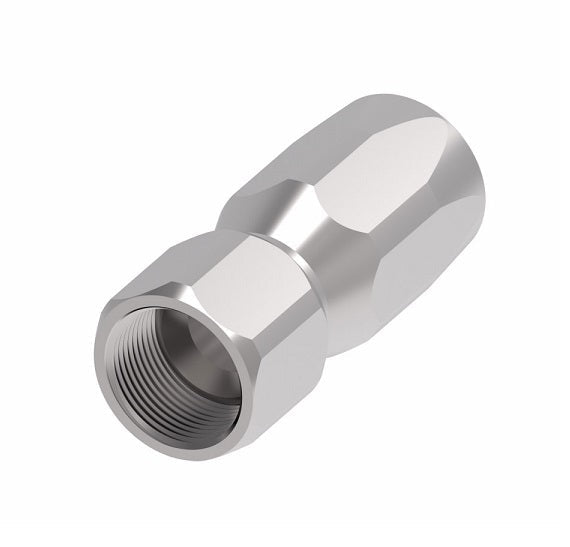

411-16-12S Aeroquip by Danfoss | Female 37° JIC Swivel 100R5 Reusable Hose Fitting (3 Piece) | -16 Female 37° JIC Swivel x -12 Reusable Hose End | Steel
411-16-12S Aeroquip by Danfoss | Female 37° JIC Swivel 100R5 Reusable Hose Fitting (3 Piece) | -16 Female 37° JIC Swivel x -12 Reusable Hose End | Steel
411-16-12S Aeroquip by Danfoss | Female 37° JIC Swivel 100R5 Reusable Hose Fitting (3 Piece) | -16 Female 37° JIC Swivel x -12 Reusable Hose End | Steel
411-16-12S Aeroquip by Danfoss | Female 37° JIC Swivel 100R5 Reusable Hose Fitting (3 Piece) | -16 Female 37° JIC Swivel x -12 Reusable Hose End | Steel

411-16-12S Aeroquip by Danfoss | Female 37° JIC Swivel 100R5 Reusable Hose Fitting (3 Piece) | -16 Female 37° JIC Swivel x -12 Reusable Hose End | Steel

$211.45 - $211.45
$211.45
$211.45 - $211.45
$211.45

Aeroquip® by Danfoss
SAE 100R5 Style Reusable Hose Fitting - Female 37° JIC Swivel - Straight

Three Piece Fitting.

(Formerly Eaton Aeroquip)
Specifications for Variant SKU: 411-16-12S Danfoss
Shape (Orientation): Straight
Ends Configuration: 1in Female JIC, 3/4in Reusable Hose End
Material(s): Steel
Special Properties: Swivel
Compatible with the following Series: 1503 Series  |   2580 Series  |   2651  |   FC234 Series  |   FC300 Series  |   FC321 Series  |   FC350 Series  |   FC355 Series  |   FC802 Series
Technical Info:
Note:
  • Requires tools for assembly.
Steel
Part Number 		Brass
Part Number 		Stainless Steel
Part Number 		Brass & Bronze
Part Number 		Hose Size Thread A D EØ
411-4S 411-4B - - -04 7/16-20 1.75" 1.00" 0.17"
411-5S 411-5B - - -05 1/2-20 1.90" 1.12" 0.23"
411-6S 411-6B - - -06 9/16-18 2.05" 1.15" 0.30"
411-6-4S - - - -04 9/16-18 1.85" 1.10" 0.17"
411-8S 411-8B - - -08 3/4-16 2.52" 1.38" 0.39"
411-10S 411-10B - - -10 7/8-14 2.80" 1.51" 0.48"
411-12S 411-12B - - -12 1-1/16-12 3.15" 1.58" 0.61"
411-16S 411-16B 259-411-16 - -16 1-5/16-12 2.82" 1.55" 0.82"
411-16-12S - - - -12 1-5/16-12 3.25" 1.61" 0.61"
411-20S 411-20B 259-411-20 - -20 1-5/8-12 3.00" 1.64" 1.05"
411-24S 411-24B 259-411-24 - -24 1-7/8-12 3.28" 1.83" 1.28"
411-32S 411-32B 259-411-32 - -32 2-1/2-12 3.88" 2.03" 1.75"
Danfoss (Eaton - Aeroquip)

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.

Shop Parts by Danfoss (Eaton - Aeroquip)
