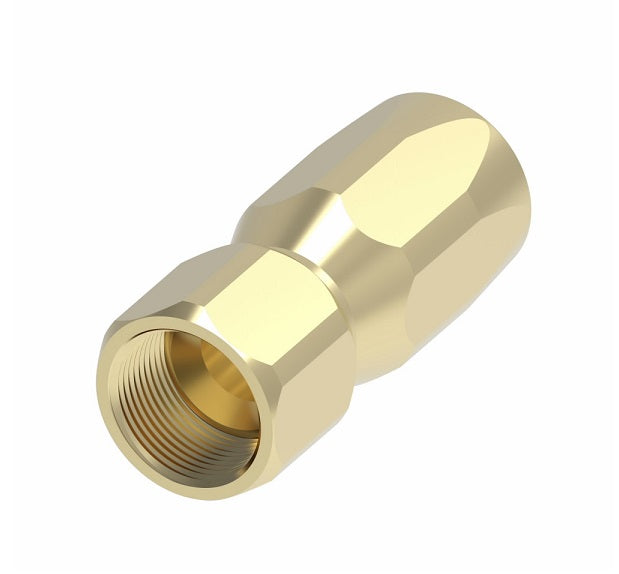

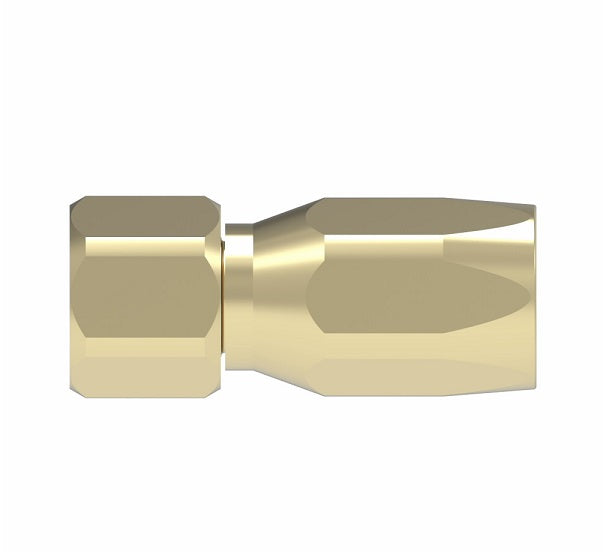

411-4B Aeroquip by Danfoss | Female 37° JIC Swivel 100R5 Reusable Hose Fitting (3 Piece) | -04 Female 37° JIC Swivel x -04 Reusable Hose End | Brass

Original price $18.80 - Original price $18.80
Original price
$18.80
$18.80 - $18.80
Current price $18.80

Aeroquip® by Danfoss
SAE 100R5 Style Reusable Hose Fitting - Female 37° JIC Swivel - Straight

Three Piece Fitting.

(Formerly Eaton Aeroquip)

Specifications for Variant SKU: 411-4B Danfoss
Shape (Orientation): Straight
Ends Configuration: 1/4in Female JIC, 1/4in Reusable Hose End
Material(s): Brass
Special Properties: Swivel
Compatible with the following Series: 1503 Series  |   2580 Series  |   2651  |   FC234 Series  |   FC300 Series  |   FC321 Series  |   FC350 Series  |   FC355 Series  |   FC802 Series
Technical Info:
Note:
  • Requires tools for assembly.
Steel
Part Number
Brass
Part Number
Stainless Steel
Part Number
Brass & Bronze
Part Number
Hose Size Thread A D
411-4S 411-4B - - -04 7/16-20 1.75" 1.00" 0.17"
411-5S 411-5B - - -05 1/2-20 1.90" 1.12" 0.23"
411-6S 411-6B - - -06 9/16-18 2.05" 1.15" 0.30"
411-6-4S - - - -04 9/16-18 1.85" 1.10" 0.17"
411-8S 411-8B - - -08 3/4-16 2.52" 1.38" 0.39"
411-10S 411-10B - - -10 7/8-14 2.80" 1.51" 0.48"
411-12S 411-12B - - -12 1-1/16-12 3.15" 1.58" 0.61"
411-16S 411-16B 259-411-16 - -16 1-5/16-12 2.82" 1.55" 0.82"
411-16-12S - - - -12 1-5/16-12 3.25" 1.61" 0.61"
411-20S 411-20B 259-411-20 - -20 1-5/8-12 3.00" 1.64" 1.05"
411-24S 411-24B 259-411-24 - -24 1-7/8-12 3.28" 1.83" 1.28"
411-32S 411-32B 259-411-32 - -32 2-1/2-12 3.88" 2.03" 1.75"
