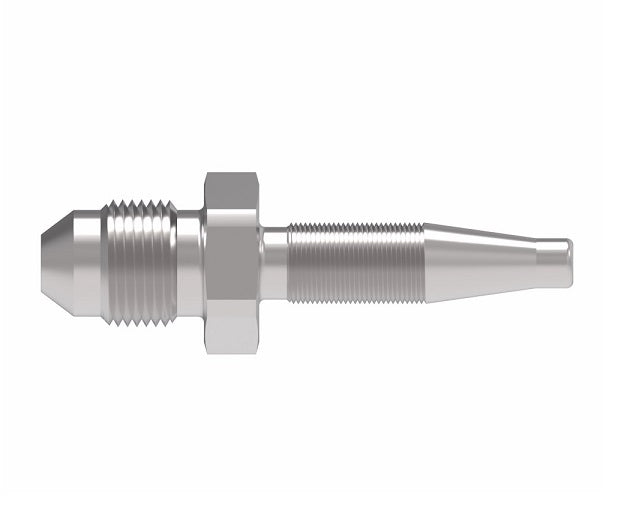

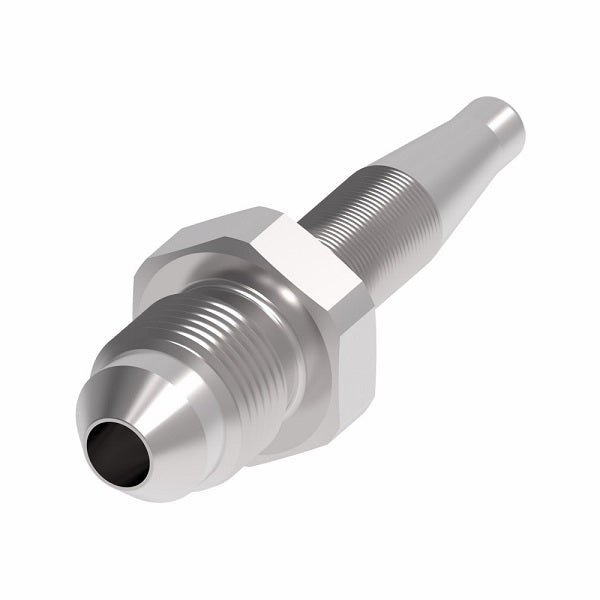

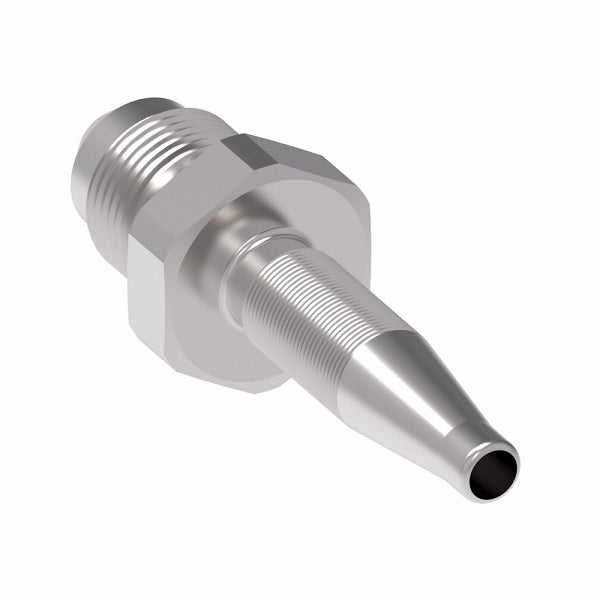

4203-12S Weatherhead by Danfoss | Male 37° JIC Flare Field Attachable Fitting for 1 & 2 Wire Braided Hose | Nipple Assembly | -12 Male 37° JIC Flare x -12 Reusable Hose End | Steel
4203-12S Weatherhead by Danfoss | Male 37° JIC Flare Field Attachable Fitting for 1 & 2 Wire Braided Hose | Nipple Assembly | -12 Male 37° JIC Flare x -12 Reusable Hose End | Steel
4203-12S Weatherhead by Danfoss | Male 37° JIC Flare Field Attachable Fitting for 1 & 2 Wire Braided Hose | Nipple Assembly | -12 Male 37° JIC Flare x -12 Reusable Hose End | Steel
4203-12S Weatherhead by Danfoss | Male 37° JIC Flare Field Attachable Fitting for 1 & 2 Wire Braided Hose | Nipple Assembly | -12 Male 37° JIC Flare x -12 Reusable Hose End | Steel

4203-12S Weatherhead by Danfoss | Male 37° JIC Flare Field Attachable Fitting for 1 & 2 Wire Braided Hose | Nipple Assembly | -12 Male 37° JIC Flare x -12 Reusable Hose End | Steel

$46.72 - $46.72
$46.72
$46.72 - $46.72
$46.72

Weatherhead by Danfoss
Field Attachable Fitting for 1 Wire Braided Hose - 1R series - Male 37° JIC Flare - Straight
Specifications for Variant SKU: 4203-12S Danfoss
Shape (Orientation): Straight
Ends Configuration: 3/4in Male JIC, 3/4in Reusable Hose End
Material(s): Steel
Compatible with the following Series: H180 Series  |   H280 Series
Features:
  • Non-skive, two-piece crimp Fitting.
  • Clear silver hexavalent chromium-free plating.
  • Carbon steel material.
Component Part Numbers
Complete Fitting
Part Number 		Nipple Assembly
Part Number
Steel 		Reusable Socket
Part Number 		Thread Size Hose Size A D E&Oslash
1RA4MJ4 4203-4-4S 1RA4 7/16-20 -04 2.34" 1.30" 0.17"
- 4203-6-4S - - -04 - - -
1RA6MJ6 4203-6-6S 1RA6 9/16-18 -06 2.67" 1.54" 0.31"
- 4203-8-6S - - -06 - - -
1RA8MJ8 4203-8-8S 1RA8 3/4-16 -08 2.97" 1.50" 0.39"
- 4203-10-8S - - -08 - - -
- 4203-10S - 7/8-14 -10 - - -
1RA12MJ12 4203-12S 1RA12 1-1/16-12 -12 3.66" 2.06" 0.61"
1RA16MJ16 4203-16S 1RA16 1-5/16-12 -16 4.23" 2.10" 0.82"
Danfoss (Eaton - Aeroquip)

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
