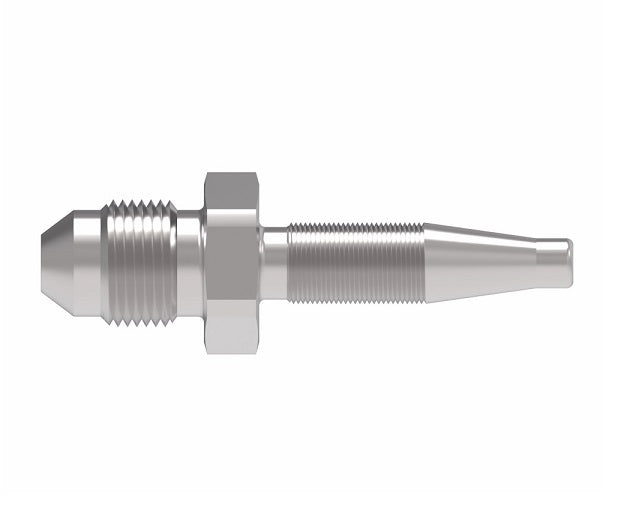

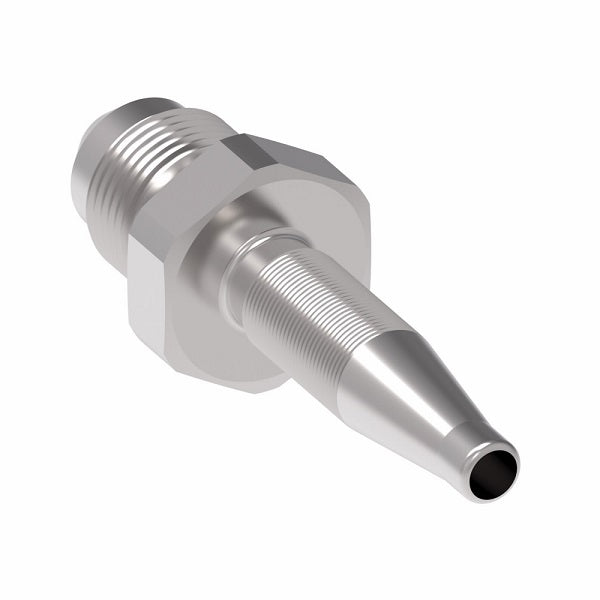

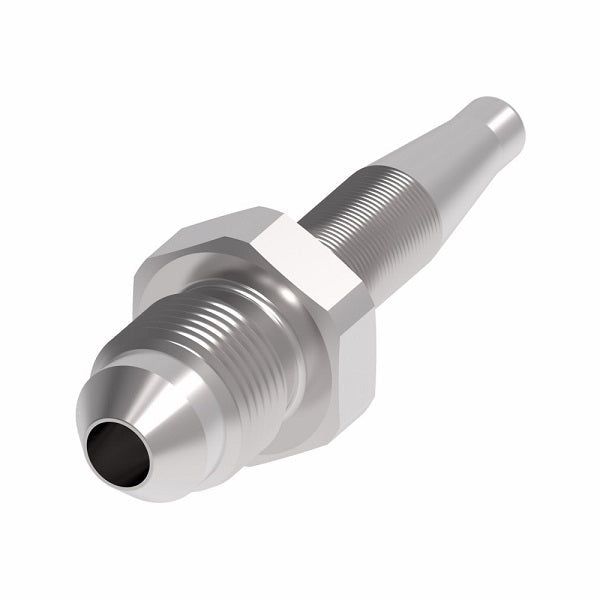

4203-8-8S Weatherhead by Danfoss | Male 37° JIC Flare Field Attachable Fitting for 1 & 2 Wire Braided Hose | Nipple Assembly | -08 Male 37° JIC Flare x -08 Reusable Hose End | Steel
4203-8-8S Weatherhead by Danfoss | Male 37° JIC Flare Field Attachable Fitting for 1 & 2 Wire Braided Hose | Nipple Assembly | -08 Male 37° JIC Flare x -08 Reusable Hose End | Steel
4203-8-8S Weatherhead by Danfoss | Male 37° JIC Flare Field Attachable Fitting for 1 & 2 Wire Braided Hose | Nipple Assembly | -08 Male 37° JIC Flare x -08 Reusable Hose End | Steel
4203-8-8S Weatherhead by Danfoss | Male 37° JIC Flare Field Attachable Fitting for 1 & 2 Wire Braided Hose | Nipple Assembly | -08 Male 37° JIC Flare x -08 Reusable Hose End | Steel

4203-8-8S Weatherhead by Danfoss | Male 37° JIC Flare Field Attachable Fitting for 1 & 2 Wire Braided Hose | Nipple Assembly | -08 Male 37° JIC Flare x -08 Reusable Hose End | Steel

$22.18 - $22.18
$22.18
$22.18 - $22.18
$22.18

Weatherhead by Danfoss
Field Attachable Fitting for 1 Wire Braided Hose - 1R series - Male 37° JIC Flare - Straight
Specifications for Variant SKU: 4203-8-8S Danfoss
Shape (Orientation): Straight
Ends Configuration: 1/2in Male JIC, 1/2in Reusable Hose End
Material(s): Steel
Compatible with the following Series: H180 Series  |   H280 Series
Features:
  • Non-skive, two-piece crimp Fitting.
  • Clear silver hexavalent chromium-free plating.
  • Carbon steel material.
Component Part Numbers
Complete Fitting
Part Number 		Nipple Assembly
Part Number
Steel 		Reusable Socket
Part Number 		Thread Size Hose Size A D E&Oslash
1RA4MJ4 4203-4-4S 1RA4 7/16-20 -04 2.34" 1.30" 0.17"
- 4203-6-4S - - -04 - - -
1RA6MJ6 4203-6-6S 1RA6 9/16-18 -06 2.67" 1.54" 0.31"
- 4203-8-6S - - -06 - - -
1RA8MJ8 4203-8-8S 1RA8 3/4-16 -08 2.97" 1.50" 0.39"
- 4203-10-8S - - -08 - - -
- 4203-10S - 7/8-14 -10 - - -
1RA12MJ12 4203-12S 1RA12 1-1/16-12 -12 3.66" 2.06" 0.61"
1RA16MJ16 4203-16S 1RA16 1-5/16-12 -16 4.23" 2.10" 0.82"
