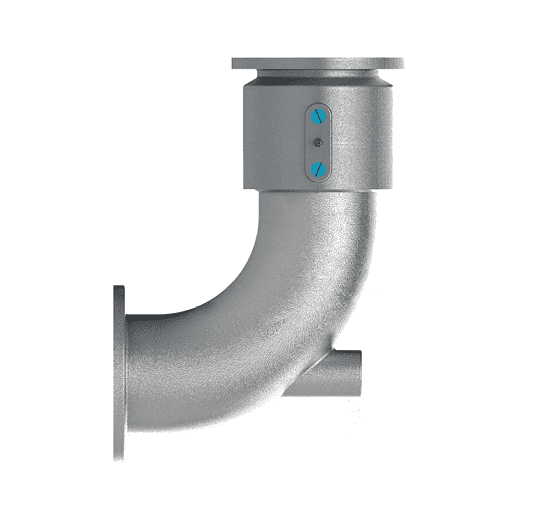

430TFTFLAL00000 Dixon Aluminum Loading Arm Swivel - Style 30 Long Radius, without Handle - 4" TTMA x 4" TTMA Flanges (Buna Seals)

430TFTFLAL00000 Dixon Valve Aluminum Loading Arm Swivel - Style 30 Long Radius, without Handle - 4" TTMA x 4" TTMA Flanges (Buna Seals)

Save $82.28 Save $82.28
$740.49
$740.49 - $740.49
$740.49
$658.21
$658.21 - $658.21
$658.21

Swivels & Rack Equipment - Loading Arm Swivels - Aluminum

Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: 430TFTFLAL00000 Dixon
Shape (Orientation): 90 Degree
Material(s): Aluminum
Seal Material(s): Buna-N/Nitrile Rubber
Applications:
Features:
  • TTMA loading arm swivel with D style shovel handle.
  • TTMA flanges on both ends.
  • Shovel handle is used to guide the API load coupler onto the adapter on the tank truck.
  • Long radius elbow improves the flow into the API load coupler and provides spacing between the load arm and the tank truck.
Replacement Parts:
Part Number Description Size Weight (Lbs.)
43HTFXTFAL00000 Style 30 short radius, with handle, TTMA x TTMA flanges w/ Buna seals 4" TTMA x 4" TTMA 12.0000
43HTFXTFAL11000 Style 30 short radius, with handle, TTMA x TTMA flanges w/ FKM seals 4" TTMA x 4" TTMA 12.0000
430TFXTFAL00000 Style 30 short radius, without handle, TTMA x TTMA flanges w/ Buna seals 4" TTMA x 4" TTMA 10.2500
430TFXTFAL11000 Style 30 short radius, without handle, TTMA x TTMA flanges w/ FKM seals 4" TTMA x 4" TTMA 12.0500
43HTFTFLAL00000 Style 30 long radius, with handle, TTMA x TTMA flanges w/ Buna seals 4" TTMA x 4" TTMA 13.0000
43HTFTFLAL11000 Style 30 long radius, with handle, TTMA x TTMA flanges w/ FKM seals 4" TTMA x 4" TTMA N/A
430TFTFLAL00000 Style 30 long radius, without handle, TTMA x TTMA flanges w/ Buna seals 4" TTMA x 4" TTMA N/A
430TFTFLAL11000 Style 30 long radius, without handle, TTMA x TTMA flanges w/ FKM seals 4" TTMA x 4" TTMA N/A
44HTFXTFAL00000 Style 40 with handle, TTMA x TTMA flanges w/ Buna seals 4" TTMA x 4" TTMA N/A
44HTFXTFAL11000 Style 40 with handle, TTMA x TTMA flanges w/ FKM seals 4" TTMA x 4" TTMA N/A
440TFXTFAL00000 Style 40 without handle, TTMA x TTMA flanges w/ Buna seals 4" TTMA x 4" TTMA 17.0000
440TFXTFAL11000 Style 40 without handle, TTMA x TTMA flanges w/ FKM seals 4" TTMA x 4" TTMA 11.8500
45HTFXTFAL00000 Style 50 with handle, TTMA x TTMA flanges w/ Buna seals 4" TTMA x 4" TTMA N/A
45HTFXTFAL11000 Style 50 with handle, TTMA x TTMA flanges w/ FKM seals 4" TTMA x 4" TTMA 19.1000
450TFXTFAL00000 Style 50 without handle, TTMA x TTMA flanges w/ Buna seals 4" TTMA x 4" TTMA N/A
450TFXTFAL11000 Style 50 without handle, TTMA x TTMA flanges w/ FKM seals 4" TTMA x 4" TTMA 18.0000
