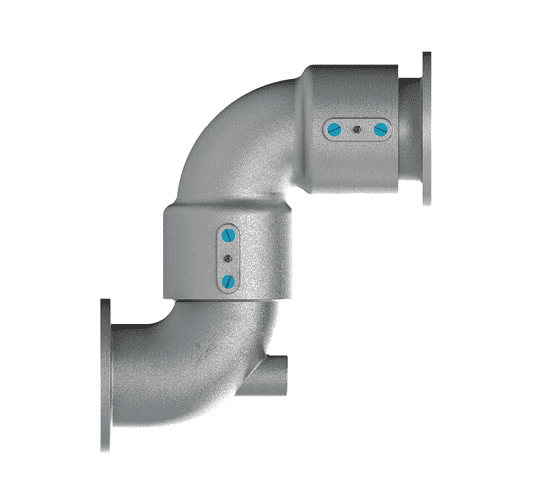

450TFXTFAL00000 Dixon Aluminum Loading Arm Swivel - Style 50 Long Radius, without Handle - 4" TTMA x 4" TTMA Flanges (Buna Seals)

450TFXTFAL00000 Dixon Valve Aluminum Loading Arm Swivel - Style 50 Long Radius, without Handle - 4" TTMA x 4" TTMA Flanges (Buna Seals)

Save $81.37 Save $81.37
$1,077.12
$1,077.12 - $1,077.12
$1,077.12
$995.75
$995.75 - $995.75
$995.75

Swivels & Rack Equipment - Loading Arm Swivels - Aluminum

Specifications for Variant SKU: 450TFXTFAL00000 Dixon
Shape (Orientation): Multi-Directional
Material(s): Aluminum
Seal Material(s): Buna-N/Nitrile Rubber
Applications:
Features:
  • TTMA loading arm swivel with D style shovel handle.
  • TTMA flanges on both ends.
  • Shovel handle is used to guide the API load coupler onto the adapter on the tank truck.
  • Long radius elbow improves the flow into the API load coupler and provides spacing between the load arm and the tank truck.
Replacement Parts:
Part Number Description Size Weight (Lbs.)
43HTFXTFAL00000 Style 30 short radius, with handle, TTMA x TTMA flanges w/ Buna seals 4" TTMA x 4" TTMA 12.0000
43HTFXTFAL11000 Style 30 short radius, with handle, TTMA x TTMA flanges w/ FKM seals 4" TTMA x 4" TTMA 12.0000
430TFXTFAL00000 Style 30 short radius, without handle, TTMA x TTMA flanges w/ Buna seals 4" TTMA x 4" TTMA 10.2500
430TFXTFAL11000 Style 30 short radius, without handle, TTMA x TTMA flanges w/ FKM seals 4" TTMA x 4" TTMA 12.0500
43HTFTFLAL00000 Style 30 long radius, with handle, TTMA x TTMA flanges w/ Buna seals 4" TTMA x 4" TTMA 13.0000
43HTFTFLAL11000 Style 30 long radius, with handle, TTMA x TTMA flanges w/ FKM seals 4" TTMA x 4" TTMA N/A
430TFTFLAL00000 Style 30 long radius, without handle, TTMA x TTMA flanges w/ Buna seals 4" TTMA x 4" TTMA N/A
430TFTFLAL11000 Style 30 long radius, without handle, TTMA x TTMA flanges w/ FKM seals 4" TTMA x 4" TTMA N/A
44HTFXTFAL00000 Style 40 with handle, TTMA x TTMA flanges w/ Buna seals 4" TTMA x 4" TTMA N/A
44HTFXTFAL11000 Style 40 with handle, TTMA x TTMA flanges w/ FKM seals 4" TTMA x 4" TTMA N/A
440TFXTFAL00000 Style 40 without handle, TTMA x TTMA flanges w/ Buna seals 4" TTMA x 4" TTMA 17.0000
440TFXTFAL11000 Style 40 without handle, TTMA x TTMA flanges w/ FKM seals 4" TTMA x 4" TTMA 11.8500
45HTFXTFAL00000 Style 50 with handle, TTMA x TTMA flanges w/ Buna seals 4" TTMA x 4" TTMA N/A
45HTFXTFAL11000 Style 50 with handle, TTMA x TTMA flanges w/ FKM seals 4" TTMA x 4" TTMA 19.1000
450TFXTFAL00000 Style 50 without handle, TTMA x TTMA flanges w/ Buna seals 4" TTMA x 4" TTMA N/A
450TFXTFAL11000 Style 50 without handle, TTMA x TTMA flanges w/ FKM seals 4" TTMA x 4" TTMA 18.0000
Dixon Valve & Coupling

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
