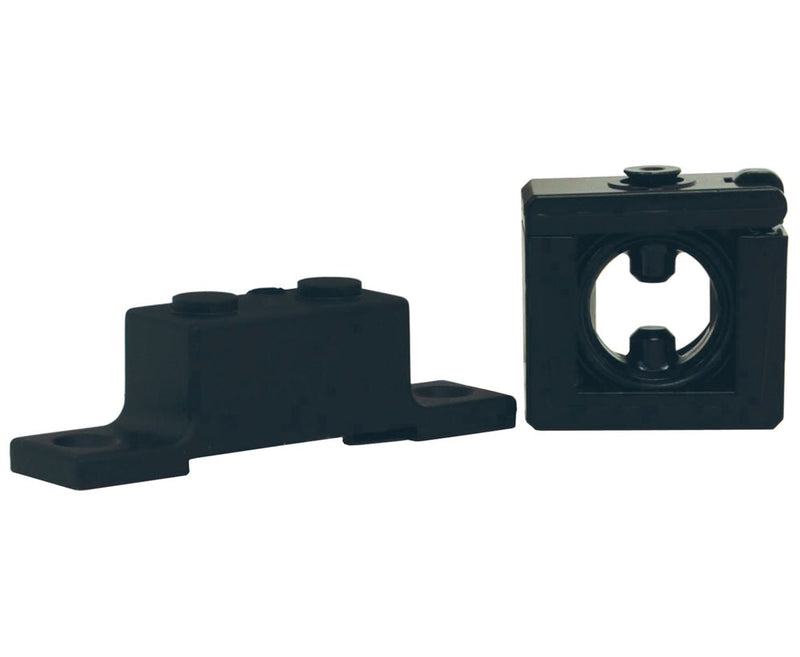

4314-52 by Dixon Valve | Series 1 | Quick Clamp and Bracket Assembly | Used On Series 1 Filter/Regulator/Lubricators F73, F74, R73, R74, L72, L73

4314-52 by Dixon Valve | Series 1 | Quick Clamp and Bracket Assembly | Used On Series 1 Filter/Regulator/Lubricators F73, F74, R73, R74, L72, L73

Save $20.87 Save $20.87
$52.18
$52.18 - $52.18
$52.18
$31.31
$31.31 - $31.31
$31.31

Dixon Valve
Series 1 | FRL FRL Accessory | Quick Clamp and Bracket Assembly

Provides modular installation capability.
Specifications for Variant SKU: 4314-52 Dixon
Series: F73 Series 1, F74 Series 1, R73 Series 1, R74 Series 1, L72 Series 1, L73 Series 1
Features:
  • Quick-Clamp:
    • Provides modular installation capability.
    • Flanges designated to slide into V grooves in clamp.
    • Face-sealing O-rings provide a positive seal when clamp is closed and screw tightened.
  • Bracket for Quick-Clamp:
    • Provides secure mounting to a wall, machine panel or other flat surface.
Part Number Used On Filter/Regulator/Lubricator Series Description
4214-51 L72 Quick Clamp
4384-570 F72 Quick Clamp Service Kit (2 O-Rings)
4214-52 R72 Quick Clamp and Bracket Assembly
4314-51 F73, F74, R73, R74, L72, L73 Quick Clamp
4384-770 F73, F74, R73, R74, L72, L73 Quick Clamp Service Kit (2 O-Rings)
4313-50 F73, F74, R73, R74, L72, L73 Wall Bracket for Quick-Clamp (uses 7/32" Screws)
4314-52 F73, F74, R73, R74, L72, L73 Quick Clamp and Bracket Assembly
