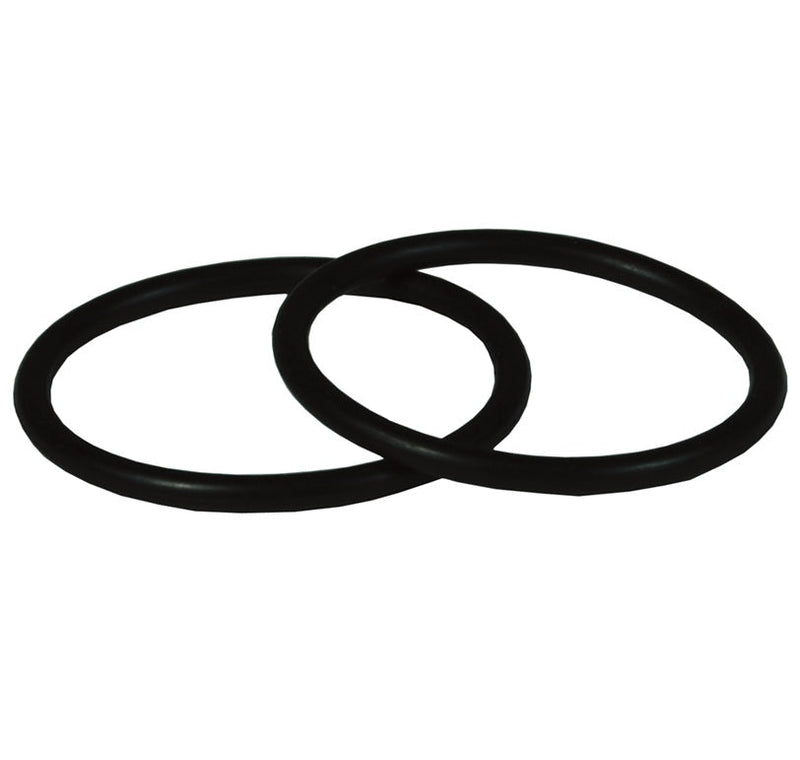

4384-570 by Dixon Valve | Series 1 | Quick Clamp Service Kit (2 O-Rings) | Used On F72 Series 1 Filters

4384-570 by Dixon Valve | Series 1 | Quick Clamp Service Kit (2 O-Rings) | Used On F72 Series 1 Filters

Save $7.62 Save $7.62
$19.05
$19.05 - $19.05
$19.05
$11.43
$11.43 - $11.43
$11.43

Dixon Valve
Series 1 | FRL FRL Accessory | Quick Clamp Service Kit

Includes: 2 O-Rings

Provides modular installation capability.
Specifications for Variant SKU: 4384-570 Dixon
Series: F72 Series 1
Features:
  • Quick-Clamp:
    • Provides modular installation capability.
    • Flanges designated to slide into V grooves in clamp.
    • Face-sealing O-rings provide a positive seal when clamp is closed and screw tightened.
  • Bracket for Quick-Clamp:
    • Provides secure mounting to a wall, machine panel or other flat surface.
Part Number Used On Filter/Regulator/Lubricator Series Description
4214-51 L72 Quick Clamp
4384-570 F72 Quick Clamp Service Kit (2 O-Rings)
4214-52 R72 Quick Clamp and Bracket Assembly
4314-51 F73, F74, R73, R74, L72, L73 Quick Clamp
4384-770 F73, F74, R73, R74, L72, L73 Quick Clamp Service Kit (2 O-Rings)
4313-50 F73, F74, R73, R74, L72, L73 Wall Bracket for Quick-Clamp (uses 7/32" Screws)
4314-52 F73, F74, R73, R74, L72, L73 Quick Clamp and Bracket Assembly
Dixon Valve & Coupling

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
