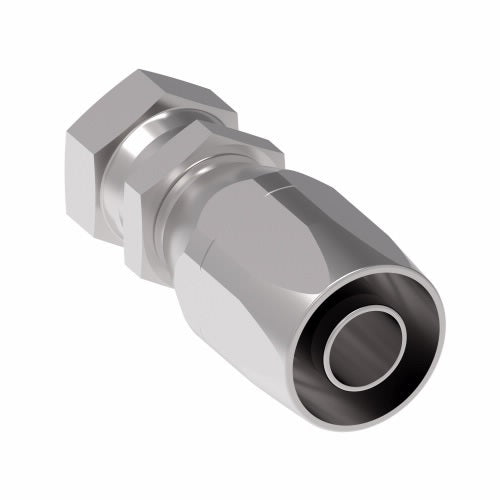

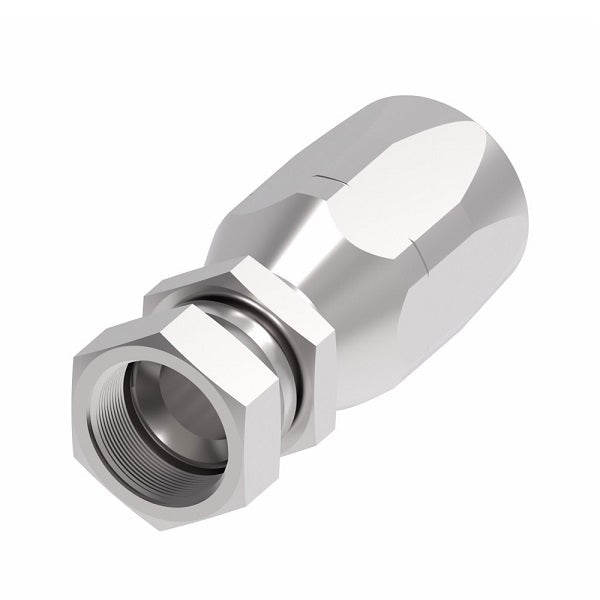

4721-10S Aeroquip by Danfoss | Female 37° JIC Swivel 100R2 Skive Style Reusable Hose Fitting | -10 Female 37° JIC Swivel x -10 Reusable Hose End | Steel
4721-10S Aeroquip by Danfoss | Female 37° JIC Swivel 100R2 Skive Style Reusable Hose Fitting | -10 Female 37° JIC Swivel x -10 Reusable Hose End | Steel | Pack of 10
4721-10S Aeroquip by Danfoss | Female 37° JIC Swivel 100R2 Skive Style Reusable Hose Fitting | -10 Female 37° JIC Swivel x -10 Reusable Hose End | Steel | Pack of 10
4721-10S Aeroquip by Danfoss | Female 37° JIC Swivel 100R2 Skive Style Reusable Hose Fitting | -10 Female 37° JIC Swivel x -10 Reusable Hose End | Steel

4721-10S Aeroquip by Danfoss | Female 37° JIC Swivel 100R2 Skive Style Reusable Hose Fitting | -10 Female 37° JIC Swivel x -10 Reusable Hose End | Steel | Pack of 10

Minimum Order Quantity: 10 Units

$579.00 - $579.00
$579.00
$579.00 - $579.00
$579.00

Aeroquip® by Danfoss
100R2 Skive Style Reusable Hose Fitting - Female 37° JIC Swivel - Straight

(Formerly Eaton Aeroquip)
Specifications for Variant SKU: 4721-10S Danfoss | 10 |
Shape (Orientation): Straight
Ends Configuration: 5/8in Female JIC, 5/8in Reusable Hose End
Material(s): Steel
Special Properties: Swivel
Compatible with the following Series: 2766 Series  |   2781 Series  |   FC195 Series
Technical Info:
Note:
  • For use with hose: 2766.
  • Also for use with 2781 and FC195 ONLY at SAE 100R2 pressures.
Steel
Part Number 		Hose Size Thread A D EØ
4721-4-4S -04 7/16-20 2.64" 1.41" 0.17"
4721-5-4S -04 1-1/2-20 2.72" 1.49" 0.17"
4721-6-4S -04 9/16-18 2.79" 1.56" 0.17"
4721-6-6S -06 9/16-18 2.98" 1.51" 0.26"
4721-8-6S -06 3/4-16 3.11" 1.63" 0.31"
4721-8-8S -08 3/4-16 3.20" 1.68" 0.39"
4721-10-8S -08 7/8-14 3.31" 1.80" 0.39"
4721-12-8S -08 1-1/16-12 3.40" 1.89" 0.39"
4721-10S -10 7/8-14 3.40" 1.85" 0.50"
4721-12-10S -10 1-1/16-12 3.50" 1.94" 0.50"
4721-14-12S -12 1-3/16-12 3.94" 2.06" 0.61"
4721-16S -16 1-5/16-12 4.48" 2.43" 0.82"
4721-20S -20 1-5/8-12 5.10" 2.78" 1.05"
4721-24S -24 1-7/8-12 5.16" 2.93" 1.28"
4721-32S -32 2-1/2-12 5.90" 3.47" 1.75"

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
