4721-12-10S Aeroquip by Danfoss | Female 37° JIC Swivel 100R2 Skive Style Reusable Hose Fitting | -12 Female 37° JIC Swivel x -10 Reusable Hose End | Steel
4721-12-10S Aeroquip by Danfoss | Female 37° JIC Swivel 100R2 Skive Style Reusable Hose Fitting | -12 Female 37° JIC Swivel x -10 Reusable Hose End | Steel
4721-12-10S Aeroquip by Danfoss | Female 37° JIC Swivel 100R2 Skive Style Reusable Hose Fitting | -12 Female 37° JIC Swivel x -10 Reusable Hose End | Steel
4721-12-10S Aeroquip by Danfoss | Female 37° JIC Swivel 100R2 Skive Style Reusable Hose Fitting | -12 Female 37° JIC Swivel x -10 Reusable Hose End | Steel

4721-12-10S Aeroquip by Danfoss | Female 37° JIC Swivel 100R2 Skive Style Reusable Hose Fitting | -12 Female 37° JIC Swivel x -10 Reusable Hose End | Steel

$91.47 - $91.47
$91.47
$91.47 - $91.47
$91.47

Aeroquip® by Danfoss

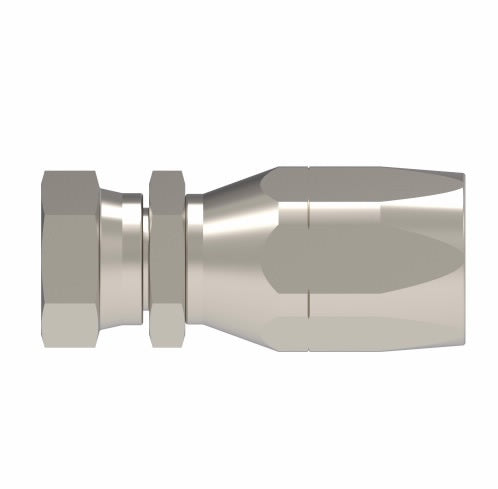

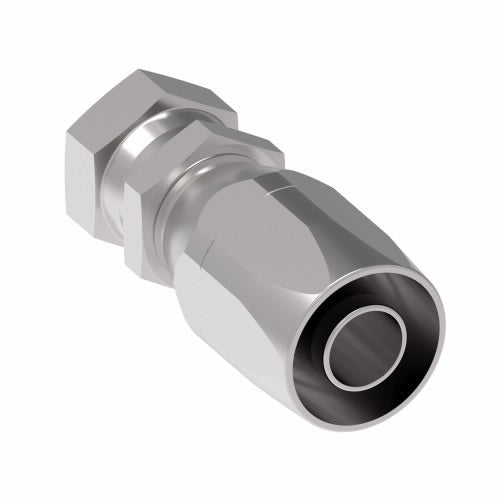

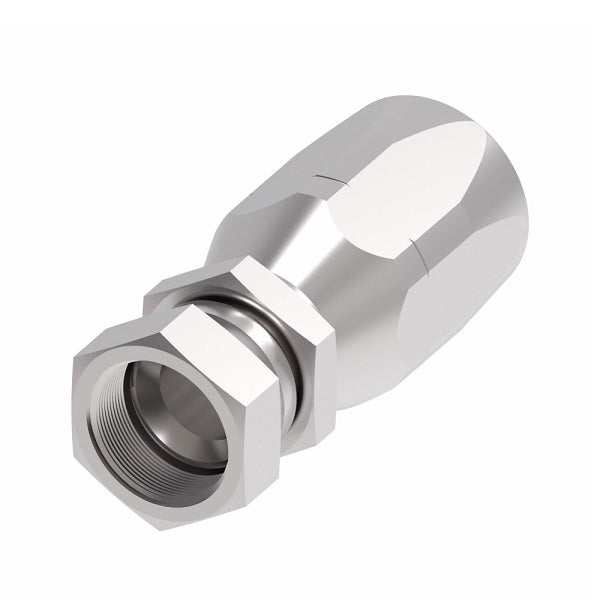

100R2 Skive Style Reusable Hose Fitting - Female 37° JIC Swivel - Straight

(Formerly Eaton Aeroquip)
Specifications for Variant SKU: 4721-12-10S Danfoss
Shape (Orientation): Straight
Ends Configuration: 3/4in Female JIC, 5/8in Reusable Hose End
Material(s): Steel
Special Properties: Swivel
Compatible with the following Series: 2766 Series  |   2781 Series  |   FC195 Series
Technical Info:
Note:
  • For use with hose: 2766.
  • Also for use with 2781 and FC195 ONLY at SAE 100R2 pressures.
Steel
Part Number 		Hose Size Thread A D EØ
4721-4-4S -04 7/16-20 2.64" 1.41" 0.17"
4721-5-4S -04 1-1/2-20 2.72" 1.49" 0.17"
4721-6-4S -04 9/16-18 2.79" 1.56" 0.17"
4721-6-6S -06 9/16-18 2.98" 1.51" 0.26"
4721-8-6S -06 3/4-16 3.11" 1.63" 0.31"
4721-8-8S -08 3/4-16 3.20" 1.68" 0.39"
4721-10-8S -08 7/8-14 3.31" 1.80" 0.39"
4721-12-8S -08 1-1/16-12 3.40" 1.89" 0.39"
4721-10S -10 7/8-14 3.40" 1.85" 0.50"
4721-12-10S -10 1-1/16-12 3.50" 1.94" 0.50"
4721-14-12S -12 1-3/16-12 3.94" 2.06" 0.61"
4721-16S -16 1-5/16-12 4.48" 2.43" 0.82"
4721-20S -20 1-5/8-12 5.10" 2.78" 1.05"
4721-24S -24 1-7/8-12 5.16" 2.93" 1.28"
4721-32S -32 2-1/2-12 5.90" 3.47" 1.75"
