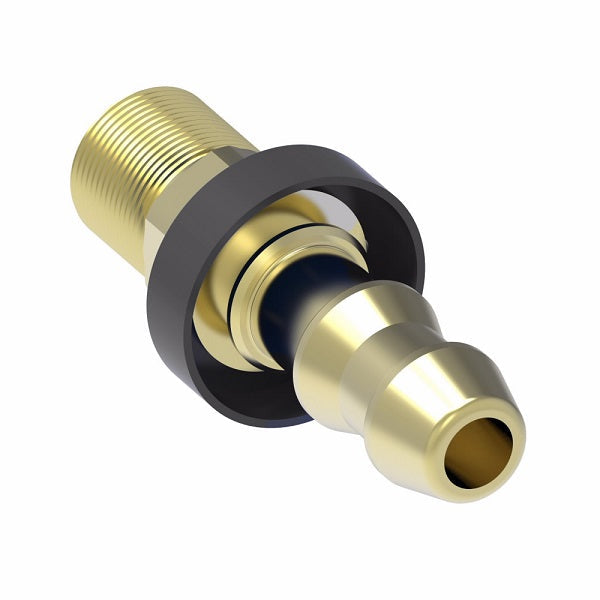

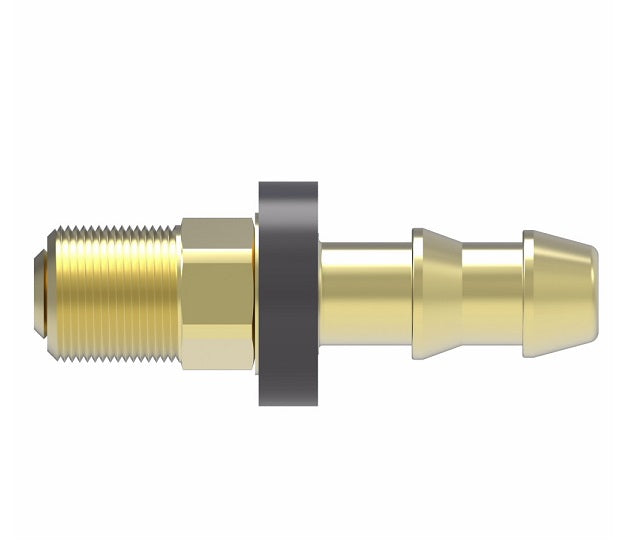

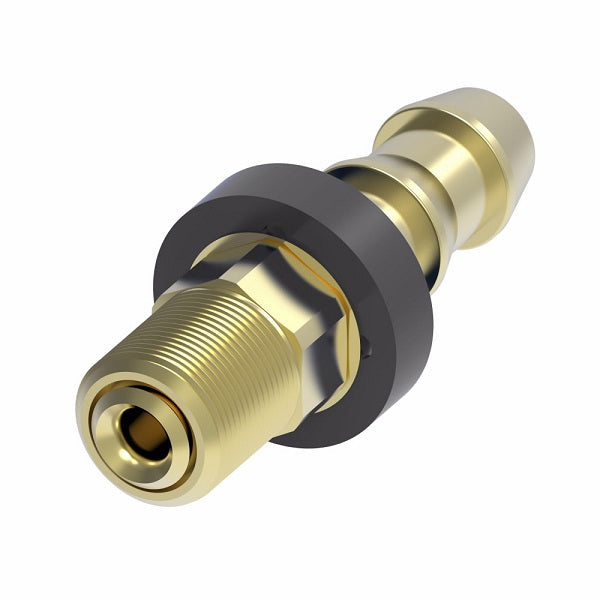

4740-3-4B Aeroquip by Danfoss | Male SAE 45° Inverted Flare Socketless Reusable Hose Fitting | -03 Male SAE 45° Inverted Flare x -04 Push-On Hose Barb | Brass

4740-3-4B Aeroquip by Danfoss | Male SAE 45° Inverted Flare Socketless Reusable Hose Fitting | -03 Male SAE 45° Inverted Flare x -04 Push-On Hose Barb | Brass

Name: 4740-3-4B Aeroquip by Danfoss | Male SAE 45° Inverted Flare Socketless Reusable Hose Fitting | -03 Male SAE 45° Inverted Flare x -04 Push-On Hose Barb | Brass
Brand: Danfoss/Eaton
SKU: 4740-3-4B Danfoss
Price: 9.16 USD
Availability: InStock

$9.16 - $9.16

$9.16

$9.16 - $9.16

$9.16

Aeroquip® by Danfoss
Socketless (Push-On Hose Barb) Reusable Hose Fitting - Male SAE 45° Inverted Flare - Straight

(Formerly Eaton Aeroquip)

Quantity

Specifications for Variant SKU: 4740-3-4B Danfoss
Shape (Orientation):	Straight
Ends Configuration:	3/16in Male Inverted Flare, 1/4in Push-On Hose Barb
Material(s):	Brass
Compatible with the following Series:	2556 Series \| 2565 Series \| FC332 Series \| FC647 Series \| H201 Series

Technical Info:
Reusable Fitting Socket Data.PDF


Brass Part Number	Hose Size	Thread	A	D	EØ
4740-3-4B	-04	3/8-24	1.52"	0.78"	0.13"
4740-4B	-04	7/16-24	1.55"	0.80"	0.17"
4740-6B	-06	5/8-18	1.75"	0.89"	0.30"
4740-8B	-08	3/4-18	1.99"	0.97"	0.39"
4740-10B	-10	7/8-18	2.58"	1.04"	0.48"

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.

Shop Parts by Danfoss (Eaton - Aeroquip)
